9A0624 Series

DC Fans DC Axial Fan, 60x60x25mm, 24VDC

Manufacturer: Sanyo Denki America Inc.

Catalog

DC Fans DC Axial Fan, 60x60x25mm, 24VDC

Catalog

DC Fans DC Axial Fan, 60x60x25mm, 24VDC

Part	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Weight	Weight	Fan Type	Features	Static Pressure	Static Pressure	Termination	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Width [y]	Voltage - Rated	Approval Agency	Noise	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]

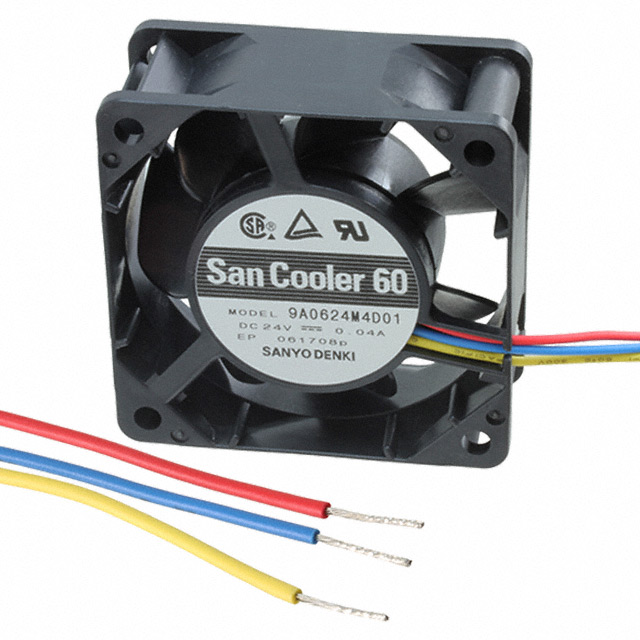

Sanyo Denki America Inc. 9A0624M4D01	Plastic	27.6 VDC	14	Plastic	40000 Hrs	40 mA	12.7 CFM	0.356 mł/min	-20 ░C	70 °C	2600 RPM	0.176 lb	80 g	Tubeaxial	Locked Rotor Sensor	19.6 Pa	0.079 in H2O	3 Wire Leads	60 mm	60 mm	Ball	25 mm	24 VDC	CSA TUV UL	28 dB	960 mW
Sanyo Denki America Inc. 9A0624G4021	Plastic	27.6 VDC	12	Plastic			27.6 CFM	0.773 mł/min	-20 ░C	60 °C	5600 RPM	0.176 lb	80 g	Tubeaxial		87.3 Pa	0.351 in H2O	2 Wire Leads	60 mm	60 mm	Ball	25 mm	24 VDC	CSA TUV UL	39 dB(A)	3.12 W	60 °C	-4 °F
Sanyo Denki America Inc. 9A0624S401	Plastic	27.6 VDC	12	Plastic	40000 Hrs		23 CFM	0.644 m³/min	-20 ░C	70 °C	4600 RPM	0.176 lb	80 g	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	56.8 Pa	0.228 in H2O	3 Wire Leads	60 mm	60 mm	Ball	25 mm	24 VDC	CSA TUV UL	33 dB(A)	1.92 W
Sanyo Denki America Inc. 9A0624H4011	Plastic	27.6 VDC	12	Plastic	40000 Hrs	60 mA	18.7 CFM	0.524 mł/min	-20 ░C	70 °C	3800 RPM	0.176 lb	80 g	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)			3 Wire Leads	60 mm	60 mm	Ball	25 mm	24 VDC	CSA TUV UL	28 dB	1.44 W
Sanyo Denki America Inc. 9A0624S4021	Plastic	27.6 VDC	12	Plastic	40000 Hrs		23 CFM	0.644 m³/min	-20 ░C	70 °C	4600 RPM	0.176 lb	80 g	Tubeaxial		56.8 Pa	0.228 in H2O	2 Wire Leads	60 mm	60 mm	Ball	25 mm	24 VDC	CSA TUV UL	33 dB(A)	1.92 W
Sanyo Denki America Inc. 9A0624H4D01	Plastic	27.6 VDC	12	Plastic	40000 Hrs	60 mA	18.7 CFM	0.524 mł/min	-20 ░C	70 °C	3800 RPM	0.176 lb	80 g	Tubeaxial	Locked Rotor Sensor			3 Wire Leads	60 mm	60 mm	Ball	25 mm	24 VDC	CSA TUV UL	28 dB	1.44 W
Sanyo Denki America Inc. 9A0624F402	Plastic	27.6 VDC	12	Plastic	40000 Hrs	50 mA	15.5 CFM	0.434 m³/min	-20 ░C	70 °C	3200 RPM	0.176 lb	80 g	Tubeaxial		29.4 Pa	0.118 in H2O	2 Wire Leads	60 mm	60 mm	Ball	25 mm	24 VDC	CSA TUV UL	24 dB	1.2 W
Sanyo Denki America Inc. 9A0624M402	Plastic	27.6 VDC	14	Plastic	40000 Hrs	40 mA			-20 ░C	70 °C	2600 RPM	0.176 lb	80 g	Tubeaxial		19.6 Pa	0.079 in H2O	2 Wire Leads	60 mm	60 mm	Ball	25 mm	24 VDC	CSA TUV UL	20 dB	960 mW

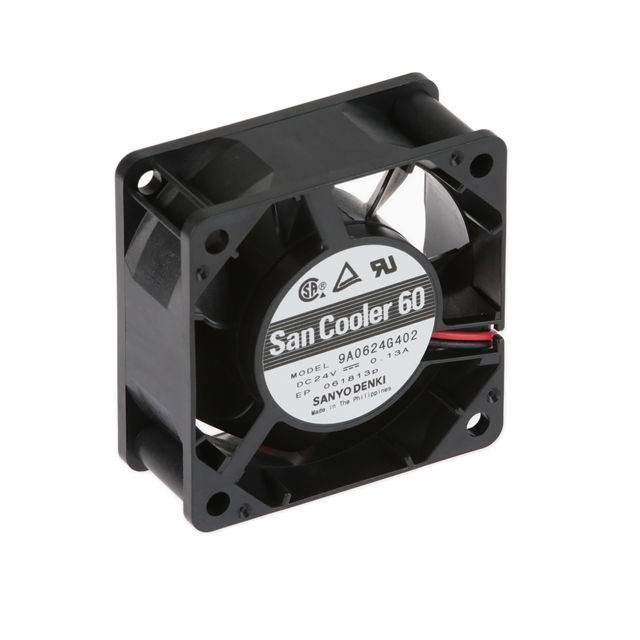

Sanyo Denki America Inc. 9A0624G402	Plastic	27.6 VDC	12	Plastic			27.6 CFM	0.773 mł/min	-20 ░C	60 °C	5600 RPM	0.176 lb	80 g	Tubeaxial		87.3 Pa	0.351 in H2O	2 Wire Leads	60 mm	60 mm	Ball	25 mm	24 VDC	CSA TUV UL	39 dB(A)	3.12 W	60 °C	-4 °F
Sanyo Denki America Inc. 9A0624M401	Plastic	27.6 VDC	14	Plastic	40000 Hrs	40 mA	12.7 CFM	0.356 mł/min	-20 ░C	70 °C	2600 RPM	0.176 lb	80 g	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	19.6 Pa	0.079 in H2O	3 Wire Leads	60 mm	60 mm	Ball	25 mm	24 VDC	CSA TUV UL	20 dB	960 mW
