M2113JC Series

Catalog

SWITCH ROCKER SPDT 6A 125V

Part	Electrical Life	Mechanical Life	Actuator Type	Actuator Marking	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Circuit	Color - Actuator/Cap	Illumination Voltage (Nominal)	Switch Function	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Approval Agency	Current Rating (Amps)	Illumination Type, Color	Termination Style
NKK Switches M2113JCFW01-G	25000 Steps	50000 Cycles	Paddle - Illuminated	No Marking	15.9 mm	13.1 mm	125 V	SPDT	Black	2 VDC 2.2 VDC	On-Off-On	30 V	-25 °C	70 °C	Panel Mount Snap-In	CSA UL	3 A 6 A	Green/Red LED	Solder Lug
NKK Switches M2113JCFW01-A	25000 Steps	50000 Cycles	Paddle - Illuminated	No Marking	15.9 mm	13.1 mm	125 V	SPDT	Black	2 VDC 2.2 VDC	On-Off-On	30 V	-25 °C	70 °C	Panel Mount Snap-In	CSA UL	3 A 6 A	Green/Red LED	Solder Lug

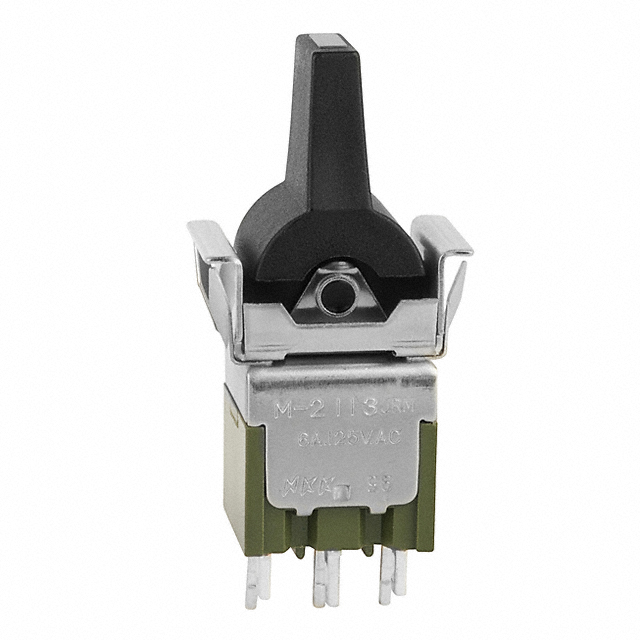

NKK Switches M2113JCFW01	25000 Steps	50000 Cycles	Paddle - Illuminated	No Marking	15.9 mm	13.1 mm	125 V	SPDT	Black	2 VDC 2.2 VDC	On-Off-On	30 V	-25 °C	70 °C	Panel Mount Snap-In	CSA UL	3 A 6 A	Green/Red LED	Solder Lug
