2RS2 Series

Manufacturer: Adam Tech

Catalog

CONN SOCKET STRIP RCP 10 POS 2MM SOLDER ST THRU-HOLE

Part	Insulation Material	Contact Material	Applications	Contact Shape	Contact Finish Thickness - Post	Contact Finish - Post	Contact Type	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post	Fastening Type	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Voltage Rating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish - Mating	Mounting Type	Termination	Material Flammability Rating	Insulation Color

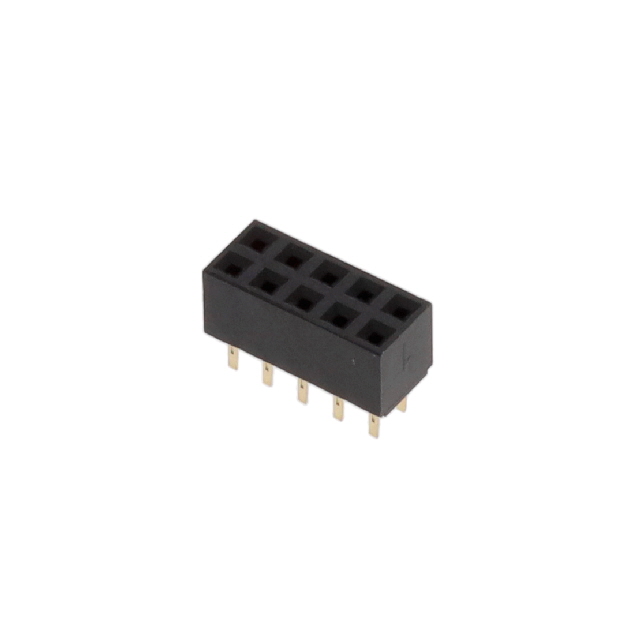

Adam Tech 2RS2-10-G	Nylon Polyamide (PA)	Phosphor Bronze	General Purpose	Square	Flash	Gold	Female Socket	4.3 mm	0.169 "	0.091 "	2.3 mm	Push-Pull	Receptacle	2 mm	0.079 in	-40 C	105 ░C	2	0.079 "	2 mm	All	250 VAC	10	Flash	Gold	Through Hole	Solder	UL94 V-0	Black

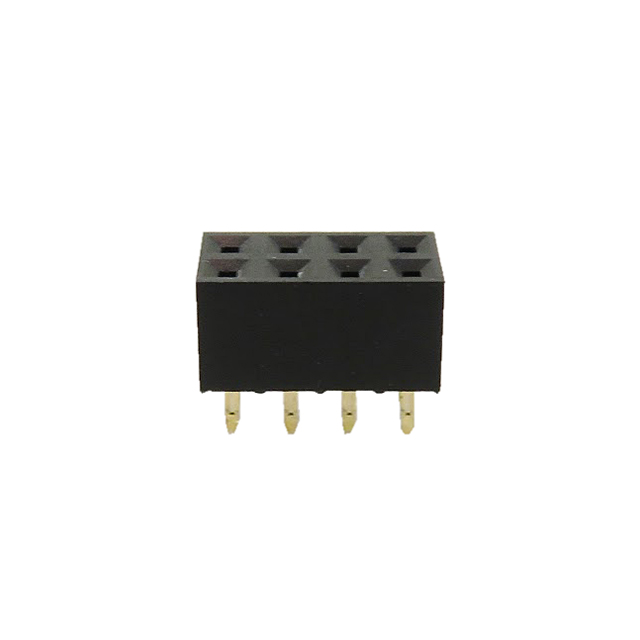

Adam Tech 2RS2-08-G	Nylon Polyamide (PA)	Phosphor Bronze	General Purpose	Square	Flash	Gold	Female Socket	4.3 mm	0.169 "	0.091 "	2.3 mm	Push-Pull	Receptacle	2 mm	0.079 in	-40 C	105 ░C	2	0.079 "	2 mm	All	250 VAC	8	Flash	Gold	Through Hole	Solder	UL94 V-0	Black

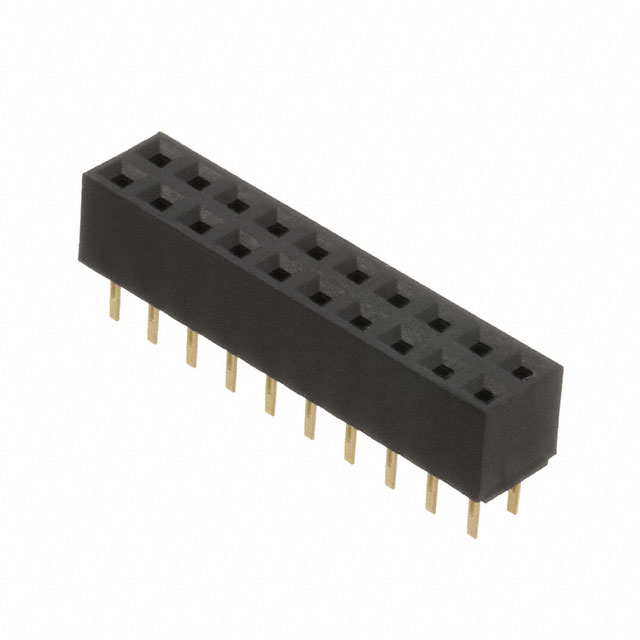

Adam Tech 2RS2-20-G	Nylon Polyamide (PA)	Phosphor Bronze	General Purpose	Square	Flash	Gold	Female Socket	4.3 mm	0.169 "	0.091 "	2.3 mm	Push-Pull	Receptacle	2 mm	0.079 in	-40 C	105 ░C	2	0.079 "	2 mm	All	250 VAC	20	Flash	Gold	Through Hole	Solder	UL94 V-0	Black

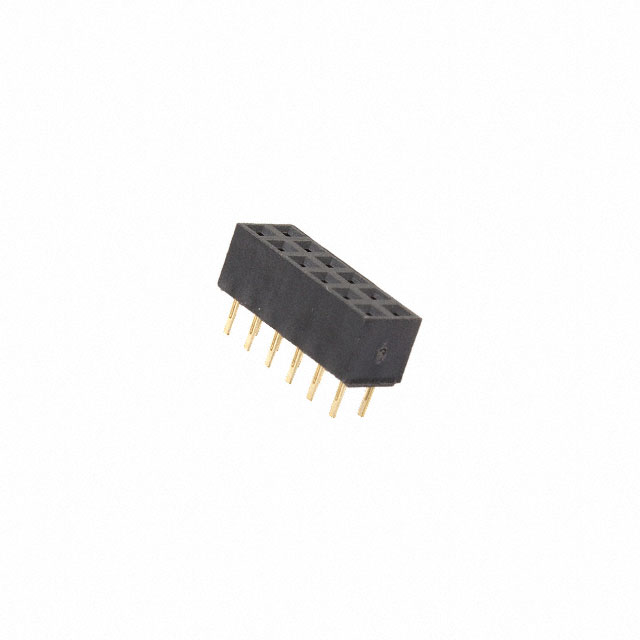

Adam Tech 2RS2-12-G	Nylon Polyamide (PA)	Phosphor Bronze	General Purpose	Square	Flash	Gold	Female Socket	4.3 mm	0.169 "	0.091 "	2.3 mm	Push-Pull	Receptacle	2 mm	0.079 in	-40 C	105 ░C	2	0.079 "	2 mm	All	250 VAC	12	Flash	Gold	Through Hole	Solder	UL94 V-0	Black

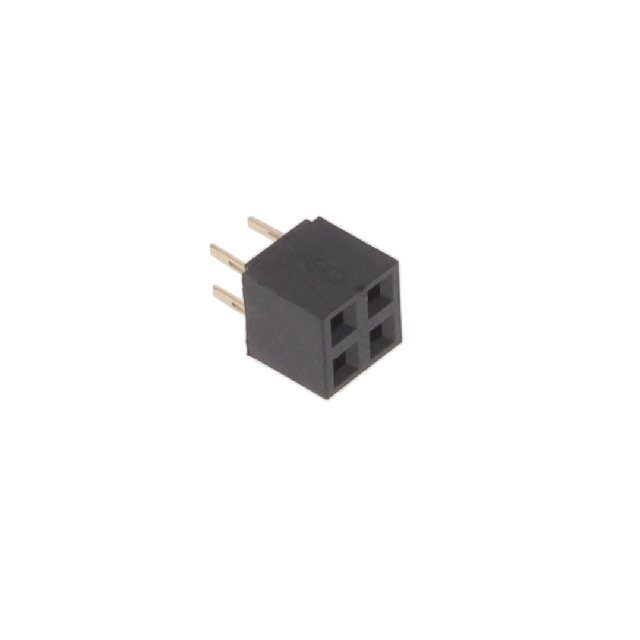

Adam Tech 2RS2-04-G	Nylon Polyamide (PA)	Phosphor Bronze	General Purpose	Square	Flash	Gold	Female Socket	4.3 mm	0.169 "	0.091 "	2.3 mm	Push-Pull	Receptacle	2 mm	0.079 in	-40 C	105 ░C	2	0.079 "	2 mm	All	250 VAC	4	Flash	Gold	Through Hole	Solder	UL94 V-0	Black
