MS272492 Series

Catalog

TURRET BOARD 20POS 0.375" SINGLE

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Contact Material	Type	Number of Rows [custom]	Pitch	Pitch	Number of Positions	Material - Board	Board Size [x]	Board Size [x]	Board Size [y]	Board Size [z]	Board Size [z]	Board Size [y]	Terminal Type	Row Spacing	Row Spacing
Keystone Electronics MS272492E2	0.12 in	3.05 mm	Tin	Brass	Turret Board Scored	2	9.53 mm	0.375 in	20	Glass Epoxy	5.25 in	133.35 mm	38.1 mm	3.18 mm	0.125 in	1.5 "	Double Turret Single End Turret	1 "	25.4 mm
Keystone Electronics MS272492B5	0.12 in	3.05 mm	Tin	Brass	Turret Board Scored	2	9.53 mm	0.375 in	50	Glass Epoxy	13.125 in	333.38 mm	38.1 mm	3.18 mm	0.125 in	1.5 "	Double Turret Single End Turret	1 "	25.4 mm

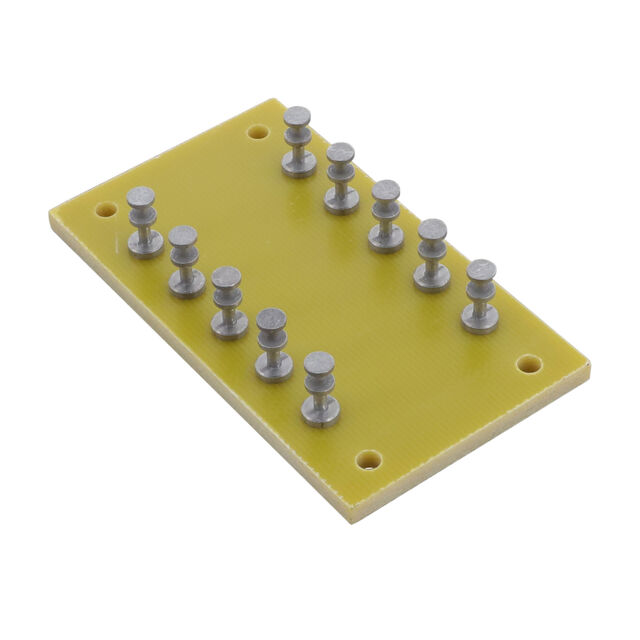

Keystone Electronics MS272492B1	0.12 in	3.05 mm	Tin	Brass	Turret Board	2	9.53 mm	0.375 in	10	Glass Epoxy	2.625 in	66.7 mm	38.1 mm	3.18 mm	0.125 in	1.5 "	Double Turret Single End Turret	1 "	25.4 mm
Keystone Electronics MS272492B2	0.12 in	3.05 mm	Tin	Brass	Turret Board Scored	2	9.53 mm	0.375 in	20	Glass Epoxy	5.25 in	133.35 mm	38.1 mm	3.18 mm	0.125 in	1.5 "	Double Turret Single End Turret	1 "	25.4 mm
Keystone Electronics MS272492B3	0.12 in	3.05 mm	Tin	Brass	Turret Board Scored	2	9.53 mm	0.375 in	30	Glass Epoxy	7.785 in	200.03 mm	38.1 mm	2.36 mm	0.093 "	1.5 "	Double Turret Single End Turret	1 "	25.4 mm
Keystone Electronics MS272492E5	0.12 in	3.05 mm	Tin	Brass	Turret Board Scored	2	9.53 mm	0.375 in	50	Glass Epoxy	13.125 in	333.38 mm	38.1 mm	3.18 mm	0.125 in	1.5 "	Double Turret Single End Turret	1 "	25.4 mm
Keystone Electronics MS272492E3	0.12 in	3.05 mm	Tin	Brass	Turret Board Scored	2	9.53 mm	0.375 in	30	Glass Epoxy	7.785 in	200.03 mm	38.1 mm	2.36 mm	0.093 "	1.5 "	Double Turret Single End Turret	1 "	25.4 mm
Keystone Electronics MS272492E1	0.12 in	3.05 mm	Tin	Brass	Turret Board	2	9.53 mm	0.375 in	10	Glass Epoxy	2.625 in	66.7 mm	38.1 mm	3.18 mm	0.125 in	1.5 "	Double Turret Single End Turret	1 "	25.4 mm
