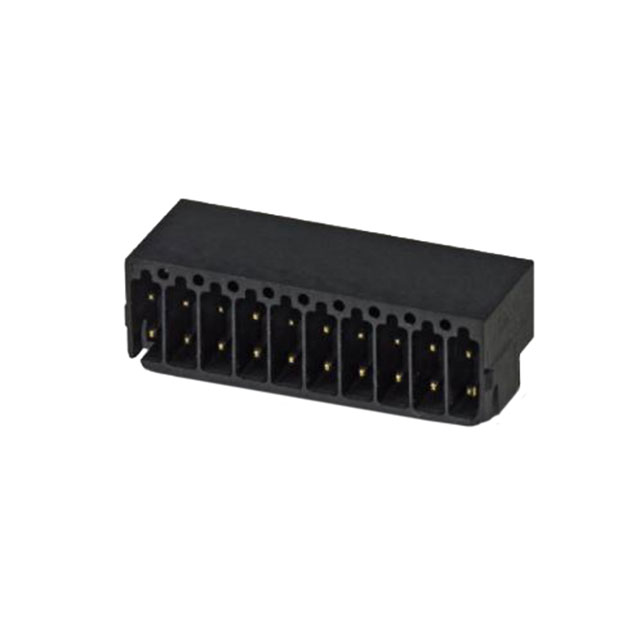

DMC Series

Pluggable Terminal Blocks 18 Pos 3.5mm Dbl Row Through Hole Header

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 18 Pos 3.5mm Dbl Row Through Hole Header

Catalog

Pluggable Terminal Blocks 18 Pos 3.5mm Dbl Row Through Hole Header

Part	Contact Tail Length	Contact Tail Length	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Housing Material	Current - IEC	Voltage - IEC	Termination Style	Color	Voltage - UL	Number of Positions	Header Orientation	Contact Mating Finish	Pitch	Pitch	Number of Levels	Type	Mounting Type	Current - UL	Positions Per Level	Features	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]

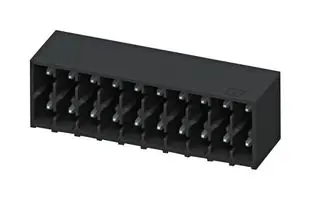

Phoenix Contact 1786895	2 mm	0.079 in	10.8 mm	0.425 in	UL94 V-0	Liquid Crystal Polymer (LCP)	8 A	250 V	Solder	Black	150 V	16	90° Right Angle	Tin	3.5 mm	0.138 "	2	Header Male Pins Shrouded (4 Side)	Through Hole	8 A	8

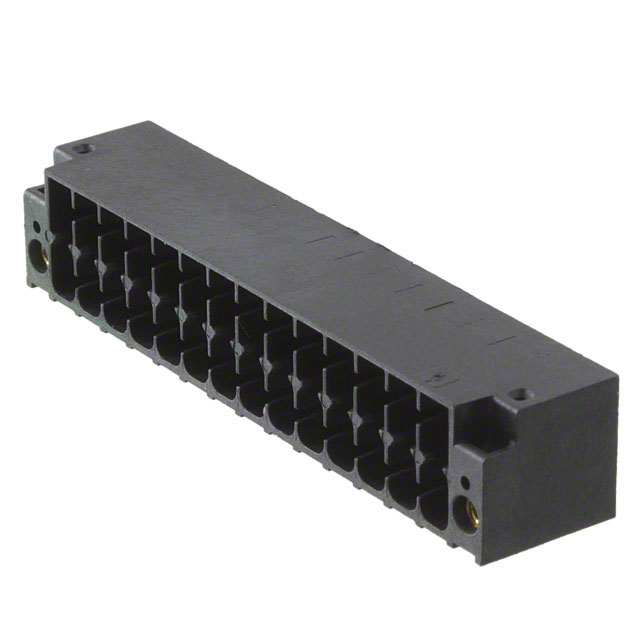

Phoenix Contact 1787137	2 mm	0.079 in	10.8 mm	0.425 in	UL94 V-0	Liquid Crystal Polymer (LCP)	8 A	250 V	Solder	Black	150 V	28	90° Right Angle	Tin	3.5 mm	0.138 "	2	Header Male Pins Shrouded (4 Side)	Through Hole	8 A	14	Mating and Mounting Flange
Phoenix Contact 1845153							6 A	160 V	Solder	Black	150 V	30	90° Right Angle	Gold	2.54 mm	0.1 "	2	Header Male Pins Shrouded (4 Side)	Surface Mount	6 A	15	Solder Retention

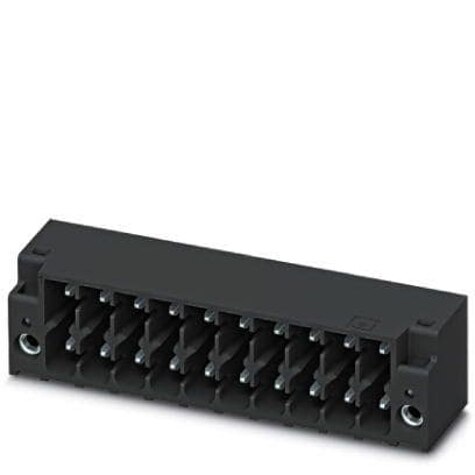

Phoenix Contact 1787179	2 mm	0.079 in	10.8 mm	0.425 in	UL94 V-0	Liquid Crystal Polymer (LCP)	8 A	250 V	Solder	Black	150 V	36	90° Right Angle	Tin	3.5 mm	0.138 "	2	Header Male Pins Shrouded (4 Side)	Through Hole	8 A	18	Mating and Mounting Flange
Phoenix Contact 1874069	2.6 mm	0.102 in	10.8 mm	0.425 in	UL94 V-0	Liquid Crystal Polymer (LCP)	8 A	160 V	Solder	Black	300 V	24	90° Right Angle	Tin	3.5 mm	0.138 "	2	Header Male Pins Shrouded (4 Side)	Through Hole	8 A	12	Flange	Copper Alloy	-40 C	100 °C
Phoenix Contact 1845056							6 A	160 V	Solder	Black	150 V	10	90° Right Angle	Gold	2.54 mm	0.1 "	2	Header Male Pins Shrouded (4 Side)	Surface Mount	6 A	5	Solder Retention
Phoenix Contact 1844730							6 A	160 V	Solder	Black	150 V	6	90° Right Angle	Gold	2.54 mm	0.1 "	2	Header Male Pins Shrouded (4 Side)	Through Hole	6 A	3	Solder Retention

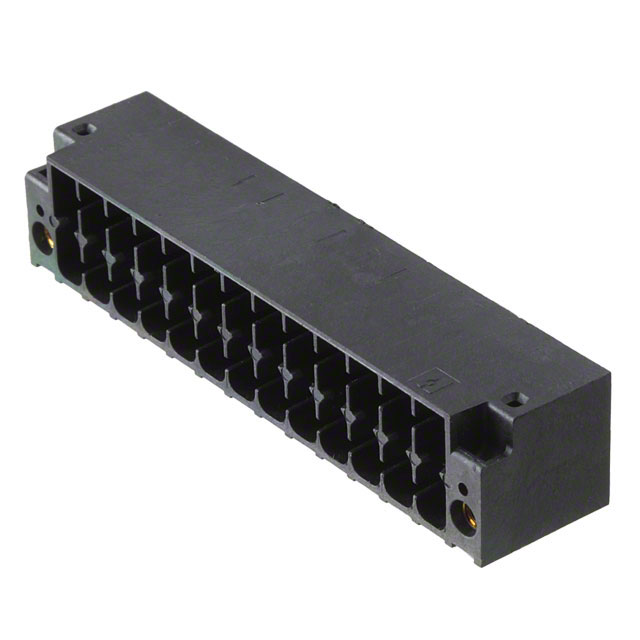

Phoenix Contact 1787124	2 mm	0.079 in	10.8 mm	0.425 in	UL94 V-0	Liquid Crystal Polymer (LCP)	8 A	250 V	Solder	Black	150 V	26	90° Right Angle	Tin	3.5 mm	0.138 "	2	Header Male Pins Shrouded (4 Side)	Through Hole	8 A	13	Mating and Mounting Flange
Phoenix Contact 1874519							8 A	160 V	Solder	Black	300 V	36	90° Right Angle	Tin	3.5 mm	0.138 "	2	Header Male Pins Shrouded (4 Side)	Through Hole	8 A	18	Flange		-40 C	100 °C

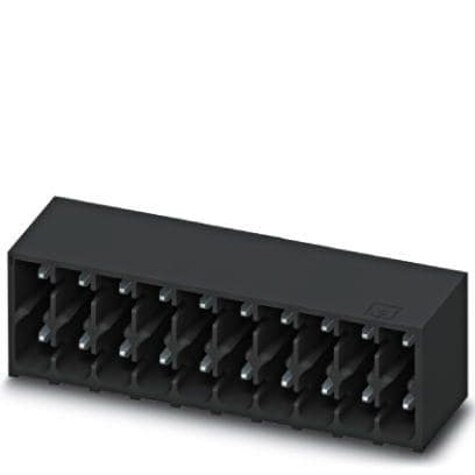

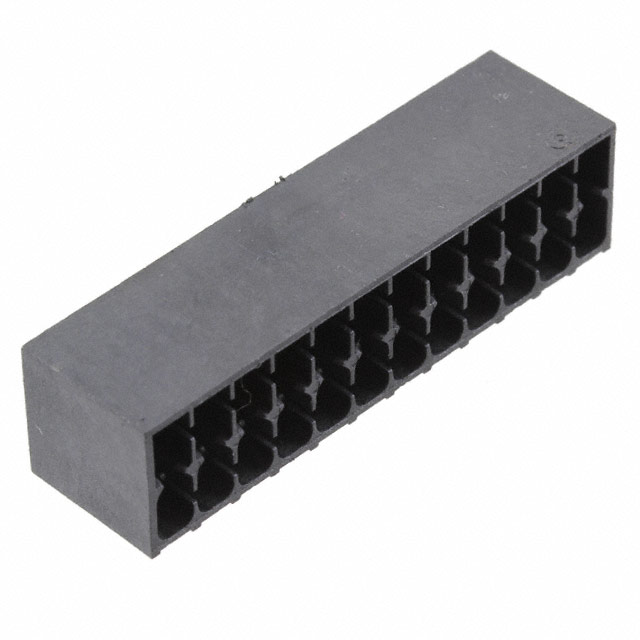

Phoenix Contact 1786934	2 mm	0.079 in	10.8 mm	0.425 in	UL94 V-0	Liquid Crystal Polymer (LCP)	8 A	250 V	Solder	Black	150 V	24	90° Right Angle	Tin	3.5 mm	0.138 "	2	Header Male Pins Shrouded (4 Side)	Through Hole	8 A	12
