TO Series
Manufacturer: Amphenol Anytek
Beta
⌘K
TERM BLOCK 2POS PCB
| Part | Mounting Type | Color | Number of Levels | Positions Per Level | Wire Termination | Features | Screw Thread | Operating Temperature [Min] | Operating Temperature [Max] | Current | Torque - Screw | Torque - Screw | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Screw Material - Plating | Pitch [x] | Pitch [x] | Voltage | Housing Material | Clamp Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Anytek | Through Hole | Green | 1 | 2 | Screw - Leaf Spring Wire Guard | ||||||||||||||||
Amphenol Anytek | Through Hole | Green | 1 | 18 | Screw - Rising Cage Clamp | Interlocking (Side) | M3 | -40 °C | 115 °C | 10 A | 0.4 Nm | 3.5 Lb-In | 26 AWG | 16 AWG | Horizontal with Board | Steel Zinc Plated | 5 mm | 0.197 in | 300 V | Thermoplastic | Brass - Nickel Plated |
Amphenol Anytek | Through Hole | Green | 1 | 14 | Screw - Rising Cage Clamp | Interlocking (Side) | M3 | -40 °C | 115 °C | 10 A | 0.4 Nm | 3.5 Lb-In | 26 AWG | 16 AWG | Horizontal with Board | Steel Zinc Plated | 5 mm | 0.197 in | 300 V | Thermoplastic | Brass - Nickel Plated |

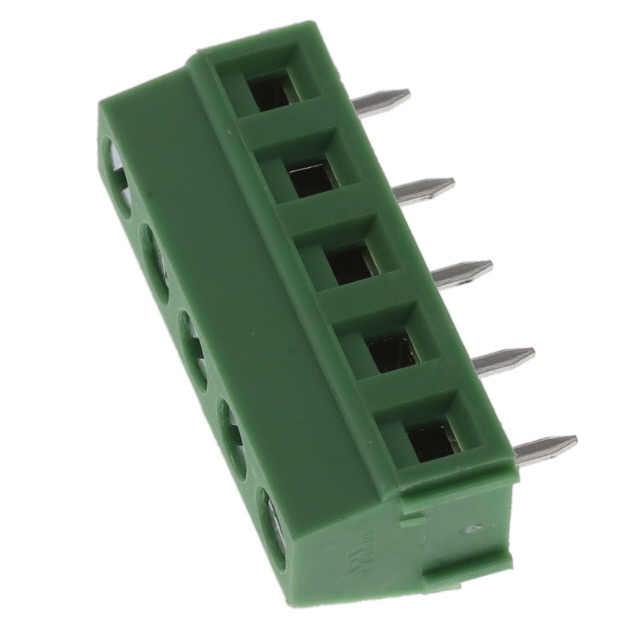

 Amphenol Anytek | Through Hole | Green | 1 | 5 | Screw - Rising Cage Clamp | Interlocking (Side) | M3 | -40 °C | 115 °C | 10 A | 0.4 Nm | 3.5 Lb-In | 26 AWG | 16 AWG | Horizontal with Board | Steel Zinc Plated | 5 mm | 0.197 in | 300 V | Thermoplastic | Brass - Nickel Plated |
Amphenol Anytek | Through Hole | Gray | 1 | 5 | Screw - Rising Cage Clamp | Interlocking (Side) | M3 | -40 °C | 115 °C | 10 A | 0.4 Nm | 3.5 Lb-In | 26 AWG | 16 AWG | Horizontal with Board | Steel Zinc Plated | 5 mm | 0.197 in | 300 V | Thermoplastic | Brass - Nickel Plated |
Amphenol Anytek | Through Hole | Green | 1 | 21 | Screw - Rising Cage Clamp | Interlocking (Side) | M3 | -40 °C | 115 °C | 10 A | 0.4 Nm | 3.5 Lb-In | 26 AWG | 16 AWG | Horizontal with Board | Steel Zinc Plated | 5 mm | 0.197 in | 300 V | Thermoplastic | Brass - Nickel Plated |

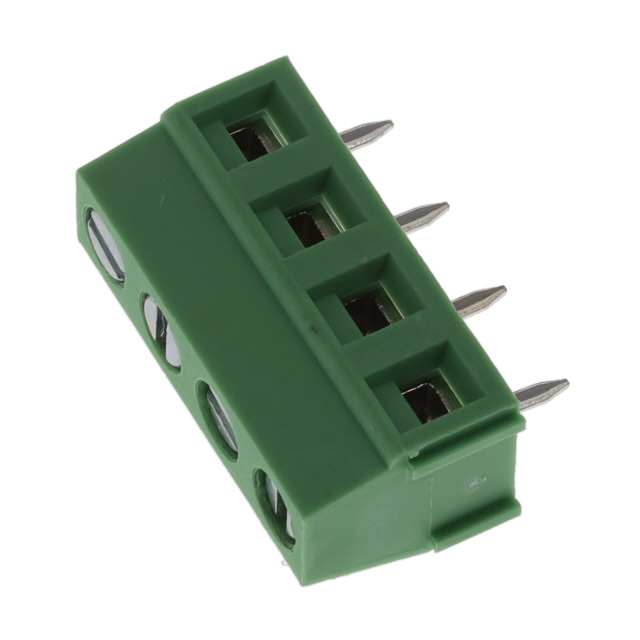

 Amphenol Anytek | Through Hole | Green | 1 | 4 | Screw - Rising Cage Clamp | Interlocking (Side) | M3 | -40 °C | 115 °C | 10 A | 0.4 Nm | 3.5 Lb-In | 26 AWG | 16 AWG | Horizontal with Board | Steel Zinc Plated | 5 mm | 0.197 in | 300 V | Thermoplastic | Brass - Nickel Plated |
Amphenol Anytek | Through Hole | Green | 1 | 22 | Screw - Rising Cage Clamp | Interlocking (Side) | M3 | -40 °C | 115 °C | 10 A | 0.4 Nm | 3.5 Lb-In | 26 AWG | 16 AWG | Horizontal with Board | Steel Zinc Plated | 5 mm | 0.197 in | 300 V | Thermoplastic | Brass - Nickel Plated |
Amphenol Anytek | Through Hole | Gray | 1 | 3 | Screw - Rising Cage Clamp | Interlocking (Side) | M3 | -40 °C | 115 °C | 10 A | 0.4 Nm | 3.5 Lb-In | 26 AWG | 16 AWG | Horizontal with Board | Steel Zinc Plated | 5 mm | 0.197 in | 300 V | Thermoplastic | Brass - Nickel Plated |
Amphenol Anytek | Through Hole | Green | 1 | Screw - Rising Cage Clamp | Interlocking (Side) | M3 | -40 °C | 115 °C | 10 A | 0.4 Nm | 3.5 Lb-In | 26 AWG | 16 AWG | Horizontal with Board | Steel Zinc Plated | 5 mm | 0.197 in | 300 V | Thermoplastic | Brass - Nickel Plated |
