1393670 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

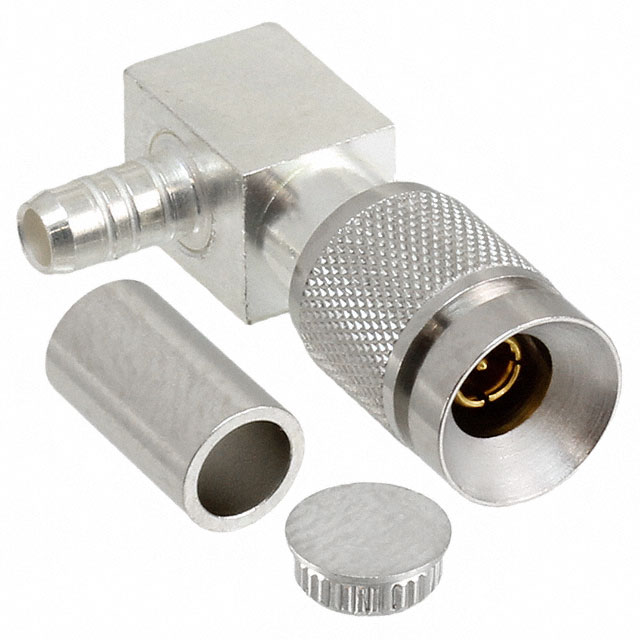

CONN 1.0/2.3 PLG R/A 75OHM SOLDR
| Part | Dielectric Material | Center Contact Plating | Mating Cycles | Impedance | Frequency - Max [Max] | Number of Ports | Connector Style | Shield Termination | Cable Group | Mounting Type | Center Contact Material | Contact Termination | Fastening Type | Connector Type | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Body Material | Voltage Rating | Mounting Feature | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Gold | 500 | 75 Ohms | 2 GHz | 1 | 1.0/2.3 | Crimp | 2YCY 0.45/2.0 | Free Hanging (In-Line) Right Angle | Brass | Solder | Push-Pull | Plug Male Pin | ||||||||

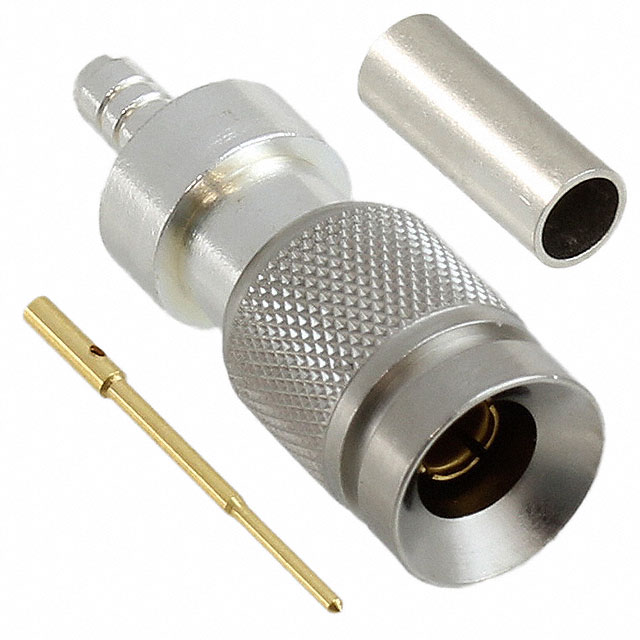

 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Gold | 500 | 75 Ohms | 2 GHz | 1 | 1.0/2.3 | Crimp | Free Hanging (In-Line) | Beryllium Copper | Crimp | Push-Pull | Plug Male Pin | 1 Connector 1 Contact 1 Ferrule | ||||||||
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Gold | 500 | 75 Ohms | 2 GHz | 1 | 1.0/2.3 | Crimp | RG-179B | Free Hanging (In-Line) | Beryllium Copper Brass | Solder | Push-Pull | Plug Male Pin | 1 Connector 1 Contact 1 Ferrule | |||||||
TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Gold | 75 Ohms | 10 GHz | 1 | 1.0/2.3 | Crimp | RG-174 | Free Hanging (In-Line) | Beryllium Copper | Solder | Latch Lock | Plug Male Pin | 85 °C | -40 C | Nickel | Brass | |||||
TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Gold | 500 | 75 Ohms | 2 GHz | 1 | 1.0/2.3 | Crimp | Free Hanging (In-Line) | Beryllium Copper | Crimp | Push-Pull | Plug Male Pin | 1 Connector 1 Contact 1 Ferrule | ||||||||
TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Gold | 500 | 75 Ohms | 2 GHz | 1 | 1.0/2.3 | Crimp | Free Hanging (In-Line) | Beryllium Copper | Crimp | Push-Pull | Plug Male Pin | 1 Connector 1 Contact 1 Ferrule | ||||||||
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Gold | 500 | 75 Ohms | 2 GHz | 1 | 1.0/2.3 | Crimp | 316 RG-179 | Free Hanging (In-Line) Right Angle | Brass | Solder | Push-Pull | Plug Male Pin | 350 VDC | |||||||
TE Connectivity AMP Connectors | 500 | 75 Ohms | 2 GHz | 1 | 1.0/2.3 | Crimp | Free Hanging (In-Line) | Crimp | Push-Pull | Plug Male Pin | 1 Connector 1 Contact 1 Ferrule | |||||||||||

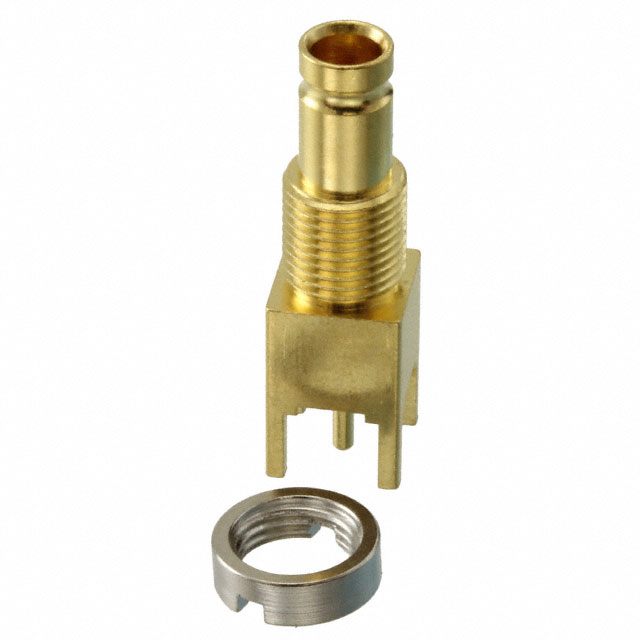

 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Gold | 500 | 75 Ohms | 2 GHz | 1 | 1.0/2.3 | Solder | Panel Mount Through Hole | Beryllium Copper Bronze | Solder | Push-Pull | Female Socket Jack | 1 Connector 1 Nut | Bulkhead - Front Side Nut | |||||||
TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Gold | 500 | 50 Ohms | 10 GHz | 1 | 1.0/2.3 | Crimp | RG-174 | Panel Mount | Beryllium Copper | Solder | Push-Pull | Female Socket Jack | 350 VDC | Bulkhead | 316 |
