171973 Series

Manufacturer: Molex

Catalog

2.54MM PITCH SL HEADER, SINGLE ROW, VERTICAL, LCP, SHROUDED, SURFACE MOUNT, 0.38ΜM SELECTIVE GOLD (AU) PLATING, 3 CIRCUITS, TAPE AND REEL

Part	Shrouding	Insulation Color	Number of Positions Loaded	Contact Shape	Contact Finish - Post	Mounting Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Type	Insulation Material	Contact Finish - Mating	Material Flammability Rating	Termination	Contact Length - Mating [x]	Contact Length - Mating [x]	Connector Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Number of Rows	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Positions	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]
Molex 1719730703	Shrouded - 4 Wall	Black	All	Square	Tin	Surface Mount	Board to Cable/Wire	0.38 µm	15 µin	Latch Holder	Male Pin	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Solder	0.24 in	6.1 mm	Header	0.1 "	2.54 mm	250 V	1	Keying Slot Pick and Place	-40 C	105 ░C	Brass	0.465 in	11.8 mm	3 A
Molex 1719730621	Shrouded - 4 Wall	Black	All	Square	Tin	Surface Mount	Board to Cable/Wire	1.52 Ám	60 µin	Latch Holder	Male Pin	Liquid Crystal Polymer (LCP)		UL94 V-0	Solder	0.24 in	6.1 mm	Header	0.1 "	2.54 mm	600 VAC	1	Pick and Place	-40 C	105 ░C	Brass	0.465 in	11.8 mm	3 A	21
Molex 1719730806	Shrouded - 4 Wall	Black	All	Square	Tin	Surface Mount	Board to Cable/Wire			Latch Holder	Male Pin	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Solder	0.24 in	6.1 mm	Header	0.1 "	2.54 mm	250 V	1	Keying Slot Pick and Place	-40 C	105 ░C	Brass	0.465 in	11.8 mm	3 A	6	29.5 µin	0.75 µm
Molex 1719730620	Shrouded - 4 Wall	Black	All	Square	Tin	Surface Mount	Board to Cable/Wire	2.54 çm	100 çin	Latch Holder	Male Pin	Liquid Crystal Polymer (LCP)		UL94 V-0	Solder	0.24 in	6.1 mm	Header	0.1 "	2.54 mm	250 V	1	Keying Slot Pick and Place	-40 C	105 ░C	Brass	0.465 in	11.8 mm	3 A	20

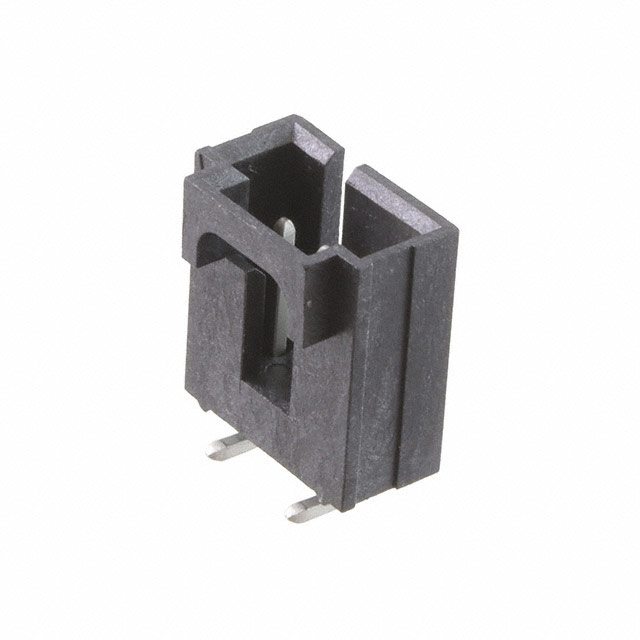

Molex 1719730003	Shrouded - 4 Wall	Black	All	Square	Tin	Surface Mount	Board to Cable/Wire	2.54 çm	100 çin	Latch Holder	Male Pin	Liquid Crystal Polymer (LCP)		UL94 V-0	Solder	0.24 in	6.1 mm	Header	0.1 "	2.54 mm	250 V	1	Polarizing Key	-40 C	105 ░C	Brass	0.465 in	11.8 mm	3 A				General Purpose	2.54 µm	100 µin
Molex 1719730809	Shrouded - 4 Wall	Black	All	Square	Tin	Surface Mount	Board to Cable/Wire			Latch Holder	Male Pin	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Solder	0.24 in	6.1 mm	Header	0.1 "	2.54 mm	250 V	1	Keying Slot Pick and Place	-40 C	105 ░C	Brass	0.465 in	11.8 mm	3 A	9	29.5 µin	0.75 µm
Molex 1719730712	Shrouded - 4 Wall	Black	All	Square	Tin	Surface Mount	Board to Cable/Wire	0.38 µm	15 µin	Latch Holder	Male Pin	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Solder	0.24 in	6.1 mm	Header	0.1 "	2.54 mm	250 V	1	Keying Slot Pick and Place	-40 C	105 ░C	Brass	0.465 in	11.8 mm	3 A	12
Molex 1719730823	Shrouded - 4 Wall	Black	All	Square	Tin	Surface Mount	Board to Cable/Wire	0.76 Ám	30 Áin	Latch Holder	Male Pin	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Solder	0.24 in	6.1 mm	Header	0.1 "	2.54 mm	600 VAC	1	Pick and Place	-40 C	105 ░C	Brass	0.465 in	11.8 mm	3 A	23

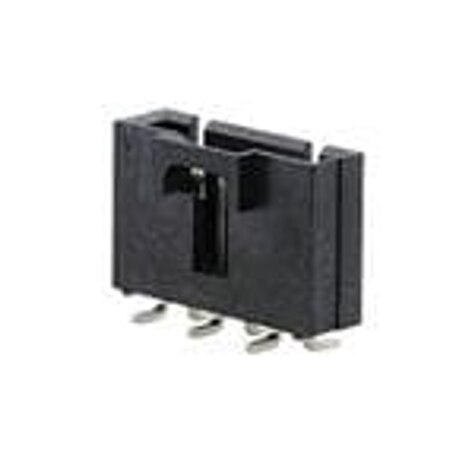

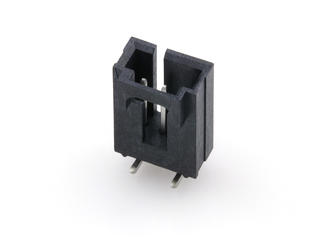

Molex 1719730603	Shrouded - 4 Wall	Black	All	Square	Tin	Surface Mount	Board to Cable/Wire	2.54 çm	100 çin	Latch Holder	Male Pin	Liquid Crystal Polymer (LCP)		UL94 V-0	Solder	0.24 in	6.1 mm	Header	0.1 "	2.54 mm	250 V	1	Polarizing Key	-40 C	105 ░C	Brass	0.465 in	11.8 mm	3 A				General Purpose	2.54 µm	100 µin
Molex 1719730208	Shrouded - 4 Wall	Black	All	Circular	Tin	Surface Mount	Board to Cable/Wire			Latch Holder	Male Pin	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Solder	0.24 in	6.1 mm	Header	0.1 "	2.54 mm	250 V	1		-40 C	105 ░C	Brass	0.465 in	11.8 mm	3 A	8	29.5 µin	0.75 µm				78.7 µin	2 µm
