PDS1-S5 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 24V 1W
| Part | Mounting Type | Voltage - Isolation | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Number of Outputs | Voltage - Input (Max) [Max] | Type | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Applications | Features | Package / Case | Standard Number | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Through Hole | 1.5 kV | 24 V | 105 C | -40 °C | CB Scheme EN IEC UL | 1 | 5.5 V | Isolated Module | 42 mA | 4.5 V | 10.2 mm | 6 mm | 0.24 " | 0.46 in | 11.6 mm | 0.4 " | ITE (Commercial) | SCP | 4-SIP Module | 55024 55032 Class A 60950-1 | 81 % | ||||||

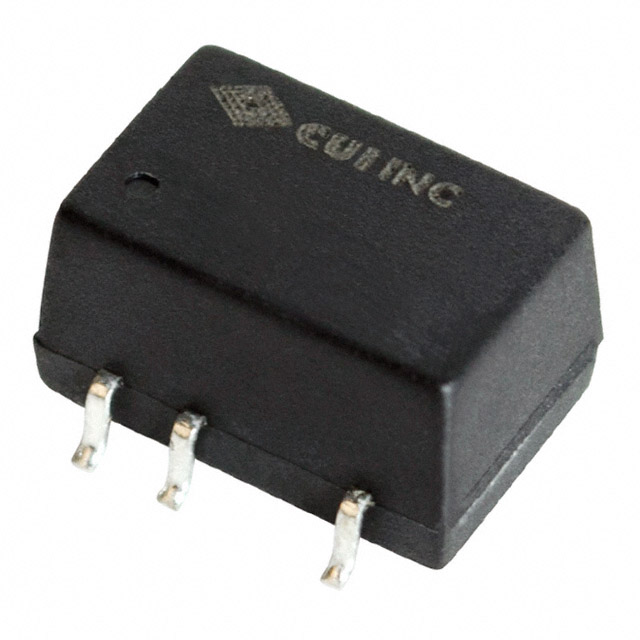

 CUI Inc. | Surface Mount | 1.5 kV | 24 V | 105 C | -40 °C | EN UL | 1 | 5.5 V | Isolated Module | 42 mA | 4.5 V | 0.29 " | 0.33 in | 12.7 mm | ITE (Commercial) | SCP | 8-SMD Module 5 Leads | 55024 55032 Class A 60950-1 | 80 % | 7.3 mm | 8.3 mm | 12.7 mm | ||||||

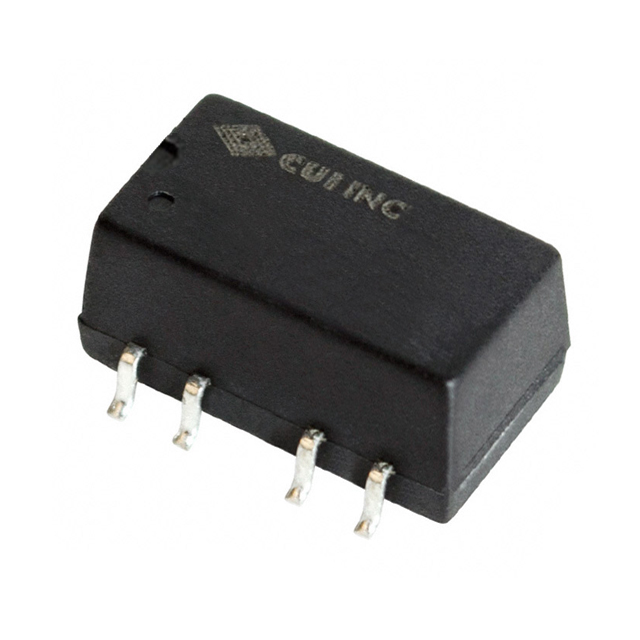

 CUI Inc. | Surface Mount | 1.5 kV | 12 V | 105 C | -40 °C | CB Scheme EN IEC | 2 | 5.5 V | Isolated Module | 4.5 V | 7.3 mm | 8.3 mm | 0.33 " | 0.6 " | 15.2 mm | 0.29 in | ITE (Commercial) | SCP | 10-SMD Module 6 Leads | 55024 55032 Class A 60950-1 | 81 % | -12 V | 42 mA | |||||
CUI Inc. | Surface Mount | 1.5 kV | 15 V | 105 C | -40 °C | EN UL | 1 | 5.5 V | Isolated Module | 67 mA | 4.5 V | 0.29 " | 0.33 in | 12.7 mm | ITE (Commercial) | SCP | 8-SMD Module 5 Leads | 55024 55032 Class A 60950-1 | 80 % | 7.3 mm | 8.3 mm | 12.7 mm | ||||||
CUI Inc. | Surface Mount | 1.5 kV | 5 V | 105 C | -40 °C | EN UL | 1 | 5.5 V | Isolated Module | 200 mA | 4.5 V | 0.29 " | 0.33 in | 12.7 mm | ITE (Commercial) | SCP | 8-SMD Module 5 Leads | 55024 55032 Class A 60950-1 | 80 % | 7.3 mm | 8.3 mm | 12.7 mm | ||||||

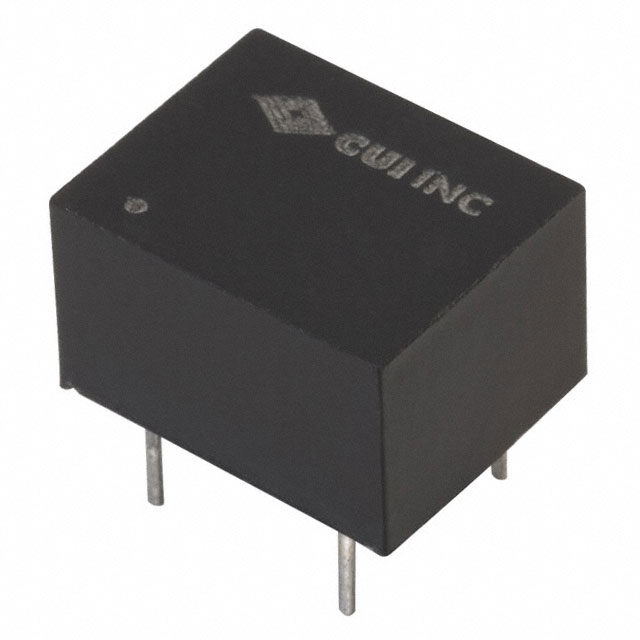

 CUI Inc. | Through Hole | 1.5 kV | 15 V | 105 ░C | -40 C | CB Scheme EN IEC UL | 1 | 5.5 V | Isolated Module | 67 mA | 4.5 V | 7.7 mm | 10 mm | 0.39 in | 0.5 " | 12.8 mm | 0.3 in | ITE (Commercial) | SCP | 7-DIP Module 4 Leads | 55024 55032 Class A 60950-1 | 81 % | ||||||
CUI Inc. | Surface Mount | 1.5 kV | 15 V | 105 C | -40 °C | CB Scheme EN IEC | 2 | 5.5 V | Isolated Module | 33 mA | 4.5 V | 7.3 mm | 8.3 mm | 0.33 " | 0.6 " | 15.2 mm | 0.29 in | ITE (Commercial) | SCP | 10-SMD Module 6 Leads | 55024 55032 Class A 60950-1 | 81 % | -15 V | 33 mA | ||||
 CUI Inc. | Through Hole | 1.5 kV | 12 V | 105 C | -40 °C | CB Scheme EN IEC UL | 1 | 5.5 V | Isolated Module | 83 mA | 4.5 V | 10.2 mm | 6 mm | 0.24 " | 0.46 in | 11.6 mm | 0.4 " | ITE (Commercial) | SCP | 4-SIP Module | 55024 55032 Class A 60950-1 | 81 % | ||||||
CUI Inc. | Surface Mount | 1.5 kV | 9 V | 105 C | -40 °C | CB Scheme EN IEC | 2 | 5.5 V | Isolated Module | 56 mA | 4.5 V | 7.3 mm | 8.3 mm | 0.33 " | 0.6 " | 15.2 mm | 0.29 in | ITE (Commercial) | SCP | 10-SMD Module 6 Leads | 55024 55032 Class A 60950-1 | 80 % | -9 V | |||||
CUI Inc. | Through Hole | 1.5 kV | 9 V | 105 C | -40 °C | CB Scheme EN IEC UL | 1 | 5.5 V | Isolated Module | 111 mA | 4.5 V | 10.2 mm | 6 mm | 0.24 " | 0.46 in | 11.6 mm | 0.4 " | ITE (Commercial) | SCP | 4-SIP Module | 55024 55032 Class A 60950-1 | 80 % |
