3233-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

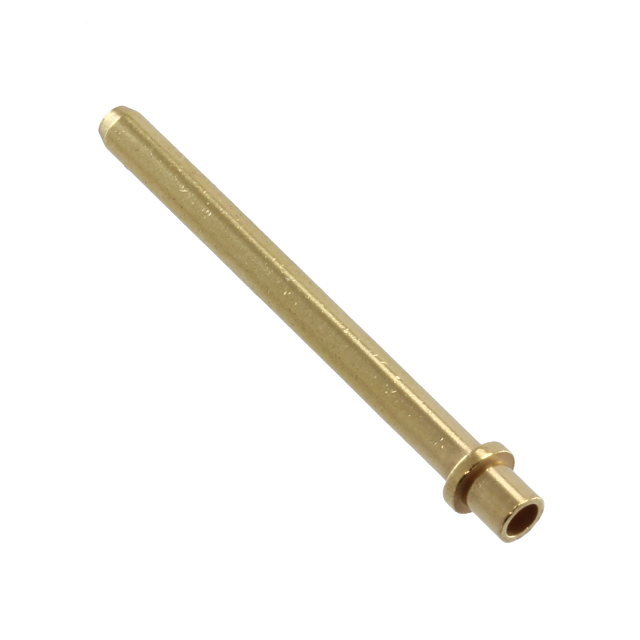

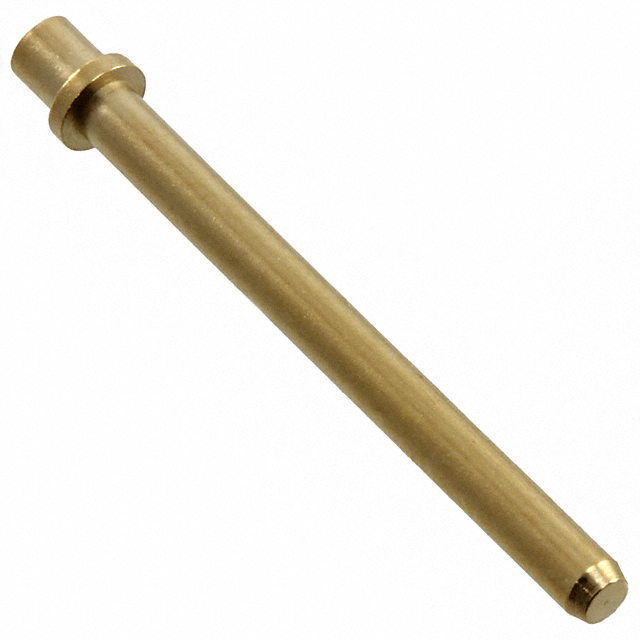

CONN PC PIN CIRC 0.080DIA GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Style | Board Thickness | Board Thickness | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Length - Above Flange [x] | Length - Above Flange [x] | Insulation | Termination | Terminal Type | Mounting Type | Contact Finish | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 50 µin | 1.27 µm | 2.39 mm | 0.094 " | 0.094 in | 2.39 mm | Single End | 1.57 mm | 0.062 " | 2.03 mm | 0.08 in | 0.125 in | 3.18 mm | Brass Alloy | 22.86 mm | 0.9 in | Non-Insulated | Swage | PC Pin | Through Hole | Gold | 25.88 mm | 1.019 in |
 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | 2.39 mm | 0.094 " | 0.094 in | 2.39 mm | Single End | 1.57 mm | 0.062 " | 2.03 mm | 0.08 in | 0.125 in | 3.18 mm | Brass Alloy | 22.86 mm | 0.9 in | Non-Insulated | Swage | PC Pin | Through Hole | Tin-Lead | 25.88 mm | 1.019 in |
 Mill-Max Manufacturing Corp. | 200 Áin | 5.08 Ám | 2.29 mm | 0.09 " | 0.094 in | 2.39 mm | Single End | 2.03 mm | 0.08 in | 0.125 in | 3.18 mm | Brass Alloy | 2.39 mm | 0.094 in | Non-Insulated | Swage | PC Pin | Through Hole | Tin | 25.88 mm | 1.019 in | ||
 Mill-Max Manufacturing Corp. | 10 Áin | 0.25 Ám | 2.39 mm | 0.094 " | 0.094 in | 2.39 mm | Single End | 1.57 mm | 0.062 " | 2.03 mm | 0.08 in | 0.125 in | 3.18 mm | Brass Alloy | 22.86 mm | 0.9 in | Non-Insulated | Swage | PC Pin | Through Hole | Gold | 25.88 mm | 1.019 in |
