Q45B Series

Catalog

Q45 SERIES: PLASTIC FIBER OPTIC<

Part	Ingress Protection	Adjustment Type	Cable Length	Cable Length	Sensing Method	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Output Configuration	Voltage - Supply [Min]	Voltage - Supply [Max]	Light Source	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance	Sensing Distance

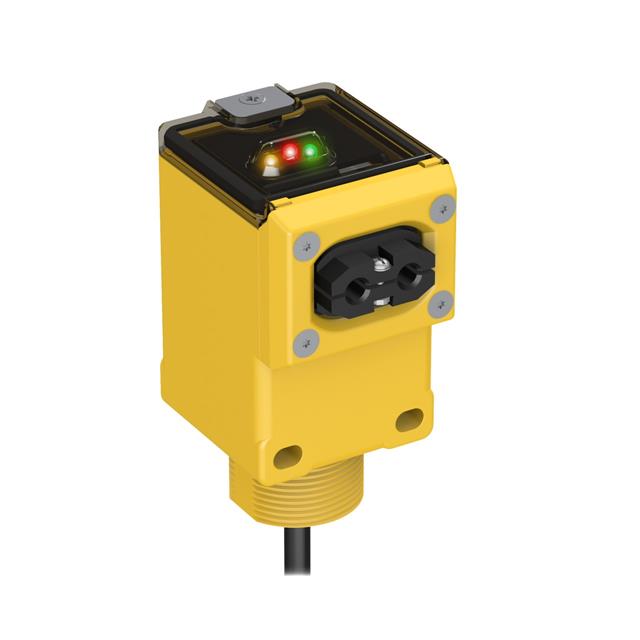

BANNER ENGINEERING Q45BW22FP	IEC IEC IP67 IP67 NEMA 6P	Adjustable Potentiometer	78.74 "	2 m	Fiber Optic	2 ms	70 °C	-40 C	Cable	SPST	90 VAC	250 VAC	LED

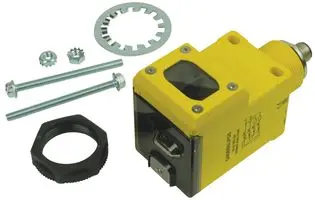

BANNER ENGINEERING Q45BB6LPQ5	IEC IEC IP67 IP67 NEMA 6P	Adjustable			Retroreflective	2 ms	70 °C	-40 C	Connector	NPN PNP	10 VDC	30 VDC	Red (680nm)	15 cm	236.22 "	6 m	5.91 "

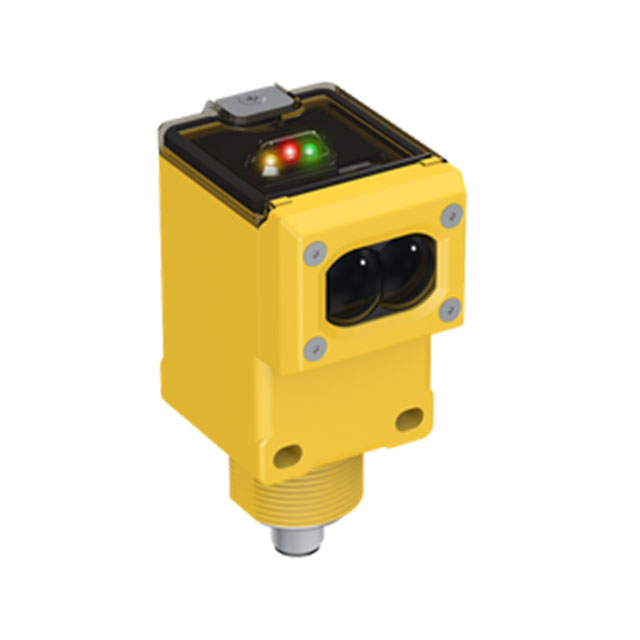

BANNER ENGINEERING Q45BB6DXQ5	IEC IEC IP67 IP67 NEMA 6P	Adjustable			Through-Beam	2 ms	70 °C	-40 C	Connector	NPN PNP	10 VDC	30 VDC	Infrared (880nm)					118.11 in	3 m
BANNER ENGINEERING Q45BB6RQ5	IEC IEC IP67 IP67 NEMA 6P	Adjustable			Through-Beam	2 ms	70 °C	-40 C	Connector	NPN PNP	10 VDC	30 VDC	Infrared (880nm)					196.85 ft	60 m

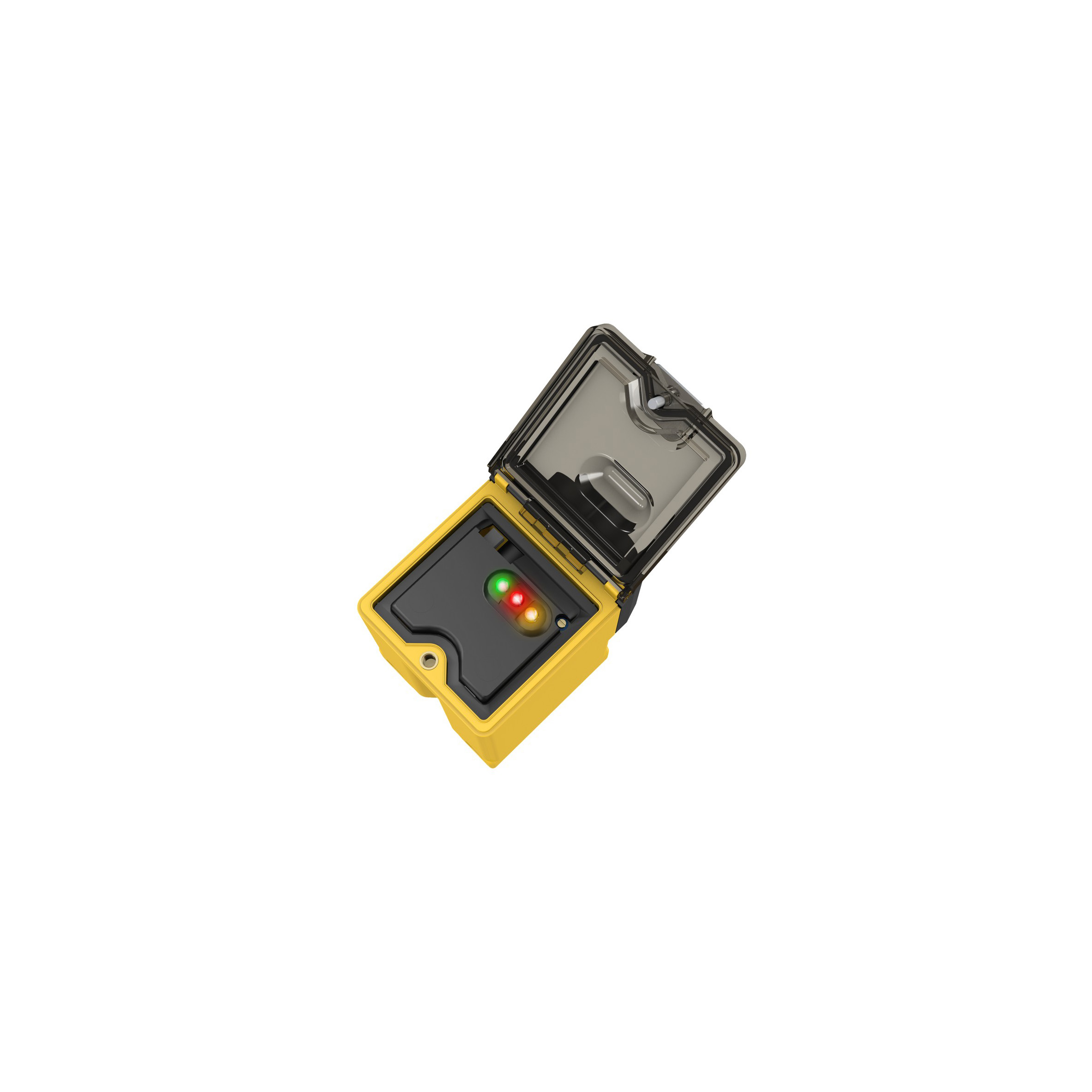

BANNER ENGINEERING Q45BB6RFQ5	IEC IP67 NEMA 6P	Adjustable Potentiometer			Through-Beam	2 ms	70 °C	-40 C	Connector		10 VDC	30 VDC	Infrared					196.85 ft	60 m

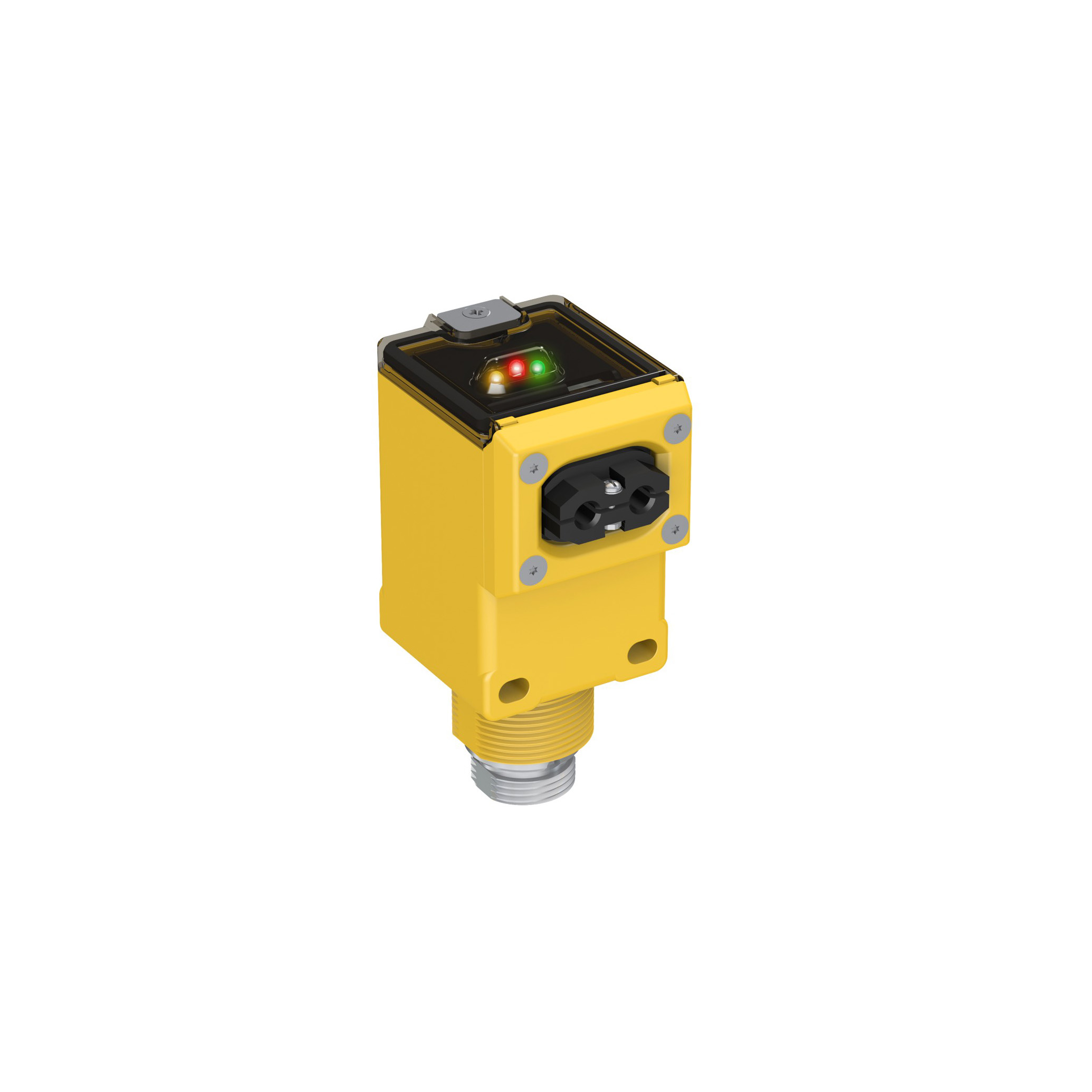

BANNER ENGINEERING Q45BW22FPQ	IEC IEC IP67 IP67 NEMA 6P	Adjustable Potentiometer			Fiber Optic	2 ms	70 °C	-40 C	Connector	SPST	90 VAC	250 VAC	LED

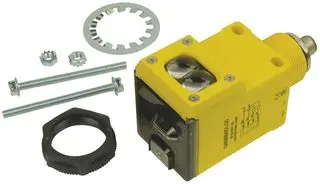

BANNER ENGINEERING Q45BB6DLQ5	IEC IEC IP67 IP67 NEMA 6P	Adjustable			Through-Beam	2 ms	70 °C	-40 C	Connector	NPN PNP	10 VDC	30 VDC	Infrared (880nm)					70.866 in	1.8 m

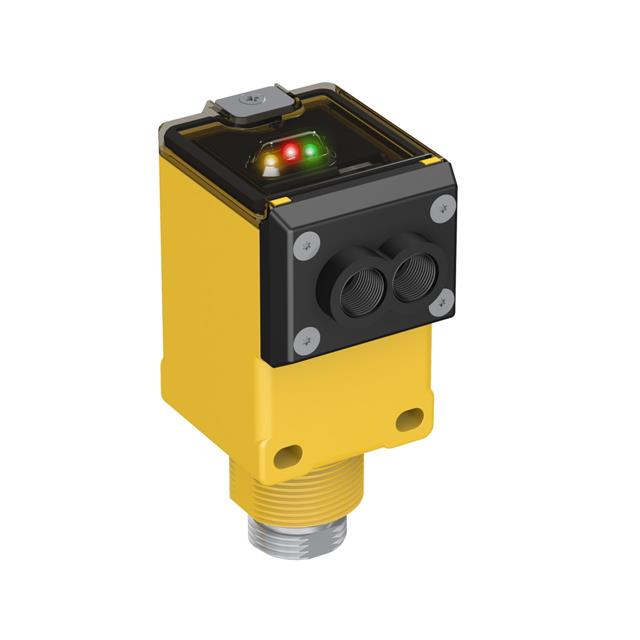

BANNER ENGINEERING Q45BW13FVQ	IEC IEC IP67 IP67 NEMA 6P	Adjustable Potentiometer			Fiber Optic	2 ms	55 °C	-25 °C	Connector	SPST	12 VDC 24 VAC	250 VAC 250 VDC	RED (650nm)

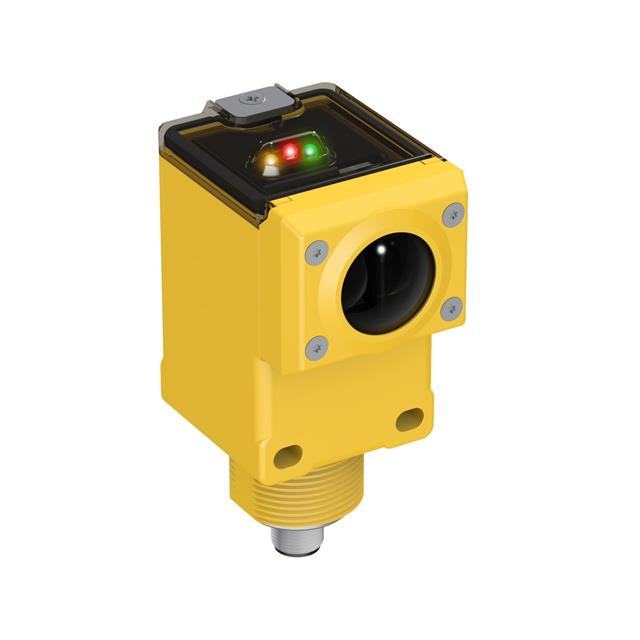

BANNER ENGINEERING Q45BB6CVQ5	IEC IEC IP67 IP67 NEMA 6P	Adjustable Potentiometer			Convergent	2 ms	70 °C	-40 C	Connector	NPN/PNP - Dark-ON/Light-ON - Selectable	10 VDC	30 VDC	Red (680nm)					1.496 in	38 mm
BANNER ENGINEERING Q45BB6LVQ5	IEC IEC IP67 IP67 NEMA 6P	Adjustable			Retroreflective	2 ms	70 °C	-40 C	Connector	NPN PNP	10 VDC	30 VDC	Red (680nm)	80 mm	354.33 in	9000 mm	3.15 "
