76382 Series

Catalog

CONN HEADER R/A 3POS 2.54MM

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Fastening Type	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Contact Material	Number of Positions Loaded	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Finish - Post	Style	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Current Rating (Amps)	Insulation Height	Insulation Height	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Number of Positions	Number of Positions
Amphenol ICC (FCI) 76382-303	Header	125 °C	-40 °C	Polyester Glass Filled	Friction Lock	1	0.134 in	3.4 mm	Square	Phosphor Bronze	All	Gold GXT™	0.1 in	2.54 mm	Male Pin	Through Hole Right Angle	150 Áin	3.81 Ám	Blue	Tin-Lead	Board to Cable/Wire	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	3 A	5.3 mm	0.209 "	UL94 V-0	0.197 in	5 mm
Amphenol ICC (FCI) 76382-308	Header			Polyester Glass Filled	Friction Lock	1	0.134 in	3.4 mm	Square	Phosphor Bronze	All	Gold GXT™	0.1 in	2.54 mm	Male Pin	Through Hole Right Angle	150 Áin	3.81 Ám	Blue	Tin-Lead	Board to Cable/Wire	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall		5.3 mm	0.209 "	UL94 V-0	0.197 in	5 mm	8
Amphenol ICC (FCI) 76382-416LF	Header	125 °C	-40 °C	Polyester Glass Filled	Friction Lock	1	0.134 in	3.4 mm	Square	Phosphor Bronze	All		0.1 in	2.54 mm	Male Pin	Through Hole Right Angle	78.7 çin	2 çm	Blue	Tin	Board to Cable/Wire	Solder	78.7 µin	2 µm	Shrouded - 4 Wall	3 A	5.3 mm	0.209 "	UL94 V-0	0.197 in	5 mm		16

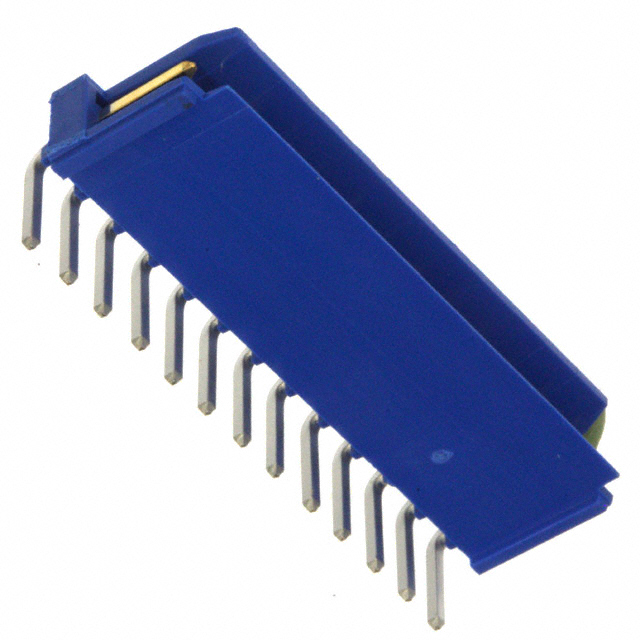

Amphenol ICC (FCI) 76382-313LF	Header	125 °C	-40 °C	Polyester Glass Filled	Friction Lock	1	0.134 in	3.4 mm	Square	Phosphor Bronze	All	Gold GXT™	0.1 in	2.54 mm	Male Pin	Through Hole Right Angle	78.7 çin	2 çm	Blue	Tin	Board to Cable/Wire	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	3 A	5.3 mm	0.209 "	UL94 V-0	0.197 in	5 mm	13
Amphenol ICC (FCI) 76382-313	Header			Polyester Glass Filled	Friction Lock	1	0.134 in	3.4 mm	Square	Phosphor Bronze	All	Gold GXT™	0.1 in	2.54 mm	Male Pin	Through Hole Right Angle	150 Áin	3.81 Ám	Blue	Tin-Lead	Board to Cable/Wire	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall		5.3 mm	0.209 "	UL94 V-0	0.197 in	5 mm	13
Amphenol ICC (FCI) 76382-414LF	Header	125 °C	-40 °C	Polyester Glass Filled	Friction Lock	1	0.134 in	3.4 mm	Square	Phosphor Bronze	All		0.1 in	2.54 mm	Male Pin	Through Hole Right Angle	78.7 çin	2 çm	Blue	Tin	Board to Cable/Wire	Solder	78.7 µin	2 µm	Shrouded - 4 Wall	3 A	5.3 mm	0.209 "	UL94 V-0	0.197 in	5 mm	14
Amphenol ICC (FCI) 76382-420LF	Header	125 °C	-40 °C	Polyester Glass Filled	Friction Lock	1	0.134 in	3.4 mm	Square	Phosphor Bronze	All		0.1 in	2.54 mm	Male Pin	Through Hole Right Angle	78.7 çin	2 çm	Blue	Tin	Board to Cable/Wire	Solder	78.7 µin	2 µm	Shrouded - 4 Wall	3 A	5.3 mm	0.209 "	UL94 V-0	0.197 in	5 mm	20

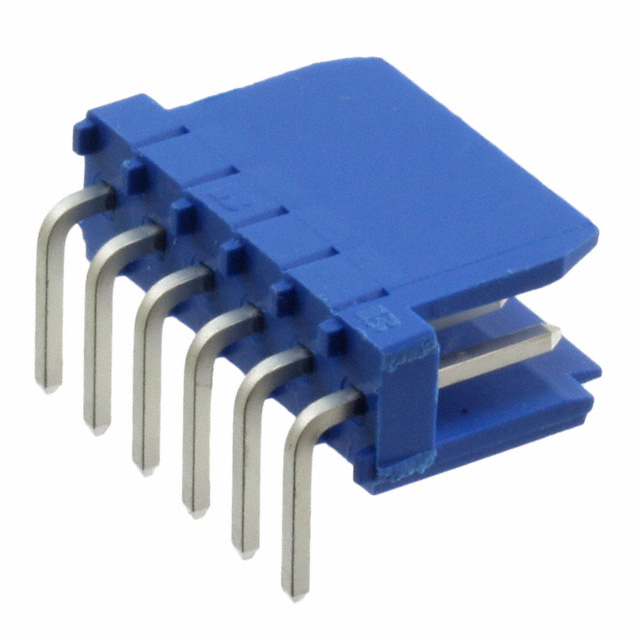

Amphenol ICC (FCI) 76382-406LF	Header	125 °C	-40 °C	Polyester Glass Filled	Friction Lock	1	0.134 in	3.4 mm	Square	Phosphor Bronze	All		0.1 in	2.54 mm	Male Pin	Through Hole Right Angle	78.7 çin	2 çm	Blue	Tin	Board to Cable/Wire	Solder	78.7 µin	2 µm	Shrouded - 4 Wall	3 A	5.3 mm	0.209 "	UL94 V-0	0.197 in	5 mm	6
Amphenol ICC (FCI) 76382-324LF	Header	125 °C	-40 °C	Polyester Glass Filled	Friction Lock	1	0.134 in	3.4 mm	Square	Phosphor Bronze	All	Gold GXT™	0.1 in	2.54 mm	Male Pin	Through Hole Right Angle	78.7 çin	2 çm	Blue	Tin	Board to Cable/Wire	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall	3 A	5.3 mm	0.209 "	UL94 V-0	0.197 in	5 mm	24
Amphenol ICC (FCI) 76382-318	Header			Polyester Glass Filled	Friction Lock	1	0.134 in	3.4 mm	Square	Phosphor Bronze	All	Gold GXT™	0.1 in	2.54 mm	Male Pin	Through Hole Right Angle	150 Áin	3.81 Ám	Blue	Tin-Lead	Board to Cable/Wire	Solder	30 Áin	0.76 Ám	Shrouded - 4 Wall		5.3 mm	0.209 "	UL94 V-0	0.197 in	5 mm	18
