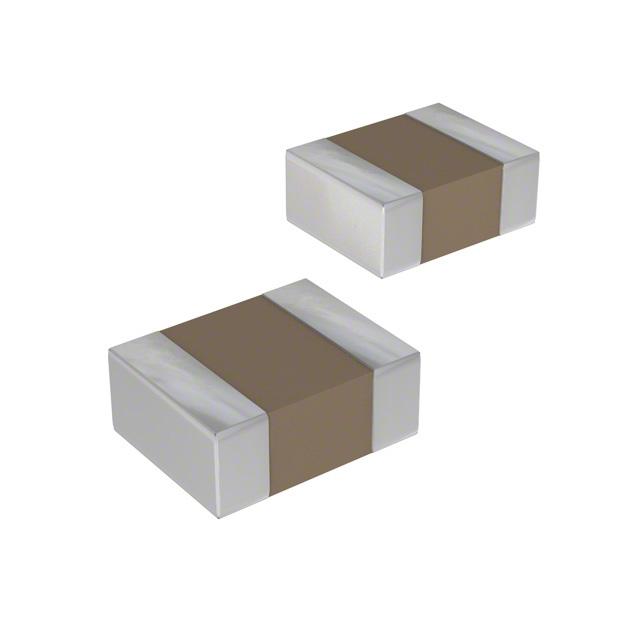

CF322513 Series

Catalog

FIXED IND 10UH 150MA 2.1 OHM SMD

Part	Q @ Freq	Shielding	Current Rating (Amps)	Frequency - Self Resonant	Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance	Inductance Frequency - Test	Material - Core	Package / Case	Package / Case	Mounting Type	DC Resistance (DCR) [Max]	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. CF322513-100K	2.52 MHz 30	Shielded	150 mA	36 MHz	Multilayer	0.059 "	1.5 mm	-55 C	125 °C	1210	10 %	2.5 mm	0.098 in	3.2 mm	0.126 "	10 µH	2.52 MHz	Ferrite	1210	3225 Metric	Surface Mount	2.1 Ohm
Bourns Inc. CF322513-1R0K	7.96 MHz 30	Shielded	400 mA	120 MHz	Multilayer	0.059 "	1.5 mm	-55 C	125 °C	1210	10 %	2.5 mm	0.098 in	3.2 mm	0.126 "	1 µH	7.96 MHz	Ferrite	1210	3225 Metric	Surface Mount		700 mOhm
Bourns Inc. CF322513-R12K		Shielded	0.45 A	500 MHz	Multilayer	0.059 "	1.5 mm	-55 C	125 °C	1210	10 %	2.5 mm	0.098 in	3.2 mm	0.126 "	120 nH	25.2 MHz	Ferrite	1210	3225 Metric	Surface Mount	220 mOhm		30	25.2 MHz
Bourns Inc. CF322513-R18K		Shielded	0.45 A	400 MHz	Multilayer	0.059 "	1.5 mm	-55 C	125 °C	1210	10 %	2.5 mm	0.098 in	3.2 mm	0.126 "	180 nH	25.2 MHz	Ferrite	1210	3225 Metric	Surface Mount	280 mOhm		30	25.2 MHz
