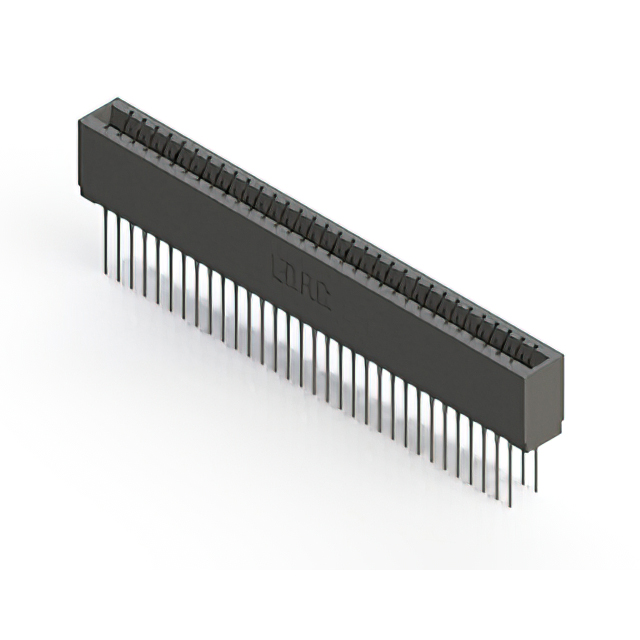

746-064 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 64POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Color	Contact Material	Contact Finish	Card Type	Number of Positions/Bay/Row	Gender	Mounting Type	Number of Rows [custom]	Read Out	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 746-064-525-601	2	Polyester Thermoplastic	Press-Fit	Cantilever	-40 C	105 ░C	64	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Black	Copper Alloy	Gold	Non Specified - Dual Edge	32	Female	Through Hole	2	Dual	30 Áin	0.76 Ám
EDAC Inc. 746-064-545-206	2	Polyester Thermoplastic	Press-Fit Wire Wrap	Cantilever	-40 C	105 ░C	64	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Black	Copper Alloy	Gold	Non Specified - Dual Edge	32	Female	Through Hole	2	Dual	30 Áin	0.76 Ám
EDAC Inc. 746-064-545-601	2	Polyester Thermoplastic	Press-Fit Wire Wrap	Cantilever	-40 C	105 ░C	64	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Black	Copper Alloy	Gold	Non Specified - Dual Edge	32	Female	Through Hole	2	Dual	30 Áin	0.76 Ám
EDAC Inc. 746-064-520-206	2	Polyester Thermoplastic	Press-Fit	Cantilever	-40 C	105 ░C	64	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Black	Copper Alloy	Gold	Non Specified - Dual Edge	32	Female	Through Hole	2	Dual	30 Áin	0.76 Ám

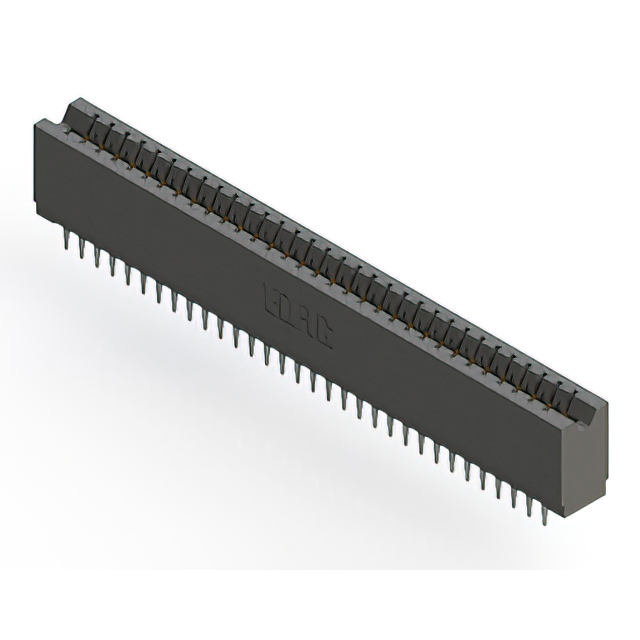

EDAC Inc. 746-064-525-606	2	Polyester Thermoplastic	Press-Fit	Cantilever	-40 C	105 ░C	64	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Black	Copper Alloy	Gold	Non Specified - Dual Edge	32	Female	Through Hole	2	Dual	30 Áin	0.76 Ám
EDAC Inc. 746-064-553-201	2	Polyester Thermoplastic	Press-Fit Wire Wrap	Cantilever	-40 C	105 ░C	64	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Black	Copper Alloy	Gold	Non Specified - Dual Edge	32	Female	Through Hole	2	Dual	30 Áin	0.76 Ám
EDAC Inc. 746-064-545-201	2	Polyester Thermoplastic	Press-Fit Wire Wrap	Cantilever	-40 C	105 ░C	64	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Black	Copper Alloy	Gold	Non Specified - Dual Edge	32	Female	Through Hole	2	Dual	30 Áin	0.76 Ám
EDAC Inc. 746-064-527-601	2	Polyester Thermoplastic	Press-Fit	Cantilever	-40 C	105 ░C	64	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Black	Copper Alloy	Gold	Non Specified - Dual Edge	32	Female	Through Hole	2	Dual	30 Áin	0.76 Ám
EDAC Inc. 746-064-540-201	2	Polyester Thermoplastic	Press-Fit Wire Wrap	Cantilever	-40 C	105 ░C	64	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Black	Copper Alloy	Gold	Non Specified - Dual Edge	32	Female	Through Hole	2	Dual	30 Áin	0.76 Ám
EDAC Inc. 746-064-527-201	2	Polyester Thermoplastic	Press-Fit	Cantilever	-40 C	105 ░C	64	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	Black	Copper Alloy	Gold	Non Specified - Dual Edge	32	Female	Through Hole	2	Dual	30 Áin	0.76 Ám
