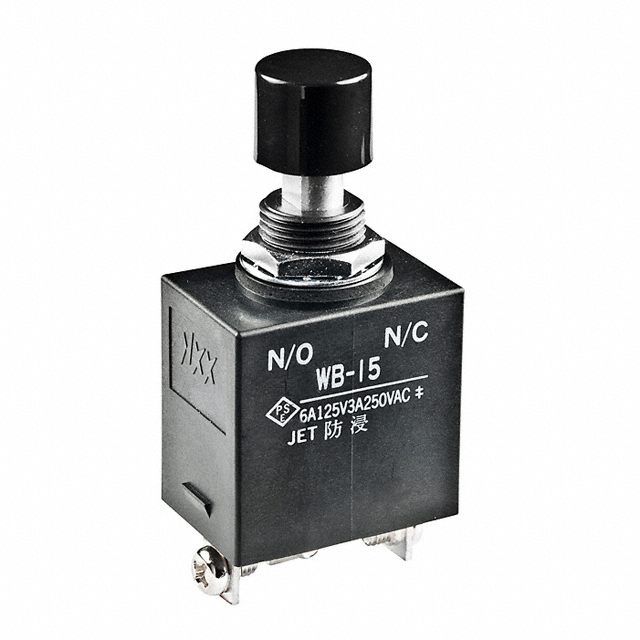

WB15T Series
Manufacturer: NKK Switches
Beta
⌘K
ENVIRONMENTALLY SEALED PUSHBUTTON
| Part | Mechanical Life | Electrical Life | Actuator Marking | Ingress Protection | Voltage Rating - AC | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Type | Actuator Type | Switch Function | Mounting Type | Circuit | Current Rating (Amps) | Termination Style | Voltage Rating - DC | Features | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 30000 Steps | 15000 Cycles | No Marking | IP67 - Dust Tight Waterproof | 125 V | Green | -30 ░C | 70 °C | Standard | Button Round | On-Mom | Panel Mount Rear | SPDT | 6 A | Screw Terminal | 30 V | Stainless Steel | 12.5 mm |
 NKK Switches | 30000 Steps | 15000 Cycles | No Marking | IP67 - Dust Tight Waterproof | 125 V | Black | -30 ░C | 70 °C | Standard | Button Round | On-Mom | Panel Mount Rear | SPDT | 6 A | Screw Terminal | 30 V | Stainless Steel | 12.5 mm |
