68494 Series

Catalog

CONN HEADER R/A 36POS 2.54MM

Part	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Positions Loaded	Contact Material	Insulation Color	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Termination	Number of Rows	Shrouding	Connector Type	Contact Shape	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post

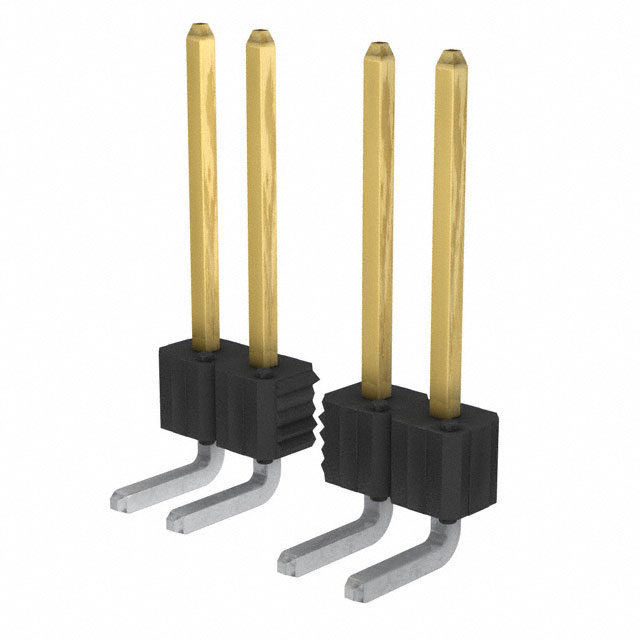

Amphenol ICC (FCI) 68494-236	0.095 in	2.41 mm	Male Pin	Gold or Gold GXT™	10.16 mm	0.4 in	UL94 V-0	All	Phosphor Bronze	Black	0.11 in	2.79 mm	0.1 in	2.54 mm	36	Solder	1	Unshrouded	Header	Square	Push-Pull	Through Hole Right Angle	15 µin	0.38 µm
Amphenol ICC (FCI) 68494-236HLF	0.095 in	2.41 mm	Male Pin	Gold or Gold GXT™	10.16 mm	0.4 in	UL94 V-0	All	Phosphor Bronze	Black	0.11 in	2.79 mm	0.1 in	2.54 mm	36	Solder	1	Unshrouded	Header	Square	Push-Pull	Through Hole Right Angle	15 µin	0.38 µm

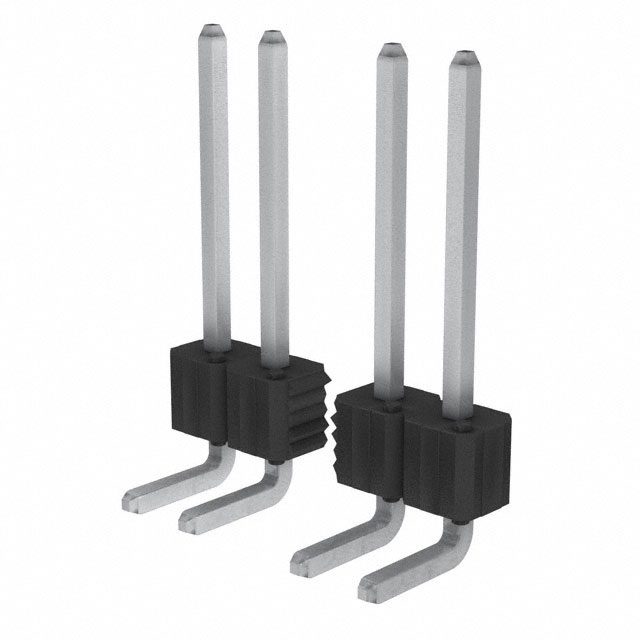

Amphenol ICC (FCI) 68494-424HLF	0.095 in	2.41 mm	Male Pin		10.16 mm	0.4 in	UL94 V-0	All	Phosphor Bronze	Black	0.11 in	2.79 mm	0.1 in	2.54 mm	24	Solder	1	Unshrouded	Header	Square	Push-Pull	Through Hole Right Angle	100 çin	2.54 çm	Tin
