MAN69 Series

Catalog

LED 7-SEG DUAL CC RED RHDP .56"

Part	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Number of Characters	Package / Case [x]	Package / Case [x]	Package / Case	Display Type	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Common Pin	Wavelength - Peak	Current - Test	Color	Millicandela Rating	Number of Characters	Package / Case

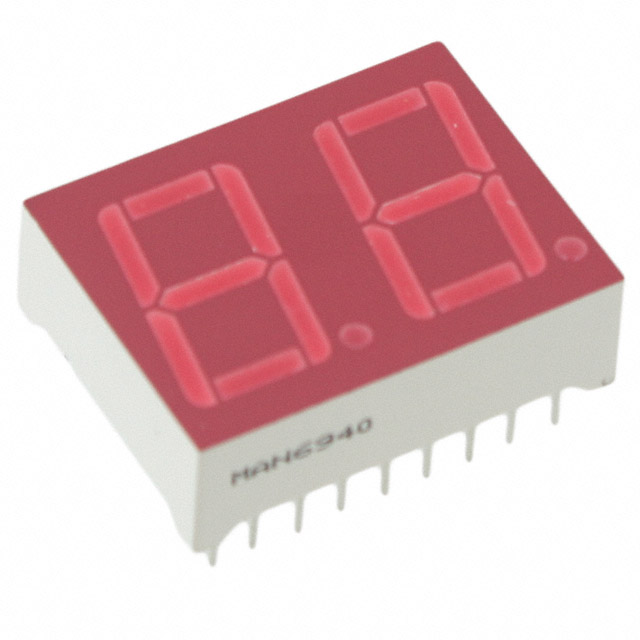

Everlight Electronics Co Ltd MAN6940	2.5 V	1.2 W	2	15.24 mm	0.6 in	18-DIP	7-Segment	0.56 in	14.22 mm	0.985 in	25.02 mm	0.315 in	0.75 in	8 mm	19.05 mm	Common Cathode	635 nm	20 mA	Red	2.2 mcd
Everlight Electronics Co Ltd MAN6980	2.5 V	600 mW				10-DIP	7-Segment	0.56 in	14.22 mm	0.48 in	12.2 mm	0.315 in	0.75 in	8 mm	19.05 mm	Common Cathode	635 nm	20 mA	Red	2.2 mcd	1	0.6 in 15.24 mm
