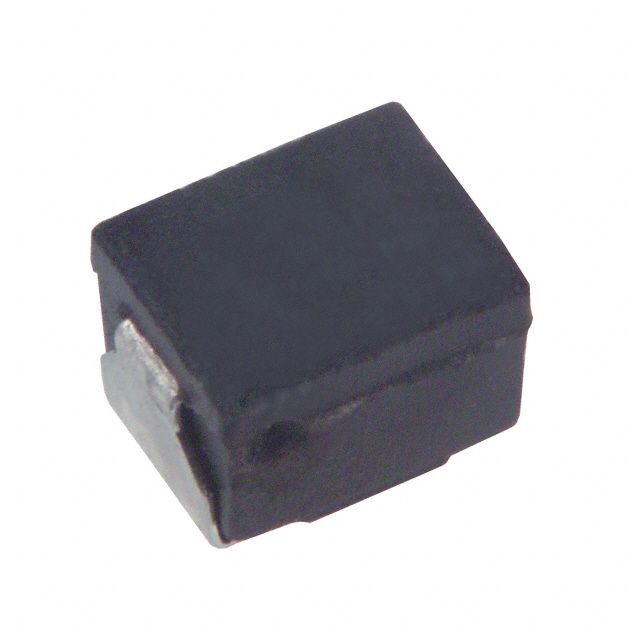

ELJ-FA Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

FIXED IND 1.2UH 215MA 750MOHM SM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Inductance	Q @ Freq	Tolerance	Type	Current Rating (Amps)	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Package / Case	Package / Case	DC Resistance (DCR)
Panasonic Industrial Automation Sales ELJ-FA1R2KF2	85 °C	-20 C	3.2 mm	2.5 mm	0.126 in	0.098 in	Unshielded	1.2 µH	7.96 MHz 30	10 %	Wirewound	215 mA	750 mOhm	100 MHz	Surface Mount	0.094 "	2.4 mm	7.96 MHz	1210	3225 Metric
Panasonic Industrial Automation Sales ELJ-FA1R2JF2	85 °C	-20 C	3.2 mm	2.5 mm	0.126 in	0.098 in	Unshielded	1.2 µH	7.96 MHz 30	5 %	Wirewound	215 mA	750 mOhm	100 MHz	Surface Mount	0.094 "	2.4 mm	7.96 MHz	1210	3225 Metric
Panasonic Industrial Automation Sales ELJ-FA3R9KF	85 °C	-20 C	3.2 mm	2.5 mm	0.126 in	0.098 in	Unshielded	3.9 µH	7.96 MHz 30	10 %	Wirewound	175 mA	1.3 Ohm	60 MHz	Surface Mount	0.094 "	2.4 mm	7.96 MHz	1210	3225 Metric
Panasonic Industrial Automation Sales ELJ-FA4R7JF	85 °C	-20 C	3.2 mm	2.5 mm	0.126 in	0.098 in	Unshielded	4.7 ÁH	7.96 MHz 30	5 %	Wirewound	0.165 A	1.5 Ohm	55 MHz	Surface Mount	0.094 "	2.4 mm	7.96 MHz	1210	3225 Metric
Panasonic Industrial Automation Sales ELJ-FA330KF	85 °C	-20 C	3.2 mm	2.5 mm	0.126 in	0.098 in	Unshielded	33 µH	2.52 MHz 30	10 %	Wirewound	85 mA	5.6 Ohm	20 MHz	Surface Mount	0.094 "	2.4 mm	2.52 MHz	1210	3225 Metric
Panasonic Industrial Automation Sales ELJ-FA221JF	85 °C	-20 C	3.2 mm	2.5 mm	0.126 in	0.098 in	Unshielded	220 µH	20 796 kHz	5 %	Wirewound	45 mA	21 Ohm	7 MHz	Surface Mount	0.094 "	2.4 mm	796 kHz	1210	3225 Metric
Panasonic Industrial Automation Sales ELJ-FA470KF	85 °C	-20 C	3.2 mm	2.5 mm	0.126 in	0.098 in	Unshielded	47 µH	2.52 MHz 30	10 %	Wirewound	75 mA		15 MHz	Surface Mount	0.094 "	2.4 mm	2.52 MHz	1210	3225 Metric
Panasonic Industrial Automation Sales ELJ-FA181KF	85 °C	-20 C	3.2 mm	2.5 mm	0.126 in	0.098 in	Unshielded	180 µH	20 796 kHz	10 %	Wirewound	50 mA	17 Ohm	7 MHz	Surface Mount	0.094 "	2.4 mm	796 kHz	1210	3225 Metric
Panasonic Industrial Automation Sales ELJ-FA101JF	85 °C	-20 C	3.2 mm	2.5 mm	0.126 in	0.098 in	Unshielded	100 µH	20 796 kHz	5 %	Wirewound	60 mA	10 Ohm	10 MHz	Surface Mount	0.094 "	2.4 mm	796 kHz	1210	3225 Metric
Panasonic Industrial Automation Sales ELJ-FA120JF	85 °C	-20 C	3.2 mm	2.5 mm	0.126 in	0.098 in	Unshielded	12 µH	2.52 MHz 30	5 %	Wirewound	125 mA		33 MHz	Surface Mount	0.094 "	2.4 mm	2.52 MHz	1210	3225 Metric	2.5 Ohm
