C14610R006 Series

Catalog

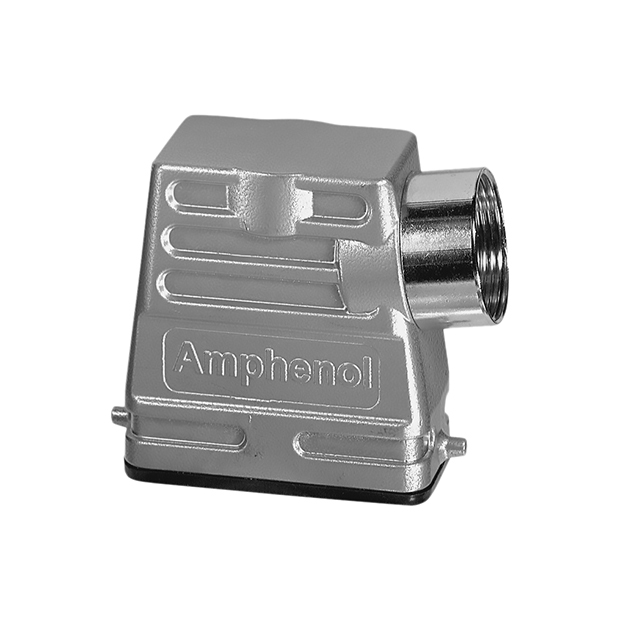

CONN HOOD SIDE ENTRY SZE6 M32

Part	Connector Type	Ingress Protection	Housing Material	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Lock Location	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol Tuchel Industrial C14610R0065068	Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Side Entry	2.362 in	70 mm	43 mm	60 mm	1.693 "	2.756 "	Locking Clip (1) on Base Bottom	M32	-40 C	100 °C

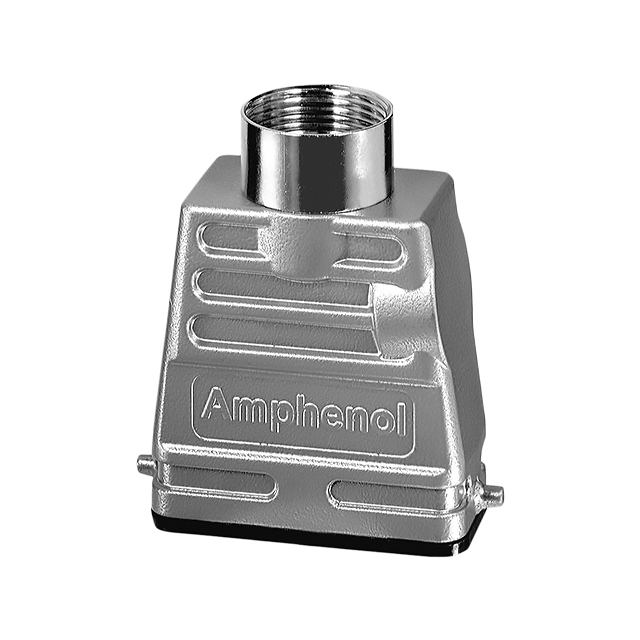

Amphenol Tuchel Industrial C14610R0066568	Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Top Entry	2.362 in	70 mm	43 mm	60 mm	1.693 "	2.756 "	Locking Clip (1) on Base Bottom	M25	-40 C	100 °C
Amphenol Tuchel Industrial C14610R0066068	Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Top Entry	2.362 in	70 mm	43 mm	60 mm	1.693 "	2.756 "	Locking Clip (1) on Base Bottom	M32	-40 C	100 °C
