59022-4-U-03-A SENS
Key Features
• Noncontact switching solution for wet & harsh environments
• No leakage current in ‘open’ state−ideal for battery-powered IoT applications
• Helps implement efficient proximity/access and energy management systems
• Compact size and easy installation and effective concealment in many applications
• Hermetically sealed, IP67 rated; UL and REACH compliant
• Can operate through nonferrous materials (for example, wood, plastic, or aluminum)
• Available in select sensitivities (operating distances)
• Standard cable configurations; customization options available
• UL Recognized per UL 508 and CSA C22.2 No. 14.
Description
AI

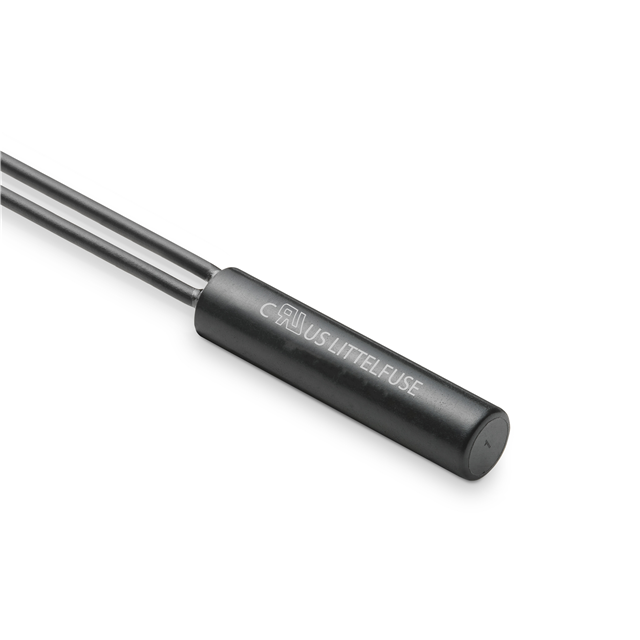

The 59022 Reed Sensor is a small cylindrical reed sensor, 25.4 mm (L) x 5.80 mm (Dia.) (1.00" x 0.228"), with a choice of normally open, normally closed or change-over contacts. It is capable of switching up to 200 Vdc at 10 W. The 59022 Reed Sensor is available with a range of sensitivity and cable length options. It is well suited for use in a wide range of industrial, appliances, or IoT proximity sensing applications. It functions best with the 57022 actuator.
