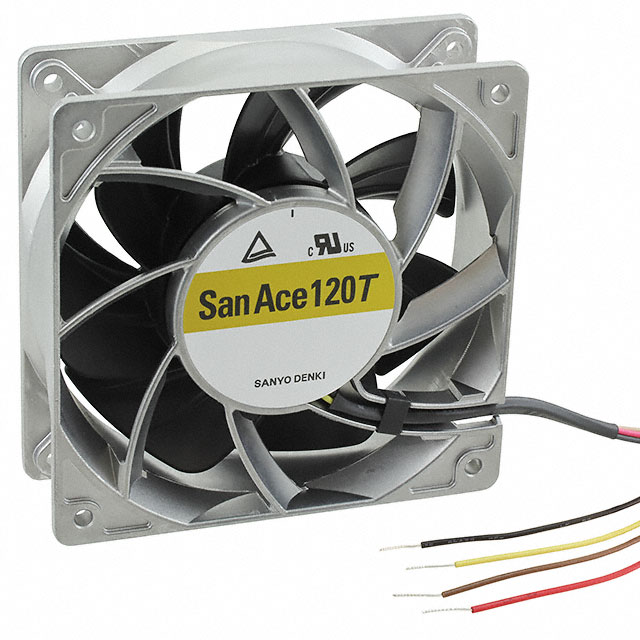

9GT1212 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K
AXIAL FAN, 120MM, 12VDC, 211.8CFM, 58DBA
| Part | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Material - Blade | Lifetime @ Temp. | Air Flow | Air Flow | Material - Frame | Features | Bearing Type | RPM | Termination | Noise | Power (Watts) | Fan Type | Width [y] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Static Pressure | Static Pressure | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Approval Agency | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 9 V | 13.8 VDC | 2.2 A | Plastic | 40000 Hrs | 5.93 m³/min | 211.8 CFM | Aluminum | PWM Control Speed Sensor (Tach) | Ball | 5600 RPM | 4 Wire Leads | 58 dB(A) | 26.4 W | Tubeaxial | 38 mm | -40 C | 85 °C | 12 VDC | 1.08 in H2O | 269 Pa | Square | 119 mm | 119 mm | cURus TUV | 420.03 g | 0.926 lb |
