796984 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

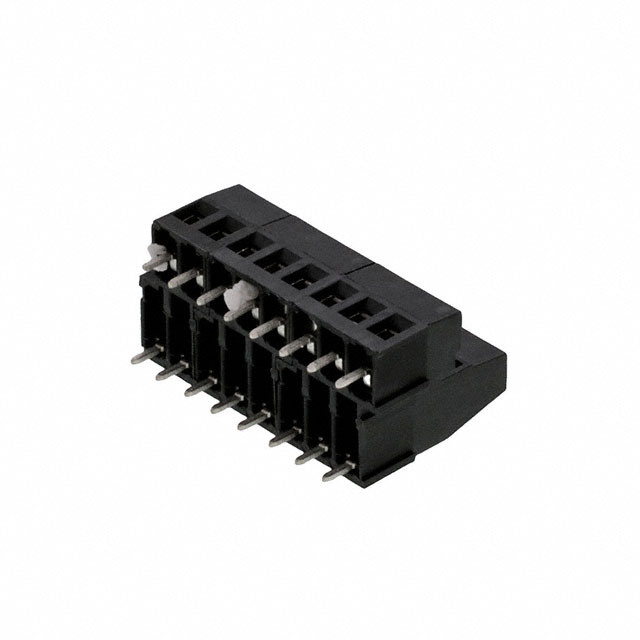

TERM BLK 8P SIDE ENT 5.08MM PCB
| Part | Screw Material - Plating | Torque - Screw | Torque - Screw | Contact Material - Plating | Clamp Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Mounting Type | Color | Current | Voltage | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Number of Levels | Wire Termination | Positions Per Level | Features | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass - Nickel Plated | 7 Lb-In | 0.79 Nm | Brass - Tin Plated | Brass - Nickel Plated | -40 C | 105 ░C | M3 | Through Hole | Black | 17.5 A | 300 VDC | 30 AWG | 12 AWG | Horizontal with Board | 2 | Screw - Rising Cage Clamp | 8 | Interlocking (Side) | 5.08 mm | 0.2 in |
