59170-1-T-00-D Series

59170-1-T-00-D SENSOR

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

59170-1-T-00-D SENSOR

Part	Power - Rated	Operate Time	Capacitance	Mounting Type	Release Time	Current - Carry	Current - Switching	Voltage - Switching AC [custom]	Circuit	Operate Range [Min]	Operate Range [Max]	Size - Body [x]	Size - Body [z]	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [z]	Type	Voltage - Switching DC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Length - Overall [x]	Length - Overall [x]	Height Above Board [z]	Height Above Board [z]
Littelfuse/Commercial Vehicle Products 59170-1-T-00-D	10 W	1 ms	0.3 pF	Surface Mount	0.5 ms	800 mA	350 mA 500 mA	140 V	SPST-NO	15	20 AT	11.43 mm	0.09 "	0.45 "	0.09 in	2.29 mm	2.29 mm	Molded Body Reed	200 V	Gull Wing	125 °C	-40 °C	16.26 mm	0.64 in	2.41 mm	0.095 in

Catalog

59170-1-T-00-D SENSOR

Key Features

• Two-part, magnetically-operated proximity sensor

• Gull-wing or straight lead options

• Molded standoff to allow board washing

• Customer-defined sensitivity

• Suitable for reflow soldering

Description

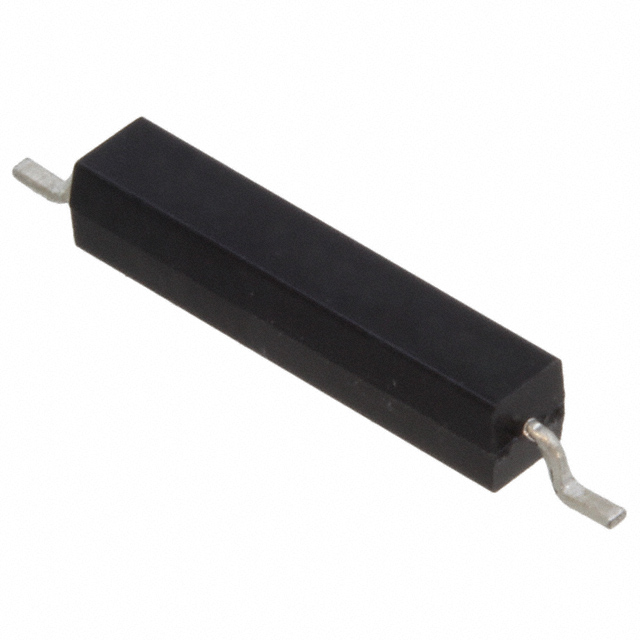

A sub-miniature overmolded reed sensor 11.43mm x 2.29mm x 2.29mm (0.450" x 0.090" x 0.090") with either straight or gull-wing leads. Provided with normally open contacts. Capable of switching up to 200Vdc at 10W. Its package contains molded stand-offs to allow board washing. Available with a range of sensitivity options, including customer-defined sensitivity. Well suited for position and limit sensing, security, and door/window alarm systems. Functions best with the 57045 actuator. Note: The 57045 actuator is sold separately.
