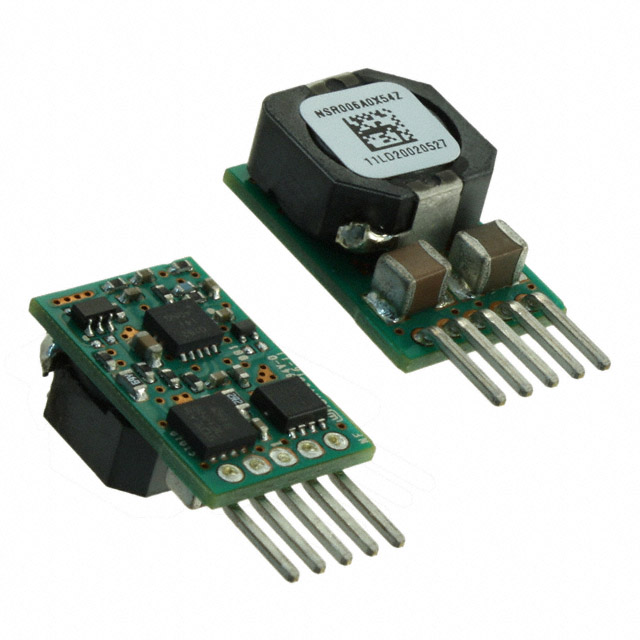

NSR010 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 0.6-6V 60W
| Part | Control Features | Power (Watts) | Voltage - Input (Min) [Min] | Voltage - Output 1 [Max] [custom] | Voltage - Output 1 [Min] [custom] | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Current - Output (Max) [Max] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Type | Package / Case | Voltage - Input (Max) [Max] | Features | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | Active High Enable | 60 W | 4.5 V | 6 V | 0.6 V | Through Hole | 0.41 in | 10.4 mm | 6.9 mm | 0.27 in | 16.5 mm | 0.65 in | 10 A | ITE (Commercial) | 85 °C | -40 C | 93.6 % | Non-Isolated PoL Module | 5-SIP Module | 14 V | OCP OTP Remote On/Off UVLO | 1 |
OmniOn Power™ | Active High Enable | 60 W | 4.5 V | 6 V | 0.6 V | Through Hole | 0.41 in | 10.4 mm | 6.9 mm | 0.27 in | 16.5 mm | 0.65 in | 10 A | ITE (Commercial) | 85 °C | -40 C | 93.6 % | Non-Isolated PoL Module | 5-SIP Module | 14 V | OCP OTP Remote On/Off UVLO | 1 |
