1478031 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

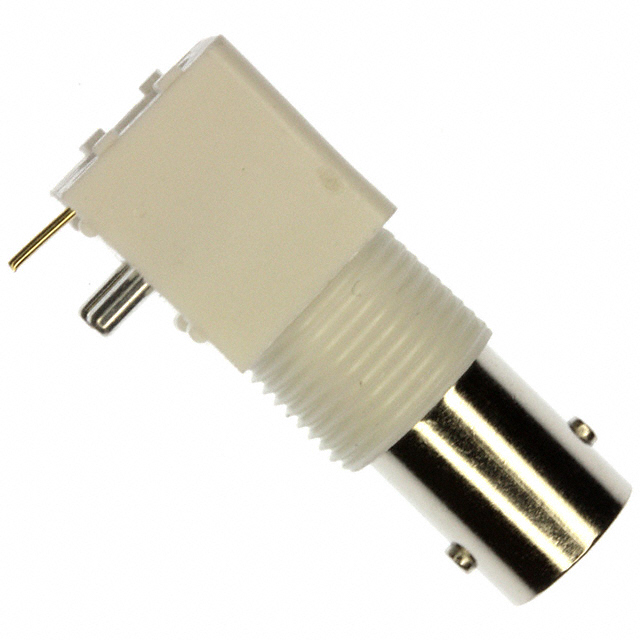

CONN BNC JACK R/A 75 OHM PCB
| Part | Connector Type | Features | Contact Termination | Center Contact Plating | Mounting Feature | Shield Termination | Housing Color | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Number of Ports | Fastening Type | Voltage Rating | Connector Style | Mating Cycles | Center Contact Material | Impedance | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Female Socket Jack | Board Guide Isolated | Solder | Gold | Bulkhead - Front Side Nut | Solder | Silver White | Panel Mount Right Angle Through Hole | 85 °C | -55 °C | Zinc Die Cast | Nickel | 1 | Bayonet Lock | 500 V | BNC | 500 | Brass | 75 Ohms | 2 GHz |
