FASTON 205 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

205 FASTON REC 18-14 AWG PHBZ

Part	Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Termination	Terminal Type	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Tab Width	Tab Width	Tab Length	Tab Length	Gender	Mounting Type	Color	Contact Finish	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Length - Overall	Length - Overall

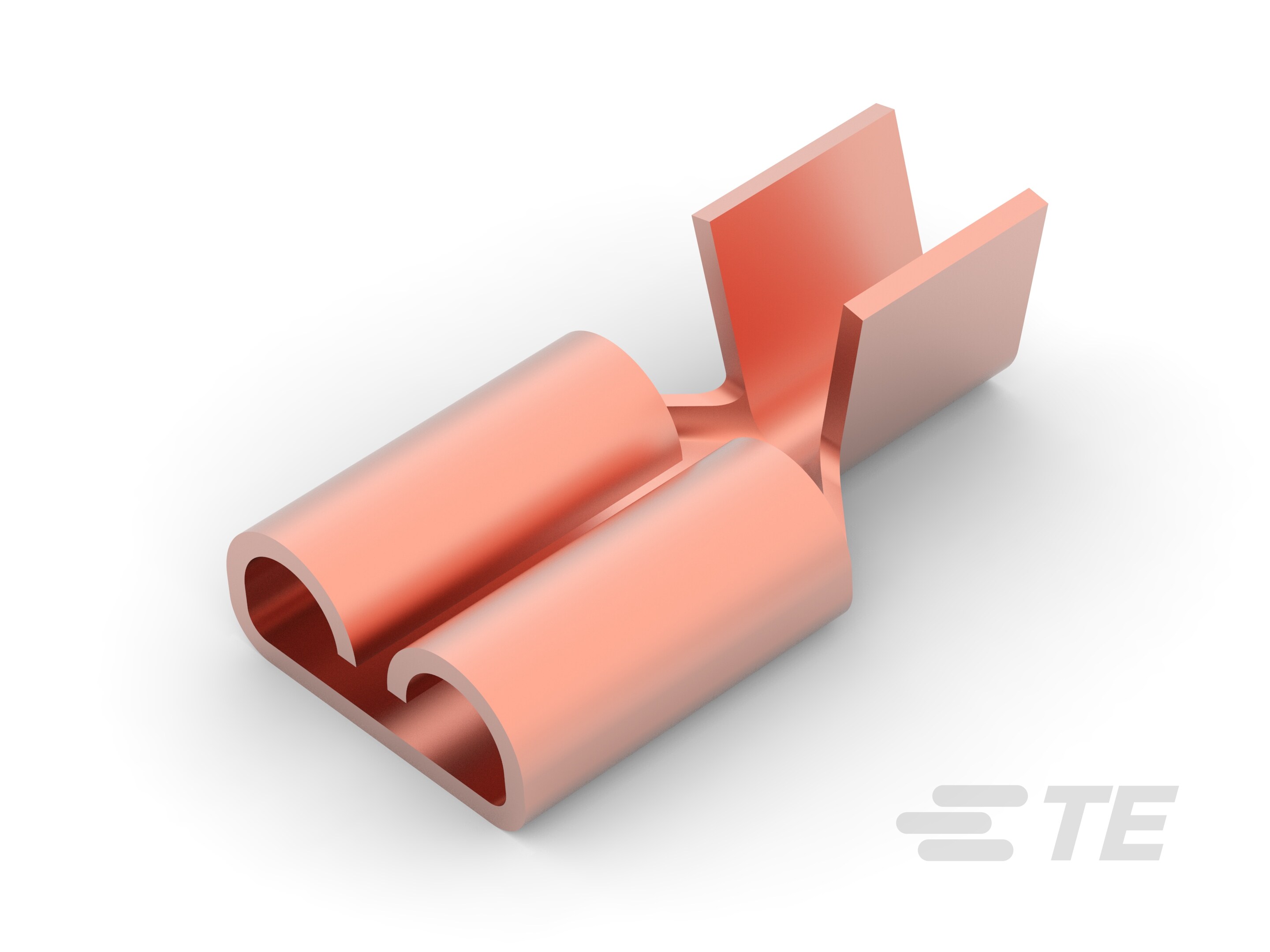

TE Connectivity AMP Connectors 42239-4	Non-Insulated	14 AWG	18 AWG	Phosphor Bronze	Crimp	Standard	0.81 mm	0.032 in	11.89 mm	0.468 in	5.21 mm	0.205 in	0.25 in	6.35 mm	Female	Free Hanging (In-Line)
TE Connectivity AMP Connectors 640174-1	Non-Mating End Insulated	17.5 AWG	22 AWG	Brass	Crimp	Standard	0.51 mm	0.02 in	20.32 mm	0.8 "	5.21 mm	0.205 in	0.25 in	6.35 mm	Female	Free Hanging (In-Line)	Red Black Stripe	Tin
TE Connectivity AMP Connectors 8-640913-1	Non-Mating End Insulated	14 AWG	16 AWG	Brass	Crimp	Standard	0.51 mm	0.02 in	20.32 mm	0.8 "	5.21 mm	0.205 in	0.25 in	6.35 mm	Female	Free Hanging (In-Line)	Blue	Tin

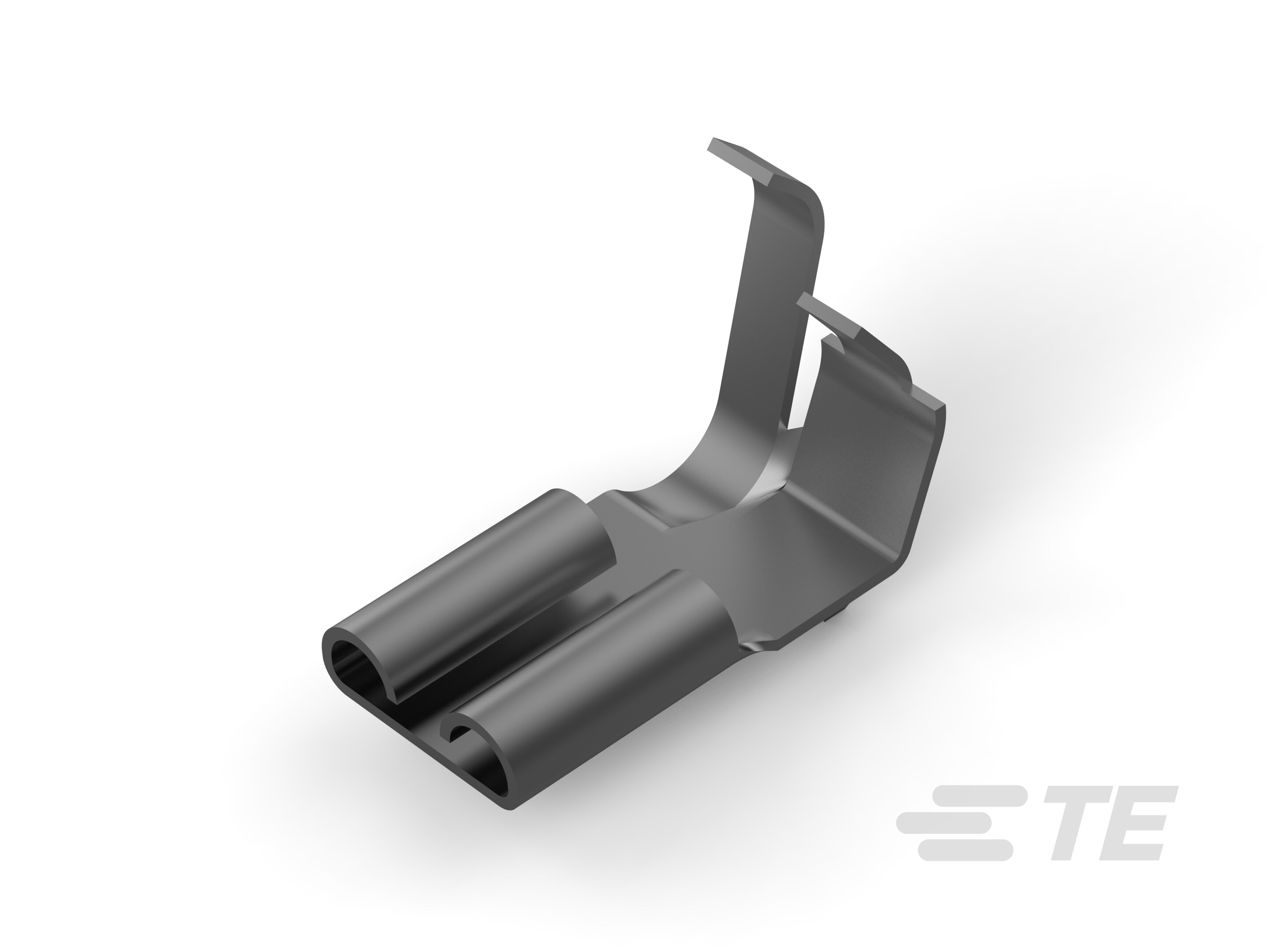

TE Connectivity AMP Connectors 42199-2	Non-Insulated	16 AWG	20 AWG	Brass	Crimp	Angled - 90° Flag	0.51 mm	0.02 in			5.21 mm	0.205 in	0.25 in	6.35 mm	Female	Free Hanging (In-Line) Right Angle		Tin
TE Connectivity AMP Connectors 61836-1	Non-Insulated			Brass	Rivet Screw Stud	Angled - 90°	0.81 mm	0.032 in			5.21 mm	0.205 in			Male	Board Chassis
TE Connectivity AMP Connectors 62531-1	Non-Insulated	14 AWG	18 AWG	Brass	Crimp	Standard	0.51 mm	0.02 in			5.21 mm	0.205 in	0.25 in	6.35 mm	Male	Free Hanging (In-Line)		Tin	0.15 in	0.12 in	3.05 mm	3.81 mm

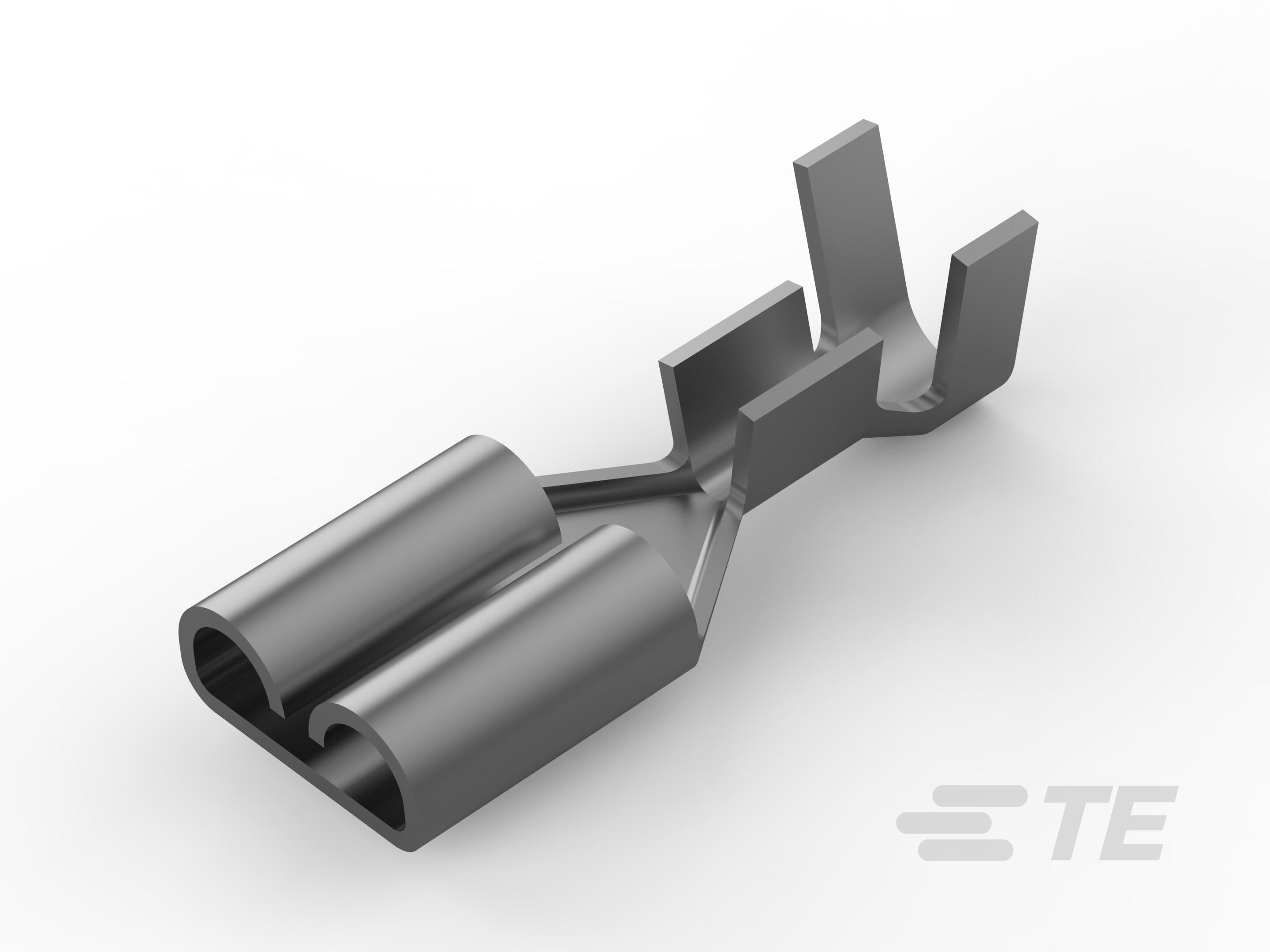

TE Connectivity AMP Connectors 170181-2	Non-Insulated	17.5 AWG	22 AWG	Brass	Crimp	Standard	0.79 mm	0.031 in	15.7 mm	0.618 in	5.21 mm	0.205 in	0.252 "	6.4 mm	Female	Free Hanging (In-Line)		Tin

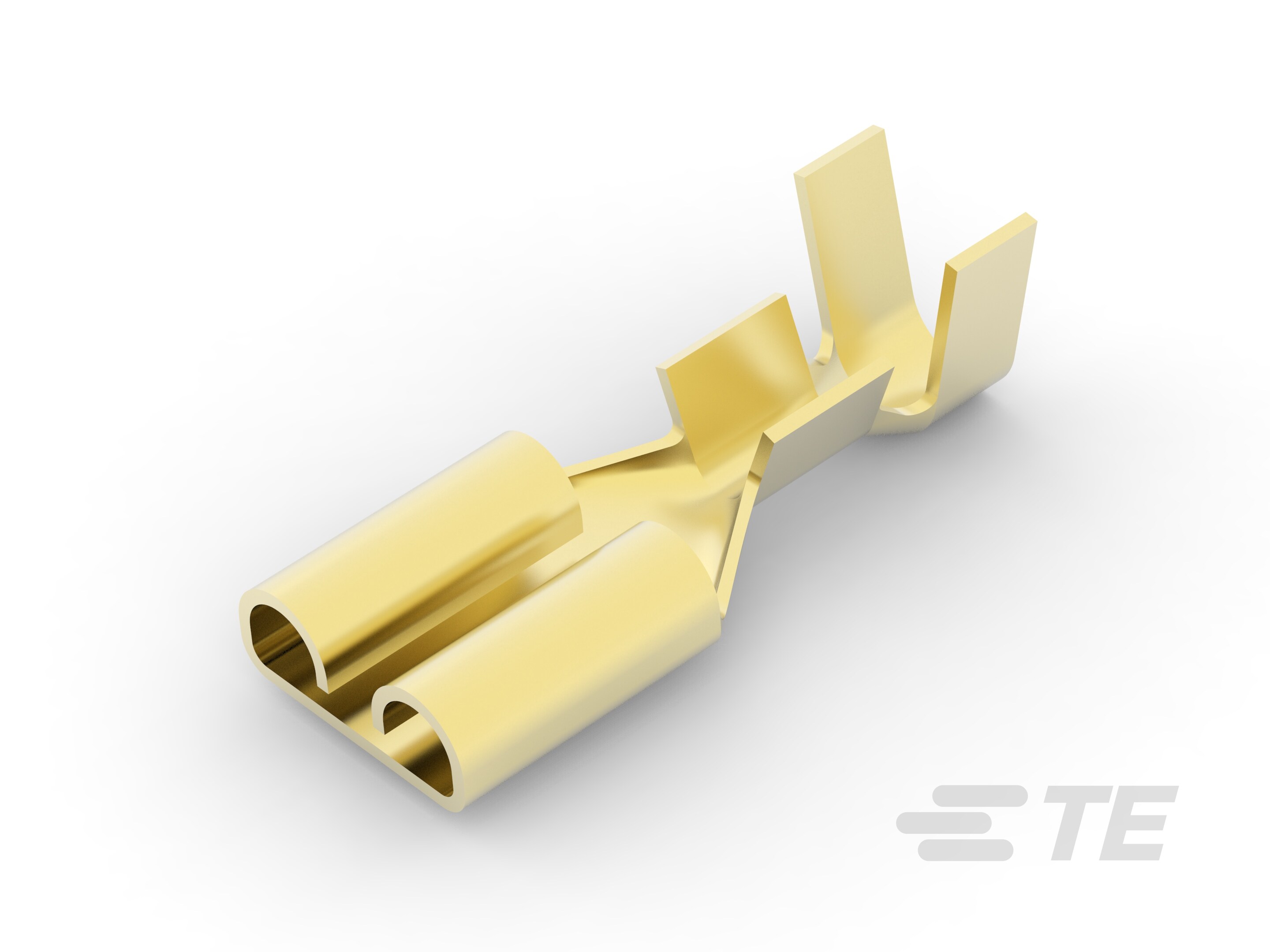

TE Connectivity AMP Connectors 42198-2	Non-Insulated	17.5 AWG	22 AWG	Brass	Crimp	Standard	0.51 mm	0.02 in			5.21 mm	0.205 in	0.25 in	6.35 mm	Female	Free Hanging (In-Line)		Tin					2.16 mm	0.125 "	3.18 mm	0.085 "	15.65 mm	0.616 in
TE Connectivity AMP Connectors 42781-2	Non-Insulated	14 AWG	18 AWG	Brass	Crimp	Standard	0.51 mm	0.02 in	15.62 mm	0.615 in	5.21 mm	0.205 in	0.25 in	6.35 mm	Female	Free Hanging (In-Line)		Tin					3.3 mm	0.18 in	4.57 mm	0.13 in
TE Connectivity AMP Connectors 42197-2	Non-Insulated	17.5 AWG	22 AWG	Brass	Crimp	Standard	0.51 mm	0.02 in	11.89 mm	0.468 in	5.21 mm	0.205 in	0.246 in	6.25 mm	Female	Free Hanging (In-Line)		Tin
