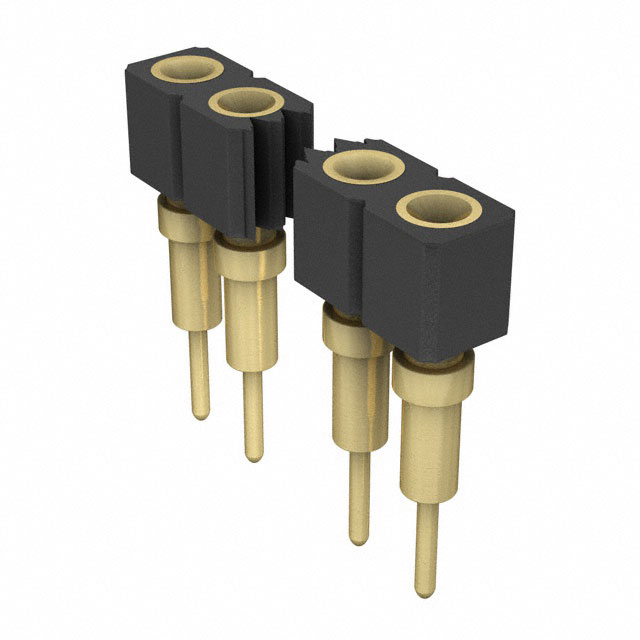

712-87 Series

Manufacturer: Preci-Dip

Catalog

CONN PIN RCPT .016-.022 SOLDER

Part	Insertion Force	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Length - Overall	Length - Overall	Tail Diameter [diameter]	Tail Diameter [diameter]	Socket Depth	Socket Depth	Termination	Contact Material	Contact Finish	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]
Preci-Dip 712-87-151-41-001101	2 N	-55 C	125 °C	Standard Tail	0.072 "	1.83 mm	Flash	0.29 in	7.37 mm	0.51 mm	0.02 in	0.146 in	3.71 mm	Solder	Beryllium Copper	Gold	0.022 in	0.41 mm	0.56 mm	0.016 in
Preci-Dip 712-87-110-41-001101	2 N	-55 C	125 °C	Standard Tail	0.072 "	1.83 mm	Flash	0.29 in	7.37 mm	0.51 mm	0.02 in	0.146 in	3.71 mm	Solder	Beryllium Copper	Gold	0.022 in	0.41 mm	0.56 mm	0.016 in
Preci-Dip 712-87-161-41-001101	2 N	-55 C	125 °C	Standard Tail	0.072 "	1.83 mm	Flash	0.29 in	7.37 mm	0.51 mm	0.02 in	0.146 in	3.71 mm	Solder	Beryllium Copper	Gold	0.022 in	0.41 mm	0.56 mm	0.016 in
Preci-Dip 712-87-104-41-001101	2 N	-55 C	125 °C	Standard Tail	0.072 "	1.83 mm	Flash	0.29 in	7.37 mm	0.51 mm	0.02 in	0.146 in	3.71 mm	Solder	Beryllium Copper	Gold	0.022 in	0.41 mm	0.56 mm	0.016 in
Preci-Dip 712-87-117-41-001101	2 N	-55 C	125 °C	Standard Tail	0.072 "	1.83 mm	Flash	0.29 in	7.37 mm	0.51 mm	0.02 in	0.146 in	3.71 mm	Solder	Beryllium Copper	Gold	0.022 in	0.41 mm	0.56 mm	0.016 in
Preci-Dip 712-87-153-41-001101	2 N	-55 C	125 °C	Standard Tail	0.072 "	1.83 mm	Flash	0.29 in	7.37 mm	0.51 mm	0.02 in	0.146 in	3.71 mm	Solder	Beryllium Copper	Gold	0.022 in	0.41 mm	0.56 mm	0.016 in
Preci-Dip 712-87-139-41-001101	2 N	-55 C	125 °C	Standard Tail	0.072 "	1.83 mm	Flash	0.29 in	7.37 mm	0.51 mm	0.02 in	0.146 in	3.71 mm	Solder	Beryllium Copper	Gold	0.022 in	0.41 mm	0.56 mm	0.016 in
Preci-Dip 712-87-113-41-001101	2 N	-55 C	125 °C	Standard Tail	0.072 "	1.83 mm	Flash	0.29 in	7.37 mm	0.51 mm	0.02 in	0.146 in	3.71 mm	Solder	Beryllium Copper	Gold	0.022 in	0.41 mm	0.56 mm	0.016 in
Preci-Dip 712-87-146-41-001101	2 N	-55 C	125 °C	Standard Tail	0.072 "	1.83 mm	Flash	0.29 in	7.37 mm	0.51 mm	0.02 in	0.146 in	3.71 mm	Solder	Beryllium Copper	Gold	0.022 in	0.41 mm	0.56 mm	0.016 in
Preci-Dip 712-87-140-41-001101	2 N	-55 C	125 °C	Standard Tail	0.072 "	1.83 mm	Flash	0.29 in	7.37 mm	0.51 mm	0.02 in	0.146 in	3.71 mm	Solder	Beryllium Copper	Gold	0.022 in	0.41 mm	0.56 mm	0.016 in
