53S101 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN ADAPT PLUG-PLUG N 50 OHM
| Part | Center Contact Material | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Finish | Dielectric Material | Impedance | Convert From (Adapter End) | Center Gender | Frequency - Max [Max] | Conversion Type | Convert To (Adapter End) | Mounting Type | Adapter Type | Adapter Series | Center Contact Plating | Style | Includes | Voltage Rating | Insertion Loss | Housing Color | Number of Ports | Shield Termination | Cable Group | Connector Type | Fastening Type | Contact Termination | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

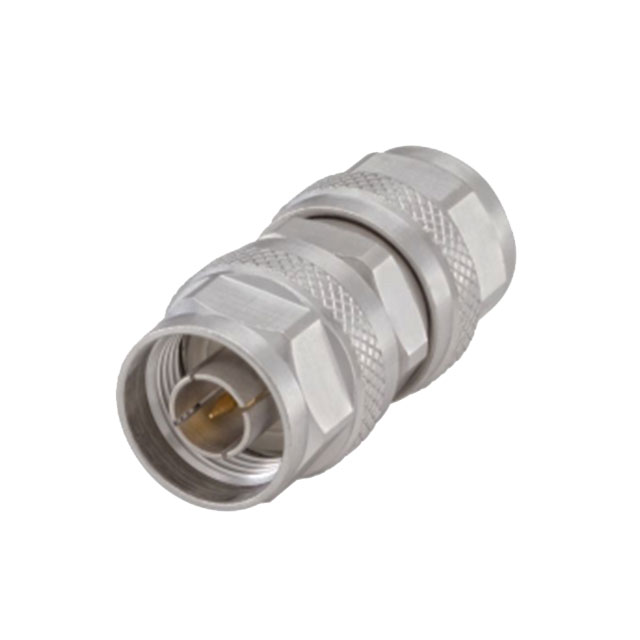

 Rosenberger | Brass | Brass | 155 C | -55 C | 500 | White Bronze | Polytetrafluoroethylene (PTFE) | 50 Ohms | N Plug Male Pin | Male to Male | 11 GHz | Same Series | N Plug Male Pin | Free Hanging (In-Line) | Plug to Plug | N to N | Gold | Straight | |||||||||||

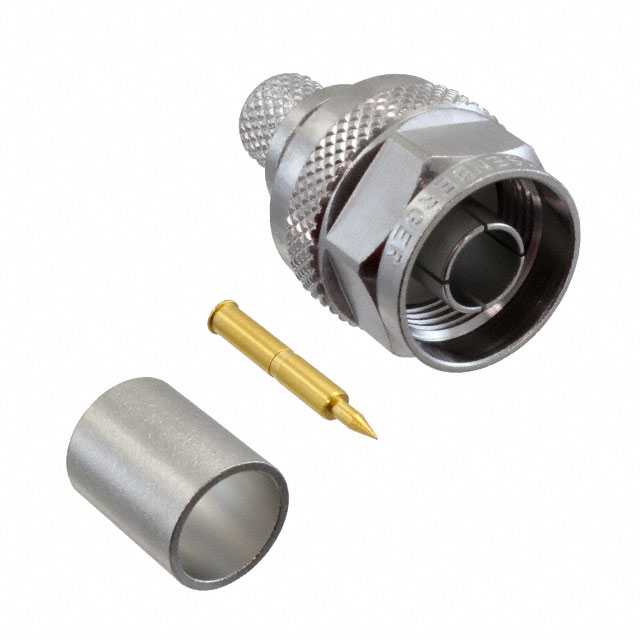

 Rosenberger | Brass | Brass | 155 C | -55 C | 500 | White Bronze | Polytetrafluoroethylene (PTFE) | 50 Ohms | 11 GHz | Free Hanging (In-Line) | Gold | 1 Connector 1 Contact 1 Ferrule | 500 V | 0.05 dB | Silver | 1 | Crimp | RG-213 | Plug Male Pin | Threaded | Crimp | N Type | |||||||

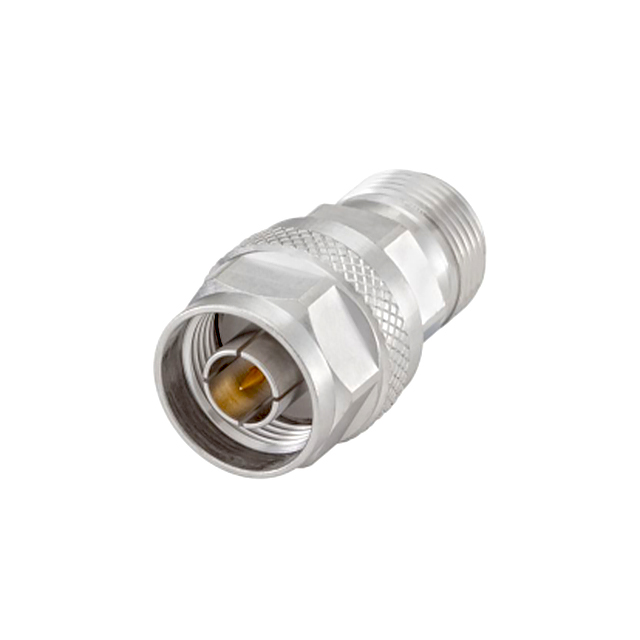

 Rosenberger | Beryllium Copper | Brass | 155 C | -55 C | 500 | White Bronze | Polytetrafluoroethylene (PTFE) | 50 Ohms | N Plug Male Pin | 11 GHz | Same Series | N Jack Female Socket | Free Hanging (In-Line) | Plug to Jack | N to N | Gold | Straight | ||||||||||||

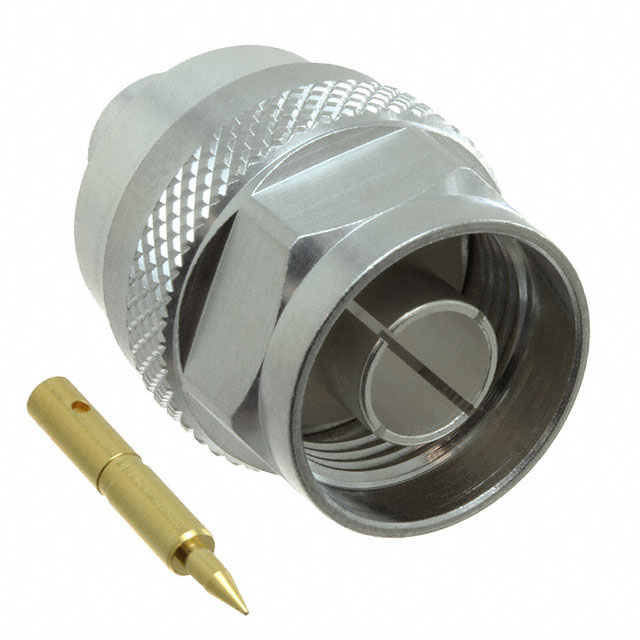

 Rosenberger | Brass | Brass | 155 C | -55 C | 500 | Silver | Polytetrafluoroethylene (PTFE) | 50 Ohms | 11 GHz | Free Hanging (In-Line) | Gold | 500 V | 0.05 dB | Silver | 1 | Solder | RG-401 (.250" Semi Rigid) | Plug Male Pin | Threaded | Solder | N Type |
