CF4113LBL Series
Manufacturer: Sunon Fans
Beta
⌘K

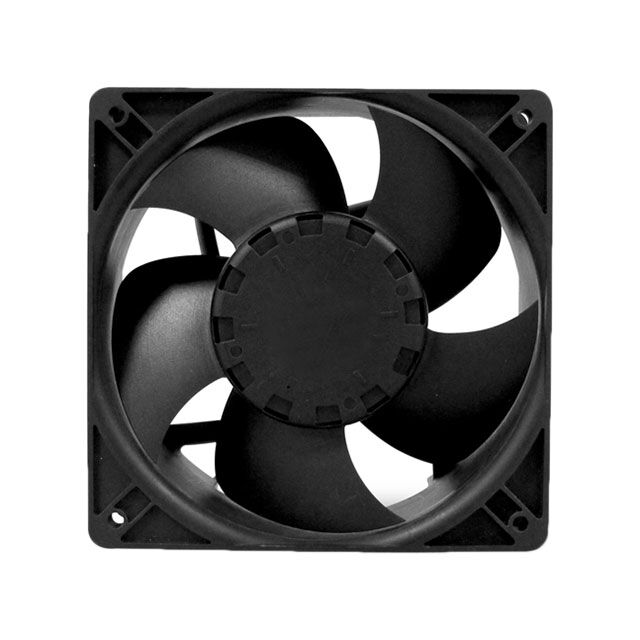

FAN AXIAL 120X38MM 100-240V
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Current Rating (Amps) [Max] | Current Rating (Amps) [Min] | RPM | Width [y] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Air Flow | Air Flow | Features | Static Pressure | Static Pressure | Bearing Type | Noise | Voltage - Rated [Max] | Voltage - Rated [Min] | Approval Agency | Power (Watts) | Weight | Weight | Termination | Fan Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sunon Fans | 265 VAC | 90 VAC | Polybutylene Terephthalate (PBT) | 0.037 A | 0.022 A | 2000 RPM | 38 mm | 70 °C | -25 °C | 120 mm | 120 mm | 64.3 CFM | 1.8 m³/min | Auto Restart Dual Voltage Electronic Commutation (EC) | 42.3 Pa | 0.17 in H2O | Ball | 31.4 dB(A) | 230 VAC | 110 VAC | CE cUR TUV UL | 1.8 W | 269.89 g | 0.595 lb | 2 Wire Leads | Tubeaxial |
