BMR457 Series

Catalog

DC DC CONVERTER 12V 264W

Part	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Control Features	Approval Agency	Power (Watts)	Number of Outputs	Applications	Supplier Device Package	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Package / Case	Type	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Isolation	Mounting Type	Standard Number
Flex Power Modules BMR4570104/001	Adjustable Output Baseplate PMBus™ Remote On/Off Remote Sense	0.52 in	22.7 mm	58.4 mm	0.89 in	2.3 in	13.2 mm	Active Low Enable	CB CSA IEC TUV UL	264 W	1	ITE (Commercial)	Eighth Brick	95.2 %	-40 °C	125 °C	75 V	Eighth Brick	Intermediate Bus Converter Digital	22 A	12 V	36 V	2250 VDC	Through Hole	62368-1
Flex Power Modules BMR4570105/001	Adjustable Output Baseplate PMBus™ Remote On/Off Remote Sense	0.52 in	22.7 mm	58.4 mm	0.89 in	2.3 in	13.2 mm	Active Low Enable	CB CSA IEC TUV UL	264 W	1	ITE (Commercial)	Eighth Brick	95.2 %	-40 °C	125 °C	75 V	Eighth Brick	Intermediate Bus Converter Digital	22 A	12 V	36 V	2250 VDC	Through Hole	62368-1

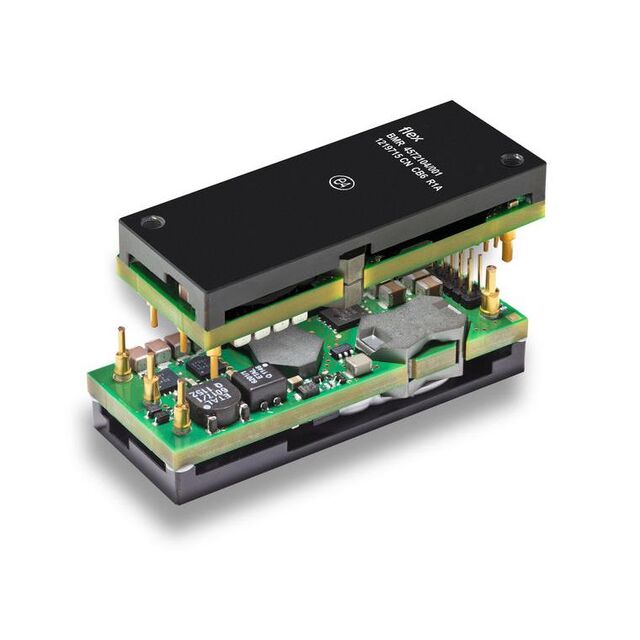

Flex Power Modules BMR4570001/002	Adjustable Output PMBus™ Remote On/Off Remote Sense	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	Active Low Enable	CB CSA IEC TUV UL	300 W	1	ITE (Commercial)	Eighth Brick	95.2 %	-40 °C	125 °C	60 V	Eighth Brick	Intermediate Bus Converter Digital	25 A	12 V	40 V	2250 VDC	Through Hole	62368-1
Flex Power Modules BMR4570012/016	Adjustable Output PMBus™ Remote On/Off Remote Sense	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	Active Low Enable	CB CSA IEC TUV UL	300 W	1	ITE (Commercial)	Eighth Brick	95.2 %	-40 °C	125 °C	60 V	Eighth Brick	Intermediate Bus Converter Digital	25 A	12 V	40 V	2250 VDC	Through Hole	62368-1
Flex Power Modules BMR4570005/001	Adjustable Output PMBus™ Remote On/Off Remote Sense	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	Active Low Enable	CB CSA IEC TUV UL	264 W	1	ITE (Commercial)	Eighth Brick	95.2 %	-40 °C	125 °C	75 V	Eighth Brick	Intermediate Bus Converter Digital	22 A	12 V	36 V	2250 VDC	Through Hole	62368-1
Flex Power Modules BMR4570006/014	Adjustable Output Load Sharing Remote On/Off Remote Sense	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	Active Low Enable	CB CSA IEC TUV UL	274 W	1	ITE (Commercial)	Eighth Brick	95.2 %	-40 °C	125 °C	75 V	Eighth Brick	Intermediate Bus Converter Digital	22 A		36 V	2250 VDC	Through Hole	62368-1
Flex Power Modules BMR4570006/013	Adjustable Output PMBus™ Remote On/Off Remote Sense	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	Active Low Enable	CB CSA IEC TUV UL	264 W	1	ITE (Commercial)	Eighth Brick	95.2 %	-40 °C	125 °C	75 V	Eighth Brick	Intermediate Bus Converter Digital	22 A	12 V	36 V	2250 VDC	Through Hole	62368-1
Flex Power Modules BMR4570012/017	Adjustable Output PMBus™ Remote On/Off Remote Sense	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	Active Low Enable	CB CSA IEC TUV UL	311 W	1	ITE (Commercial)	Eighth Brick	95.2 %	-40 °C	125 °C	60 V	Eighth Brick	Intermediate Bus Converter Digital	25 A		40 V	2250 VDC	Through Hole	62368-1
Flex Power Modules BMR4570004/001	Adjustable Output PMBus™ Remote On/Off Remote Sense	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	Active Low Enable	CB CSA IEC TUV UL	264 W	1	ITE (Commercial)	Eighth Brick	95.2 %	-40 °C	125 °C	75 V	Eighth Brick	Intermediate Bus Converter Digital	22 A	12 V	36 V	2250 VDC	Through Hole	62368-1
