ZM10E Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACT SPDT 100MA 125V

Part	Actuator Type	Voltage Rating - AC	Circuit	Switch Function	Voltage Rating - DC	Termination Style	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel [custom]	Overtravel [custom]	Mechanical Life	Operating Position	Operating Position	Current Rating (Amps)	Differential Travel	Differential Travel	Operating Force	Release Force	Electrical Life	Mounting Type	Features	Ingress Protection
Honeywell Sensing and Productivity Solutions ZM10E10B01	Lever Straight	125 V	SPDT	On-Mom	30 V	Solder Lug	0.14 in	3.6 mm	120 °C	-40 C	0.025 in	0.6 mm	10000000 Cycles	0.465 in	11.8 mm	100 mA	0.81 mm	0.032 in	35 gf	10 gf	10000 Cycles	Chassis Mount
Honeywell Sensing and Productivity Solutions ZM10E10C01	Lever Straight	125 V	SPDT	On-Mom	30 V	Solder Lug	0.157 in	4 mm	120 °C	-40 C	0.025 in	0.6 mm	10000000 Cycles	0.465 in	11.8 mm	100 mA	0.81 mm	0.032 in	33 gf	8 gf	10000 Cycles	Chassis Mount

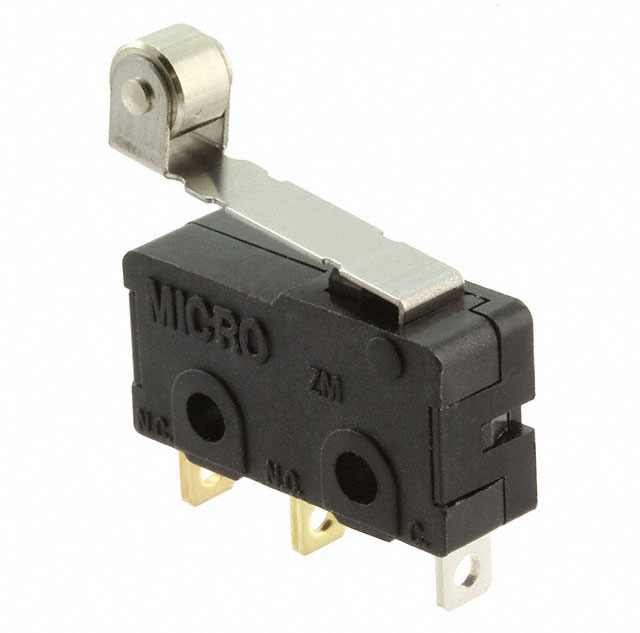

Honeywell Sensing and Productivity Solutions ZM10E10F01	Lever Roller	125 V	SPDT	On-Mom	30 V	Solder Lug	0.15 in	3.8 mm	120 °C	-40 C	0.03 "	0.76 mm	10000000 Cycles	0.689 in	17.5 mm	100 mA	0.76 mm	0.03 in	35 gf	8 gf	10000 Cycles	Chassis Mount
Honeywell Sensing and Productivity Solutions ZM10E20H01	Lever Simulated Roller	125 V	SPDT	On-Mom	30 V	PC Pin	0.18 in	4.6 mm	120 °C	-40 C	0.03 "	0.76 mm	10000000 Cycles	0.539 in	13.7 mm	100 mA	0.76 mm	0.03 in	35 gf	8 gf	10000 Cycles	Through Hole
Honeywell Sensing and Productivity Solutions ZM10E60E01	Lever Simulated Roller	125 V	SPDT	On-Mom		PC Pin			125 °C	-40 C			1000000 Cycles			100 mA						Right Angle Through Hole	Actuator Mounted Left Side	IP40
Honeywell Sensing and Productivity Solutions ZM10E10F03	Lever Roller	125 V	SPST-NO	Off-Mom		Solder Lug			125 °C	-40 C			1000000 Cycles			100 mA						Chassis Mount		IP40
Honeywell Sensing and Productivity Solutions ZM10E50F01	Lever Roller	125 V	SPDT	On-Mom	30 V	PC Pin	0.15 in	3.8 mm	120 °C	-40 C	0.03 "	0.76 mm	10000000 Cycles	0.689 in	17.5 mm	100 mA	0.76 mm	0.03 in	35 gf	8 gf	10000 Cycles	Right Angle Through Hole

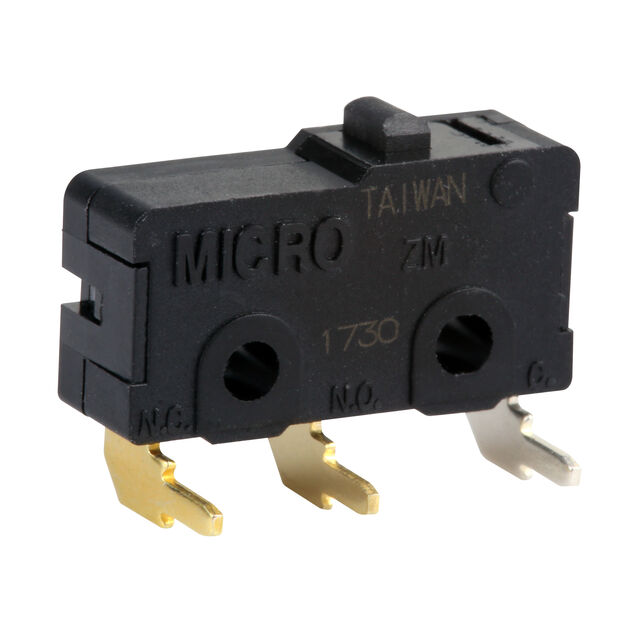

Honeywell Sensing and Productivity Solutions ZM10E50A01	Round (Pin Plunger)	125 V	SPDT	On-Mom	30 V	PC Pin	0.043 in	1.1 mm	120 °C	-40 C	0.015 "	0.4 mm	10000000 Cycles	0.449 "	11.4 mm	100 mA	0.2 mm	0.008 in	146 gf	35 gf	10000 Cycles	Right Angle Through Hole
Honeywell Sensing and Productivity Solutions ZM10E50B01	Lever Straight	125 V	SPDT	On-Mom	30 V	PC Pin	0.14 in	3.6 mm	120 °C	-40 C	0.025 in	0.6 mm	10000000 Cycles	0.465 in	11.8 mm	100 mA	0.81 mm	0.032 in	35 gf	10 gf	10000 Cycles	Right Angle Through Hole
