SSL-LX5099 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED GRN/RED DIFFUSED T-1 3/4 T/H

Part	Wavelength - Peak	Configuration	Package / Case	Lens Size	Lens Size	Mounting Type	Current - Test [custom]	Current - Test [custom]	Height (Max) [z]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Lens Transparency	Lens Style	Color	Supplier Device Package	Lens Color	Millicandela Rating	Current - Test	Current - Test	Size / Dimension [diameter]	Height (Max) [Max] [z]	Lens Size [diameter]

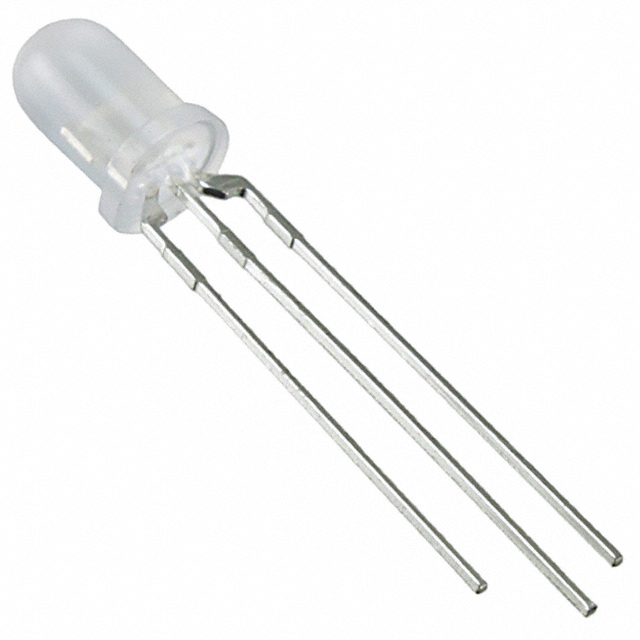

Lumex Opto/Components Inc. SSL-LX5099IGW	565 nm 635 nm	Common Cathode	Radial - 3 Leads	5 mm	T-1 3/4	Through Hole	20 mA	20 mA	11 mm	2 V 2.2 V	60 °	Diffused	Round with Domed Top	Green Red	T-1 3/4	White	45 mcd 55 mcd

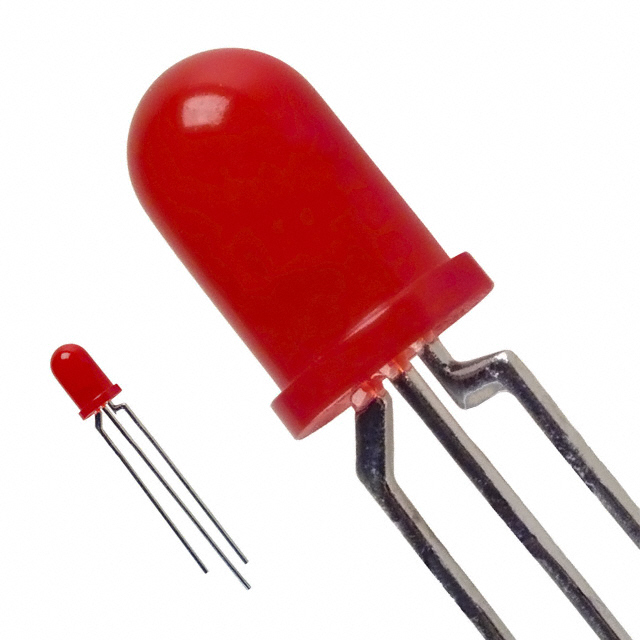

Lumex Opto/Components Inc. SSL-LX5099LBI-SRD	660 nm	Standard	Radial - 3 Leads	5 mm	T-1 3/4	Through Hole			11 mm		60 °	Diffused	Round with Domed Top	Red	T-1 3/4	Red	0.01 mcd	10.5 mA
Lumex Opto/Components Inc. SSL-LX5099SOPGW	555 nm 610 nm	Independent	Radial	5 mm	T-1 3/4	Through Hole				2 V 2.2 V	60 °	Diffused	Round with Domed Top	Green Orange	T-1 3/4	White	20 mcd 900 mcd		20mA Green 20mA Orange	5 mm	8.6 mm
Lumex Opto/Components Inc. SSL-LX5099GIW	565 nm 635 nm	Common Cathode	Radial - 3 Leads	5 mm	T-1 3/4	Through Hole	20 mA	20 mA	11 mm	2 V 2.2 V	60 °	Diffused	Round with Domed Top	Green Red	T-1 3/4	White	45 mcd 55 mcd
Lumex Opto/Components Inc. SSL-LX5099SISYW		Independent	Radial	5 mm	T-1 3/4	Through Hole				2 V 2 V	60 °	Diffused	Round with Domed Top	Red Yellow	T-1 3/4	White	500 mcd 800 mcd	20 mA 20 mA		5 mm	8.6 mm
Lumex Opto/Components Inc. SSL-LX5099IGW-CA	565 nm 635 nm	Common Anode	Radial - 3 Leads	5 mm	T-1 3/4	Through Hole	20 mA	20 mA	11 mm	2 V 2.2 V	60 °	Diffused	Round with Domed Top	Green Red	T-1 3/4	White	6 mcd 6 mcd
Lumex Opto/Components Inc. SSL-LX5099IGW-02	565 nm 635 nm	Independent	Radial	5 mm	T-1 3/4	Through Hole	20 mA	20 mA		2 V 2.2 V	60 °	Diffused	Round with Domed Top	Green Red	T-1 3/4	White	45 mcd 55 mcd			5 mm	8.6 mm
Lumex Opto/Components Inc. SSL-LX5099YGW	565 nm 585 nm	Common Cathode	Radial - 3 Leads	5 mm	T-1 3/4	Through Hole			11 mm	2.1 V 2.2 V	60 °	Diffused	Round with Domed Top	Green Yellow	T-1 3/4	White	20 mcd 20 mcd	20 mA 20 mA
Lumex Opto/Components Inc. SSL-LX5099YGW-CA	565 nm 585 nm	Common Anode	Radial - 3 Leads	5 mm	T-1 3/4	Through Hole			11 mm	2.1 V 2.2 V	60 °	Diffused	Round with Domed Top	Green Yellow	T-1 3/4	White	20 mcd 20 mcd	20 mA 20 mA

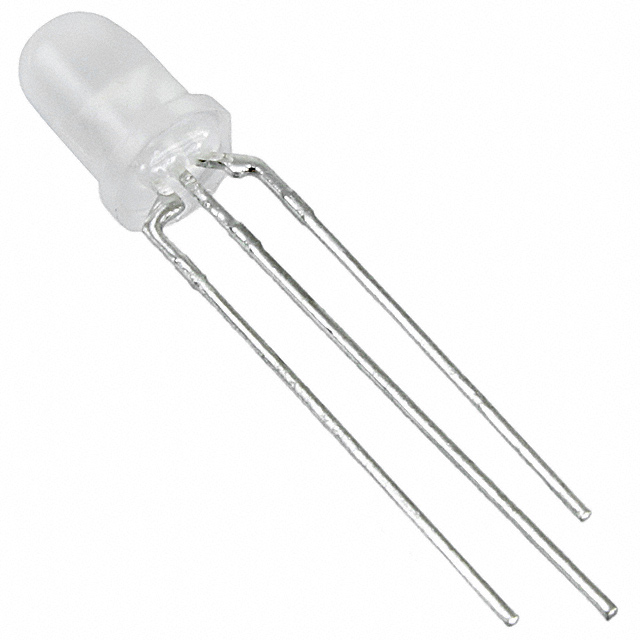

Lumex Opto/Components Inc. SSL-LX5099SISUGW	574 nm 636 nm		Radial - 3 Leads			Through Hole	20 mA	20 mA	11 mm	2 V 2.1 V	60 °	Diffused	Round with Domed Top	Green Red	T-1 3/4	White	200 mcd 700 mcd					5 mm
