ICC Series

Pluggable Terminal Blocks 5 Pos 5.08mm Invert Plug 20-14AWG Crimp

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 5 Pos 5.08mm Invert Plug 20-14AWG Crimp

Catalog

Pluggable Terminal Blocks 5 Pos 5.08mm Invert Plug 20-14AWG Crimp

Part	Number of Levels	Type	Current - UL	Voltage - IEC	Color	Pitch	Pitch	Voltage - UL	Number of Positions	Positions Per Level	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - IEC	Mounting Type	Plug Wire Entry	Features	Material Flammability Rating	Housing Material	Insulation Height [z]	Insulation Height [z]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
Phoenix Contact 1823707	1	Plug Housing for Male Pins	10 A	630 V	Green	5.08 mm	0.2 in	300 V	11	11	14 AWG	20 AWG	2.5 mm²	0.5 mm²	12 A	Free Hanging (In-Line)	180 °	Mating Flange
Phoenix Contact 1823998	1	Plug Housing for Male Pins	10 A	630 V	Green	5.08 mm	0.2 in	300 V		17	14 AWG	20 AWG	2.5 mm²	0.5 mm²	12 A	Free Hanging (In-Line)	180 °	Locking Ramp	UL94 V-0	Polyamide (PA) Nylon	10.6 mm	0.417 in

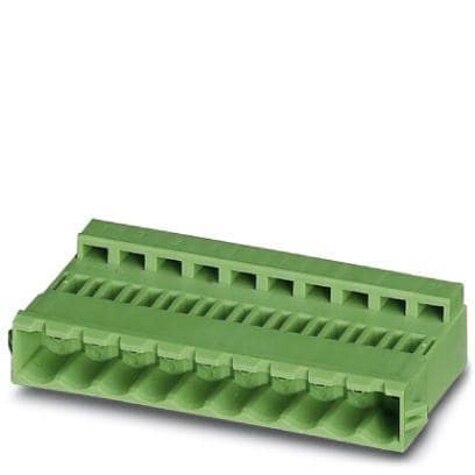

Phoenix Contact 1823969	1	Plug Housing for Male Pins	10 A	630 V	Green	5.08 mm	0.2 in	300 V	14	14	14 AWG	20 AWG	2.5 mm²	0.5 mm²	12 A	Free Hanging (In-Line)	180 °	Locking Ramp	UL94 V-0	Polyamide (PA) Nylon	10.6 mm	0.417 in

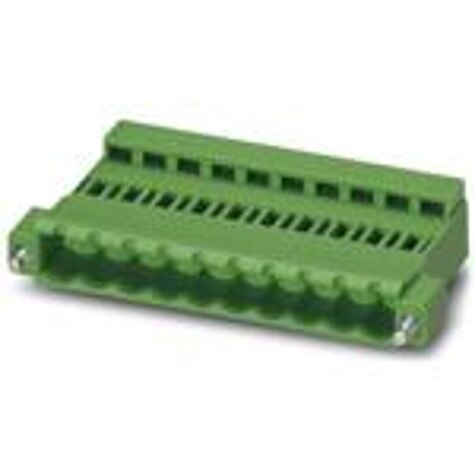

Phoenix Contact 1823419	1	Plug Housing for Male Pins	10 A	630 V	Green	5.08 mm	0.2 in	300 V	5	5	14 AWG	20 AWG	2.5 mm²	0.5 mm²	12 A	Free Hanging (In-Line)	180 °	Mating Flange	UL94 V-0	Polyamide (PA) Nylon	10.6 mm	0.417 in
Phoenix Contact 1823736	1	Plug Housing for Male Pins	10 A	630 V	Green	5.08 mm	0.2 in	300 V	14	14	14 AWG	20 AWG	2.5 mm²	0.5 mm²	12 A	Free Hanging (In-Line)	180 °	Mating Flange

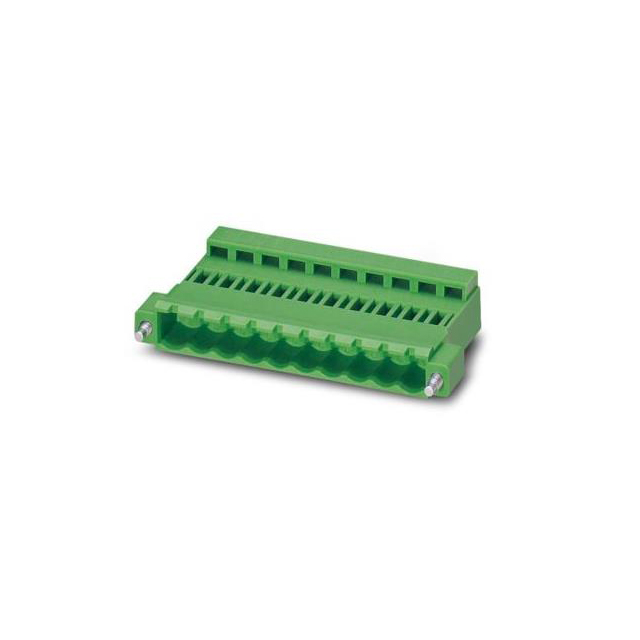

Phoenix Contact 1823406	1	Plug Housing for Male Pins	10 A	630 V	Green	5.08 mm	0.2 in	300 V	4	4	14 AWG	20 AWG	2.5 mm²	0.5 mm²	12 A	Free Hanging (In-Line)	180 °	Mating Flange	UL94 V-0	Polyamide (PA) Nylon	10.6 mm	0.417 in	2.5 mm˛	0.5 mm˛
