HDF-S26 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, IP67, HIGH DENSITY, RECEPTACLE, NANOOK SERIES, 26 CONTACTS, DA, SOLDER CUP
| Part | Color | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Contact Material | Number of Rows [custom] | Number of Positions | Material Flammability Rating | Current Rating (Amps) | Contact Finish | Connector Style | Contact Type | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Mounting Type | Flange Feature | Ingress Protection | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Features | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

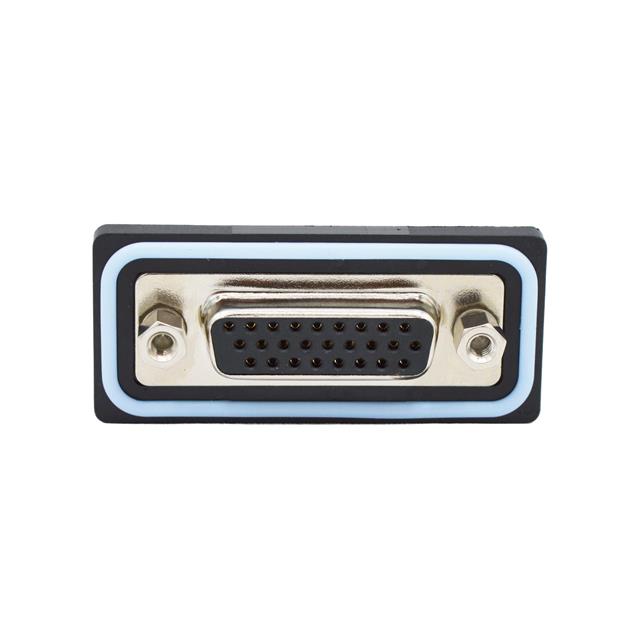

 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | 3 | 26 | UL94 V-0 | 3 A | Gold | D-Sub High Density | Signal | Receptacle Female Sockets | 2 | DA A | Panel Mount | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | 30 Áin | 0.76 Ám | Nickel Plated Steel | ||

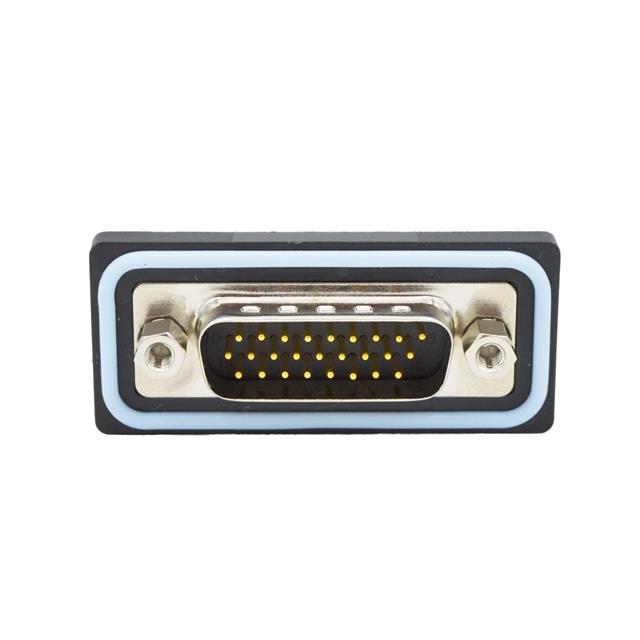

 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | 3 | 26 | UL94 V-0 | 3 A | Gold | D-Sub High Density | Signal | Plug Male Pins | 2 | DA A | Panel Mount | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | 30 Áin | 0.76 Ám | Nickel Plated Steel | Grounding Indents | |
 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | 3 | 26 | UL94 V-0 | 3 A | Gold | D-Sub High Density | Signal | Receptacle Female Sockets | 2 | DA A | Panel Mount | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Flash |
