K14-271 Series
Manufacturer: EAO
Beta
⌘K
SWITCH PB DPST-NO/NC 5A 250V
| Part | Mechanical Life | Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Illumination Voltage (Nominal) | Switch Function | Actuator Marking | Circuit | Color - Actuator/Cap | Ingress Protection | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Mounting Type | Illumination Type, Color | Actuator Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

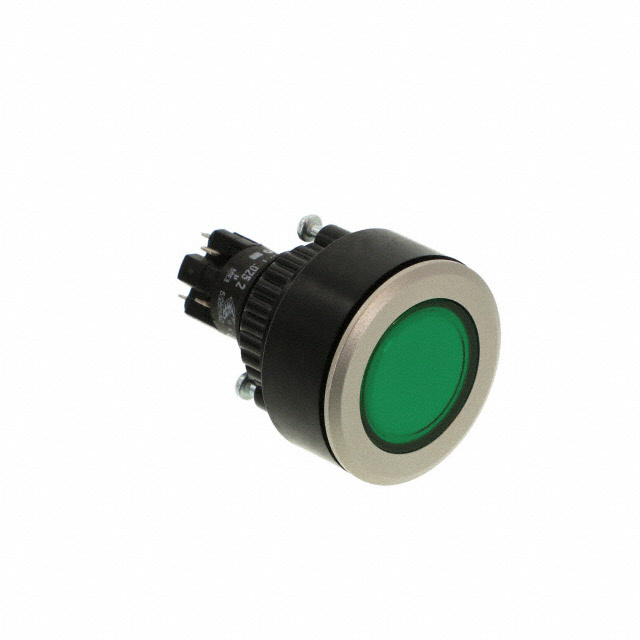

1000000 Cycles | Illuminated Standard | Solder Lug | 55 °C | -25 °C | 250 V | 24 VAC/DC | Off-On On-Off | No Marking | DPST-NO/NC | Green | IP67 - Dust Tight Waterproof | 5 A | 30.5 mm | Panel Mount Front | Green LED | Button Flush Round | ||

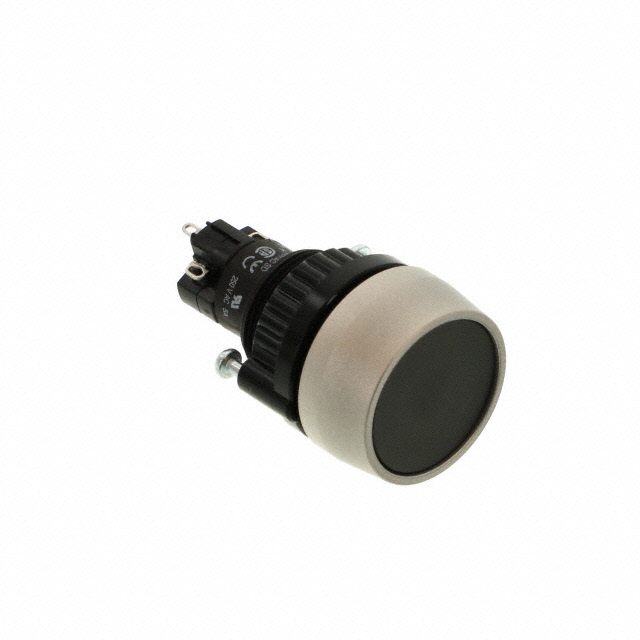

1000000 Cycles | Standard | Solder Lug | 55 °C | -25 °C | 250 V | Off-On On-Off | No Marking | DPST-NO/NC | Black | IP67 - Dust Tight Waterproof | 5 A | 22.3 mm | Panel Mount Front | Button Flush Round | ||||
1000000 Cycles | Illuminated Standard | Solder Lug | 55 °C | -25 °C | 250 V | 24 VAC/DC | Off-On On-Off | No Marking | DPST-NO/NC | Green | IP67 - Dust Tight Waterproof | 5 A | 22.3 mm | Panel Mount Front | Green LED | Button Flush Round | 250 V | |

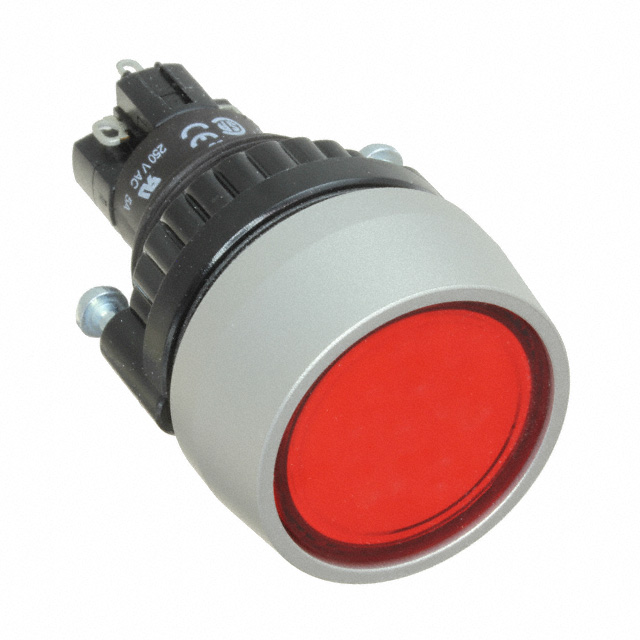

1000000 Cycles | Illuminated Standard | Solder Lug | 55 °C | -25 °C | 250 V | 24 VAC/DC | Off-On On-Off | No Marking | DPST-NO/NC | Red | IP67 - Dust Tight Waterproof | 5 A | 22.3 mm | Panel Mount Front | LED Red | Button Flush Round | 250 V | |

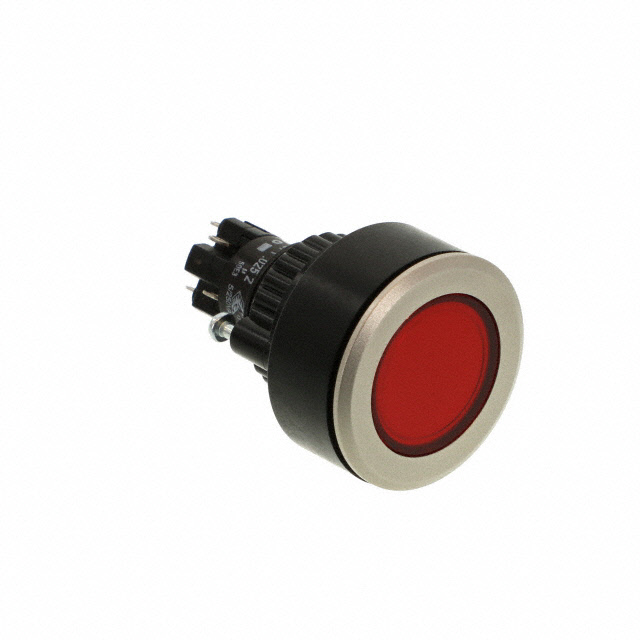

1000000 Cycles | Illuminated Standard | Solder Lug | 55 °C | -25 °C | 250 V | 24 VAC/DC | Off-On On-Off | No Marking | DPST-NO/NC | Red | IP67 - Dust Tight Waterproof | 5 A | 30.5 mm | Panel Mount Front | LED Red | Button Flush Round |
