726-030 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 30POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Contact Material	Read Out	Termination	Mounting Type	Number of Positions	Number of Rows [custom]	Color	Gender	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Number of Positions/Bay/Row	Contact Finish	Card Type	Contact Type	Termination Rows	Number of Rows

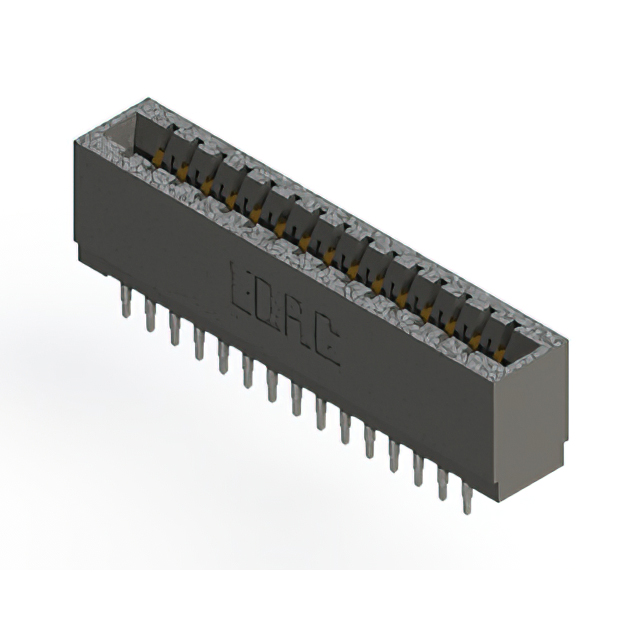

EDAC Inc. 726-030-520-201	2	Polyester Thermoplastic	Copper Alloy	Dual	Press-Fit	Through Hole	30	2	Black	Female	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	15	Gold	Non Specified - Dual Edge	Cantilever
EDAC Inc. 726-030-545-101		Polyester Thermoplastic	Copper Alloy	Single	Press-Fit Wire Wrap	Through Hole	30		Black	Female	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	30	Gold	Non Specified - Single Edge	Cantilever	1	1
EDAC Inc. 726-030-520-101		Polyester Thermoplastic	Copper Alloy	Single	Press-Fit	Through Hole	30		Black	Female	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	30	Gold	Non Specified - Single Edge	Cantilever	1	1

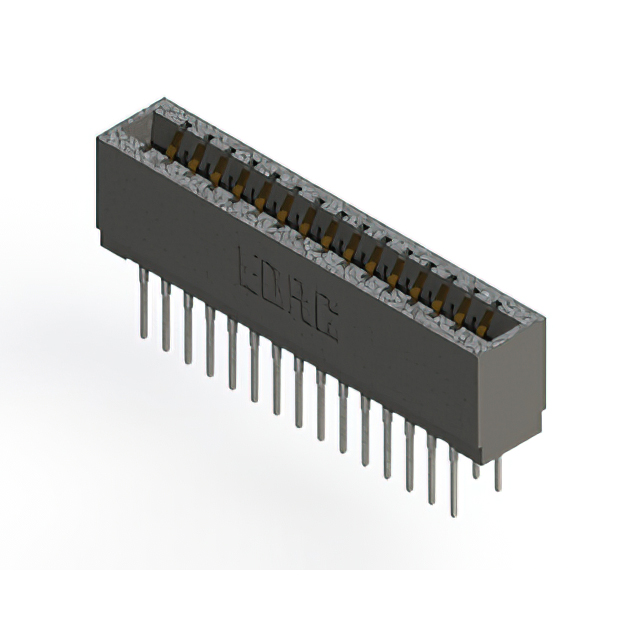

EDAC Inc. 726-030-527-201	2	Polyester Thermoplastic	Copper Alloy	Dual	Press-Fit	Through Hole	30	2	Black	Female	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	15	Gold	Non Specified - Dual Edge	Cantilever
EDAC Inc. 726-030-540-101		Polyester Thermoplastic	Copper Alloy	Single	Press-Fit Wire Wrap	Through Hole	30		Black	Female	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	30	Gold	Non Specified - Single Edge	Cantilever	1	1

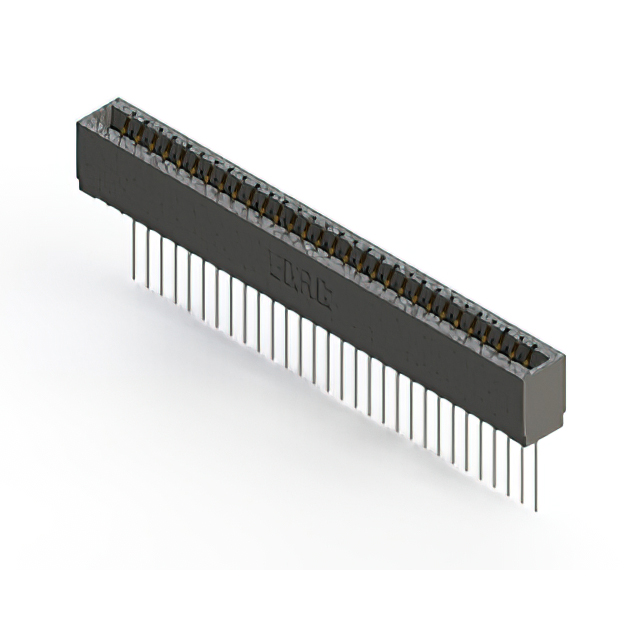

EDAC Inc. 726-030-541-101		Polyester Thermoplastic	Copper Alloy	Single	Press-Fit Wire Wrap	Through Hole	30		Black	Female	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	30	Gold	Non Specified - Single Edge	Cantilever	1	1

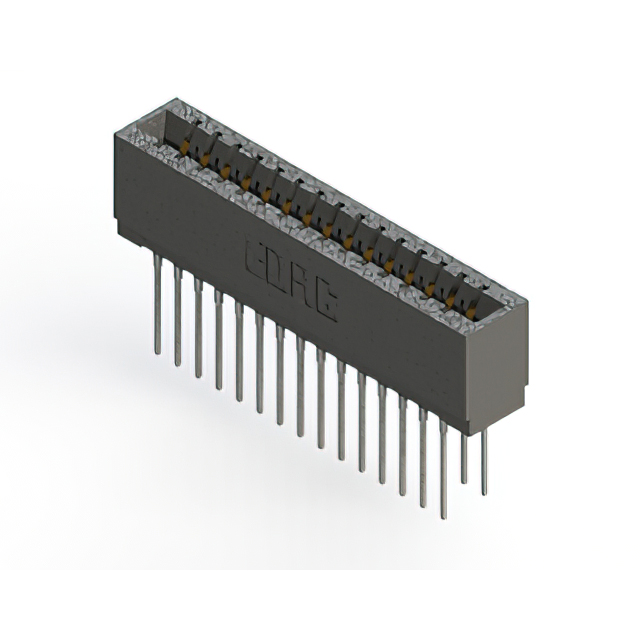

EDAC Inc. 726-030-540-201	2	Polyester Thermoplastic	Copper Alloy	Dual	Press-Fit Wire Wrap	Through Hole	30	2	Black	Female	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	15	Gold	Non Specified - Dual Edge	Cantilever
EDAC Inc. 726-030-527-101		Polyester Thermoplastic	Copper Alloy	Single	Press-Fit	Through Hole	30		Black	Female	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	30	Gold	Non Specified - Single Edge	Cantilever	1	1
EDAC Inc. 726-030-545-201	2	Polyester Thermoplastic	Copper Alloy	Dual	Press-Fit Wire Wrap	Through Hole	30	2	Black	Female	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	15	Gold	Non Specified - Dual Edge	Cantilever

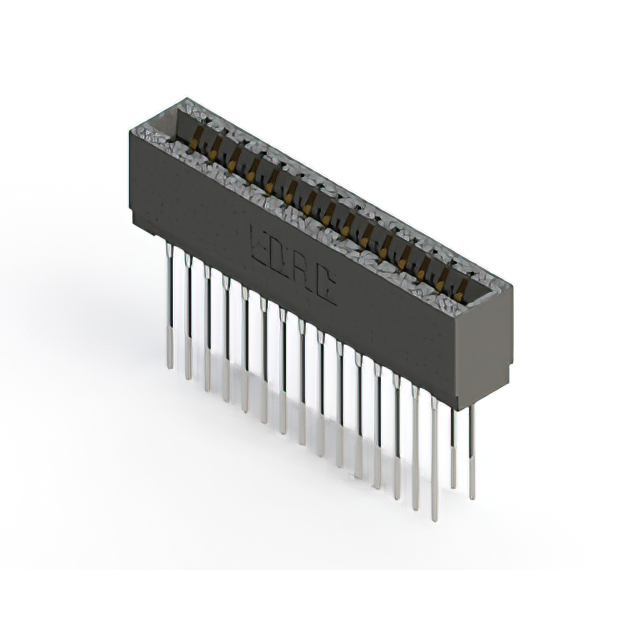

EDAC Inc. 726-030-541-201	2	Polyester Thermoplastic	Copper Alloy	Dual	Press-Fit Wire Wrap	Through Hole	30	2	Black	Female	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	15	Gold	Non Specified - Dual Edge	Cantilever
