3222 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RING CIRC 400MCM #3/8 CRIMP

Part	Stud/Tab Size	Mounting Type	Length - Overall [x]	Length - Overall [x]	Wire Gauge	Terminal Type	Insulation	Contact Material	Contact Finish	Features	Termination	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge [Max]	Wire Gauge [Min]	Number of Wire Entries	Shielding	Type	Length - Overall	Length - Overall	Thickness	Thickness

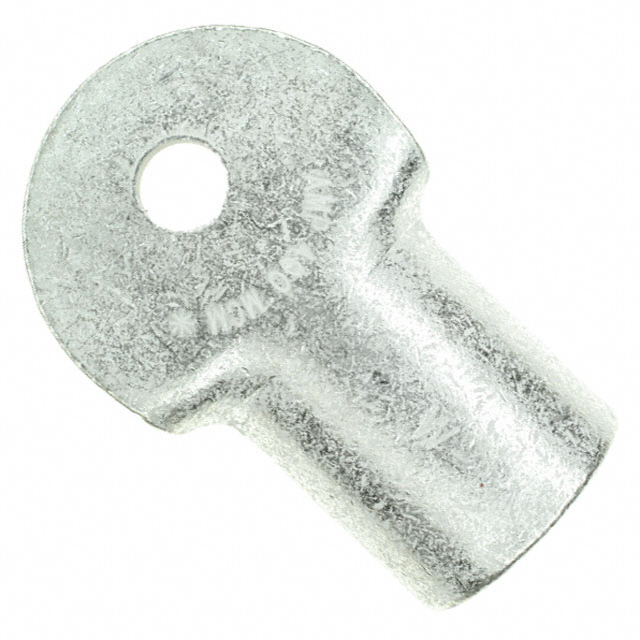

TE Connectivity Raychem Cable Protection 322262	3/8 Stud	Free Hanging (In-Line)	2.79 in	70.87 mm	400 MCM (kcmil)	Circular	Non-Insulated	Copper	Tin	Brazed Seam	Crimp	44.42 mm	1.749 in

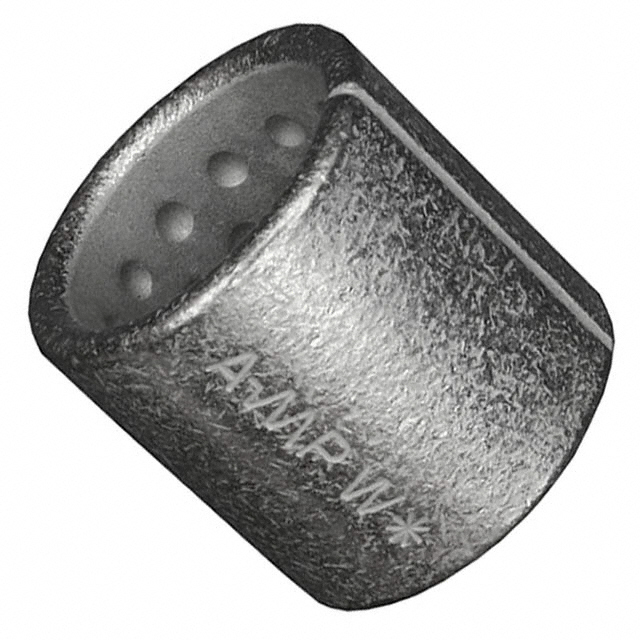

TE Connectivity Raychem Cable Protection 322276						Inline Individual Openings (Parallel)	Non-Insulated			Brazed Seam	Crimp			350 kcmil	300 kcmil	2
TE Connectivity Raychem Cable Protection 3222-02-340012-CS2360																	Shielded	Backshell Heat Shrink Adapter

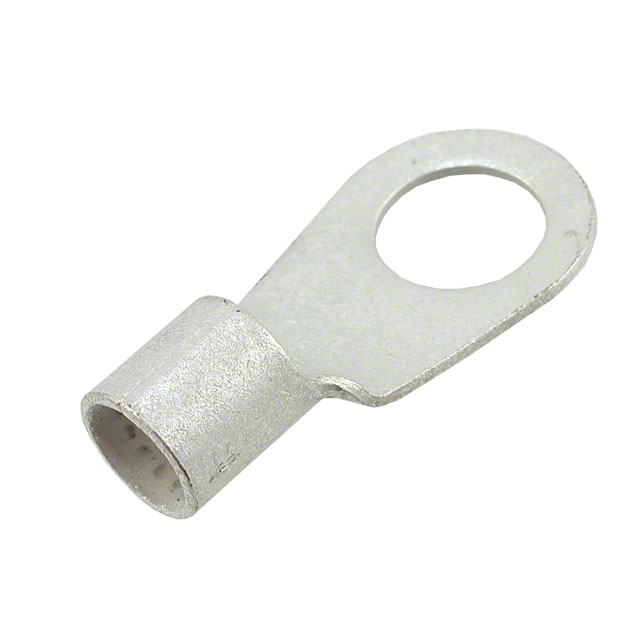

TE Connectivity Raychem Cable Protection 322225	3/4	Free Hanging (In-Line)				Circular	Non-Insulated	Copper	Tin	Brazed Seam Serrated Termination	Crimp	32.26 mm	1.27 in						67.84 mm	2.671 in	2.03 mm	0.08 "

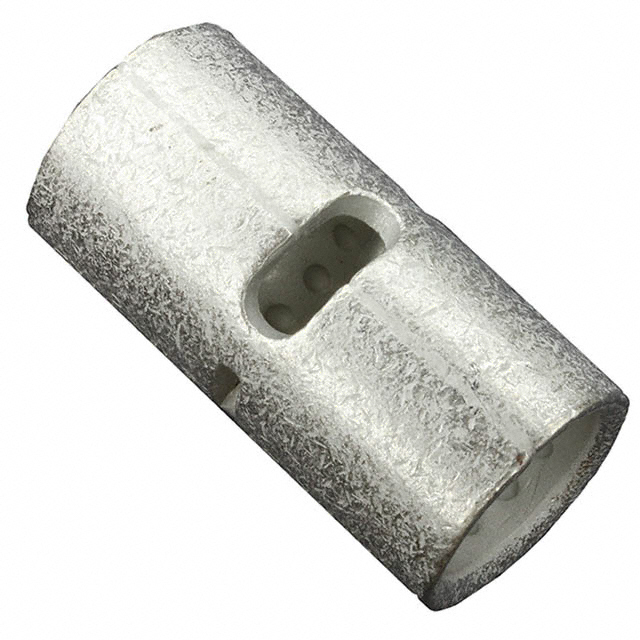

TE Connectivity Raychem Cable Protection 322279						Butt Splice Individual Openings Inline	Non-Insulated				Crimp			300 kcmil	250 kcmil	2

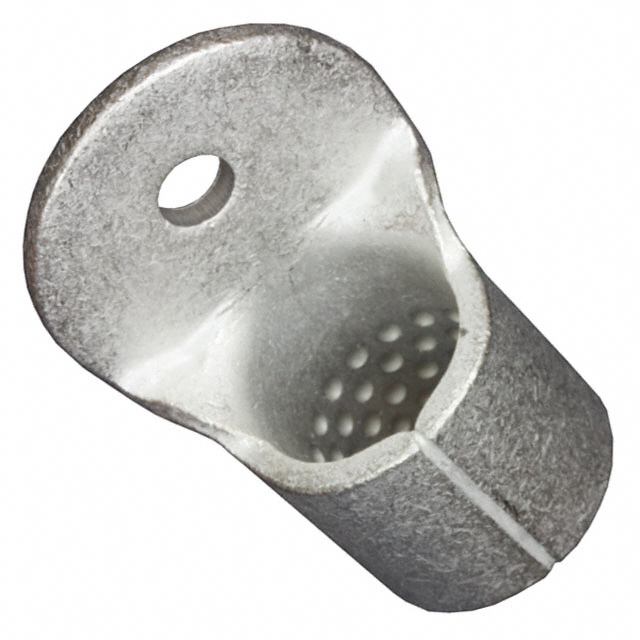

TE Connectivity Raychem Cable Protection 322267	3/8 Stud	Free Hanging (In-Line)	3.187 in	80.95 mm		Circular	Non-Insulated	Copper	Tin	Brazed Seam	Crimp	51.18 mm	2.015 in	600 MCM	500 MCM

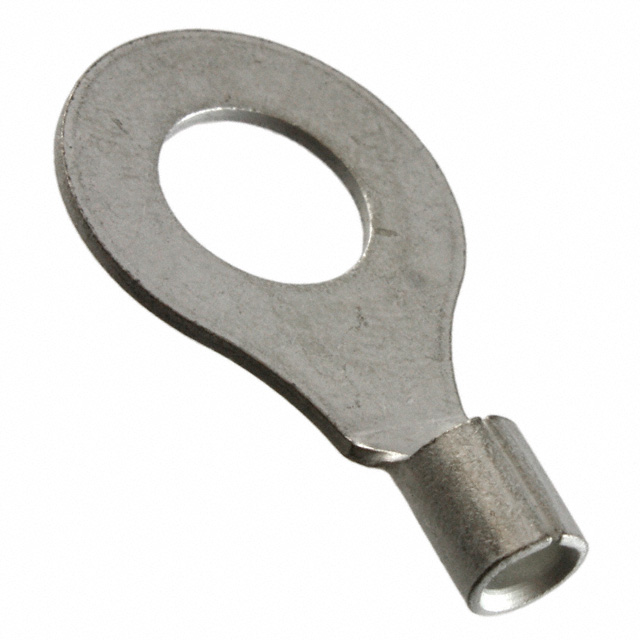

TE Connectivity Raychem Cable Protection 322242	3/8 Stud	Free Hanging (In-Line)	1.271 in	32.28 mm		Circular	Non-Insulated	Copper	Tin	Brazed Seam Serrated Termination	Crimp	19.05 mm	0.75 in	12 AWG	10 AWG						0.99 mm	0.039 in

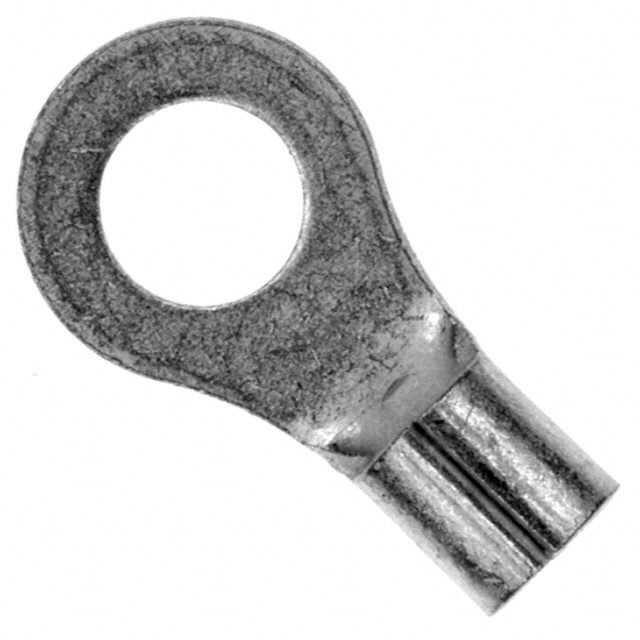

TE Connectivity Raychem Cable Protection 322235	8 Stud	Free Hanging (In-Line)	0.59 in	14.99 mm		Circular	Non-Insulated	Copper	Tin	Serrated Termination	Crimp	7.92 mm	0.312 in								0.79 mm	0.031 in

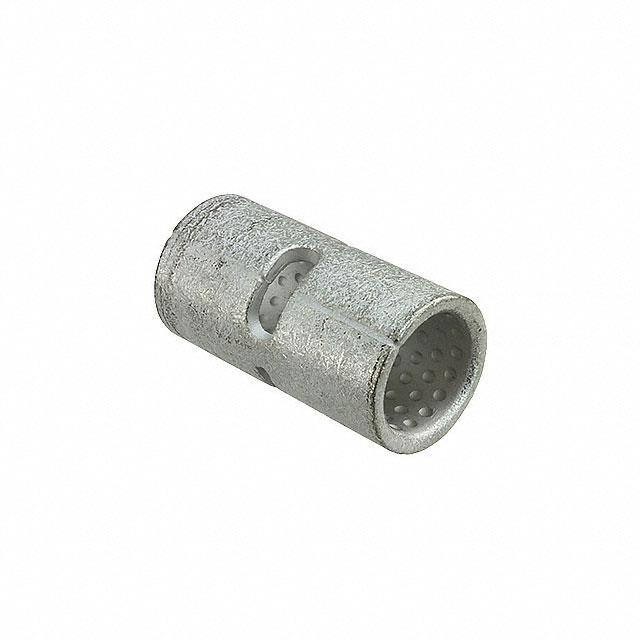

TE Connectivity Raychem Cable Protection 322282						Butt Splice Individual Openings Inline	Non-Insulated				Crimp			600 MCM	500 MCM	2
TE Connectivity Raychem Cable Protection 3222-00-340012																	Shielded	Backshell Heat Shrink Adapter
