ED3101 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 9POS SIDE ENTRY 5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Clamp Material - Plating [custom] | Pitch | Pitch | Mounting Type | Mating Orientation | Wire Termination | Color | Wire Gauge [Max] | Wire Gauge [Min] | Current | Positions Per Level | Features | Voltage | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

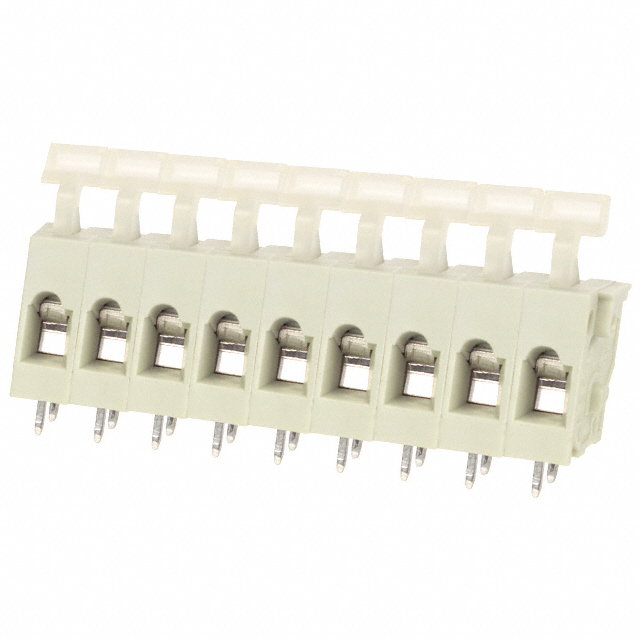

 On Shore Technology Inc. | -30 ░C | 105 ░C | Polyamide (PA) Nylon | Stainless Steel | 0.197 in | 5 mm | Through Hole | Horizontal with Board | Leg Spring Push-In Spring | Gray Slate | 28 AWG | 14 AWG | 16 A | 9 | Interlocking (Side) Lever Actuated | 300 VDC | 1 |

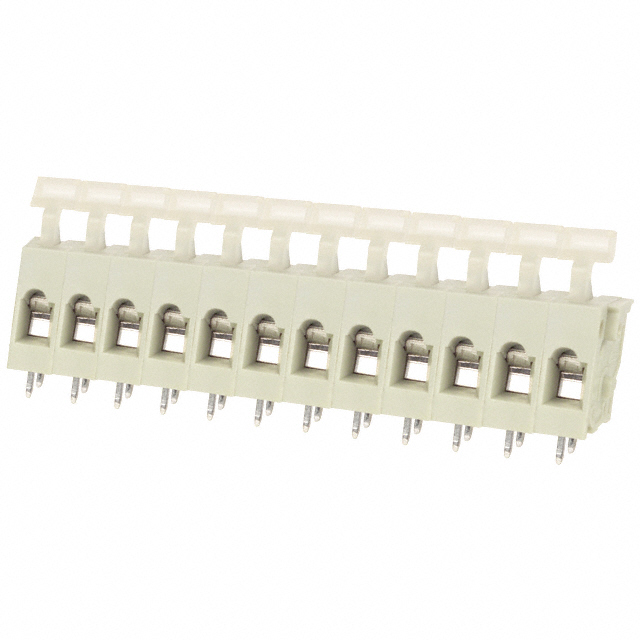

 On Shore Technology Inc. | -30 ░C | 105 ░C | Polyamide (PA) Nylon | Stainless Steel | 0.197 in | 5 mm | Through Hole | Horizontal with Board | Leg Spring Push-In Spring | Gray Slate | 28 AWG | 14 AWG | 16 A | 12 | Interlocking (Side) Lever Actuated | 300 VDC | 1 |

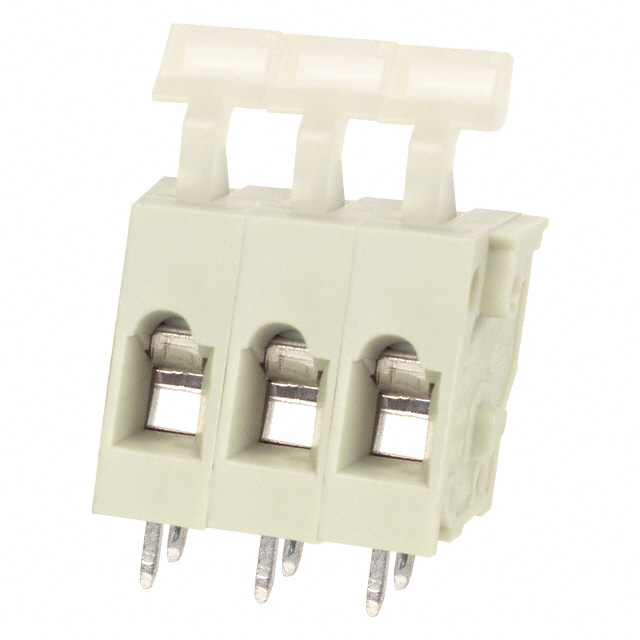

 On Shore Technology Inc. | -30 ░C | 105 ░C | Polyamide (PA) Nylon | Stainless Steel | 0.197 in | 5 mm | Through Hole | Horizontal with Board | Leg Spring Push-In Spring | Gray Slate | 28 AWG | 14 AWG | 16 A | 3 | Interlocking (Side) Lever Actuated | 300 VDC | 1 |
 On Shore Technology Inc. | -30 ░C | 105 ░C | Polyamide (PA) Nylon | Stainless Steel | 0.197 in | 5 mm | Through Hole | Horizontal with Board | Leg Spring Push-In Spring | Gray Slate | 28 AWG | 14 AWG | 16 A | 4 | Interlocking (Side) Lever Actuated | 300 VDC | 1 |
 On Shore Technology Inc. | -30 ░C | 105 ░C | Polyamide (PA) Nylon | Stainless Steel | 0.197 in | 5 mm | Through Hole | Horizontal with Board | Leg Spring Push-In Spring | Gray Slate | 28 AWG | 14 AWG | 16 A | 11 | Interlocking (Side) Lever Actuated | 300 VDC | 1 |
