DME-03 Series
Manufacturer: Adam Tech
Beta
⌘K

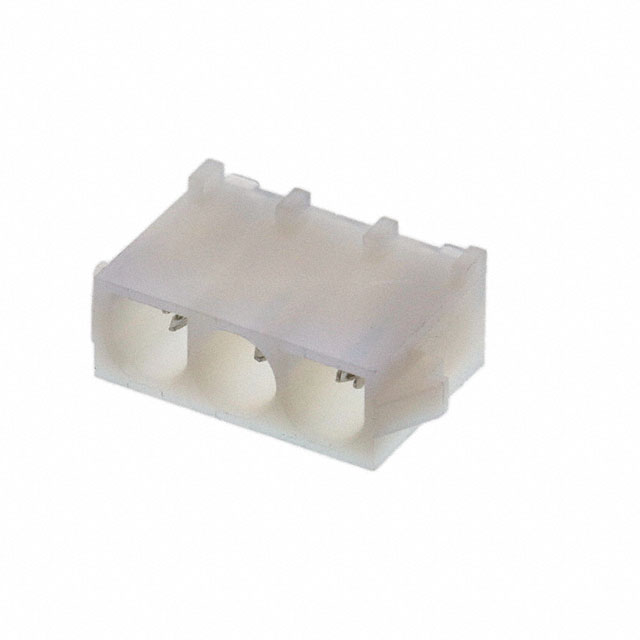

6.35MM PCB HEADER, 3 POSITION
| Part | Contact Shape | Contact Material | Insulation Material | Applications | Voltage Rating | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Termination | Mounting Type | Contact Type | Contact Finish - Post | Material Flammability Rating | Number of Rows | Connector Type | Fastening Type | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Circular | Brass | Nylon 6/6 Polyamide (PA66) | General Purpose | 600 VAC | Natural | 85 °C | -25 °C | All | 4.5 mm | 0.177 in | Solder | Through Hole | Female Socket | Tin | UL94 V-2 | 1 | Receptacle | Locking Ramp | 0.55 in | 13.97 mm | 6.35 mm | 0.25 in | 13 A |
