34117 Series

Catalog

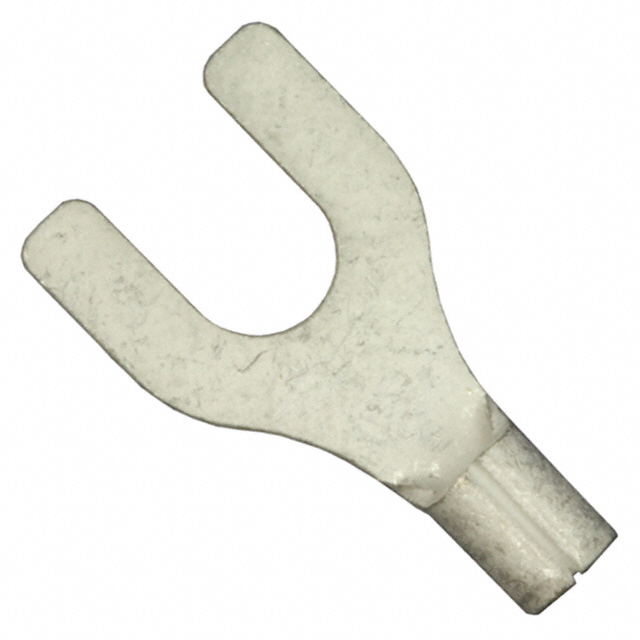

CONN SPADE TERM 16-22AWG #8

Part	Insulation	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Terminal Type	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Features	Contact Finish	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Mounting Type	Length - Termination [x]	Length - Termination [x]	Contact Material	Termination	Wire Gauge [Max]	Wire Gauge [Min]
TE Connectivity Raychem Cable Protection 2-34117-2	Non-Insulated	8 Stud	0.375 in	9.53 mm	Standard	0.171 in	4.34 mm	Brazed Seam Serrated Termination	Tin	7.92 mm	0.312 in	Free Hanging (In-Line)	0.181 in	4.6 mm	Copper	Crimp	22 AWG	16 AWG
TE Connectivity Raychem Cable Protection 8-34117-5	Non-Insulated	8 Stud	0.375 in	9.53 mm	Standard	0.171 in	4.34 mm	Brazed Seam Serrated Termination	Tin	7.92 mm	0.312 in	Free Hanging (In-Line)	0.181 in	4.6 mm	Copper	Crimp	22 AWG	16 AWG
