AAC10 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

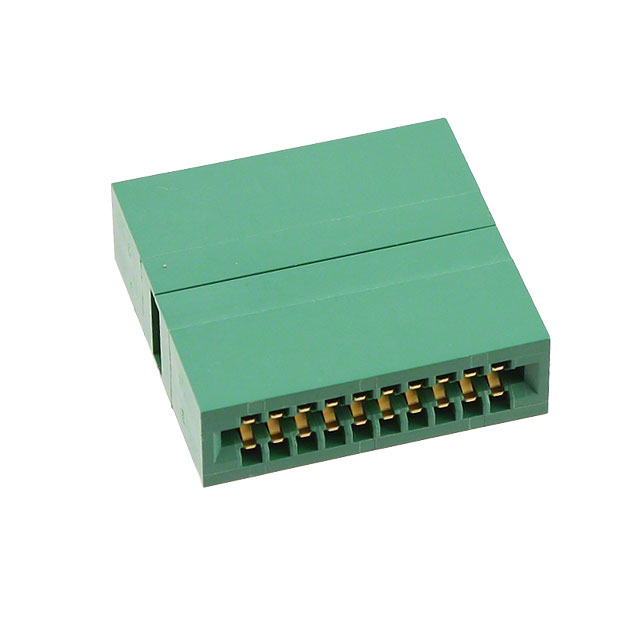

CONN EDGE ADAPT CARD-CARD 20POS
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Current Rating (Per Contact) | Contact Finish Thickness | Housing Material | Mounting Type | Adapter Type | Card Thickness | Contact Material | Contact Finish | Number of Positions | Flange Feature | Flange Feature Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | -65 °C | 150 °C | 3 A | 30 µin | Polyphenylene Sulfide PPS | Free Hanging (In-Line) | Card Slot to Card Slot | 0.062 in | Beryllium Copper | Gold | 20 | ||
 Sullins Connector Solutions | -65 °C | 150 °C | 3 A | 30 µin | Polyphenylene Sulfide PPS | Panel Mount | Card Slot to Card Slot | 0.062 in | Beryllium Copper | Gold | 20 | Top Opening Unthreaded | 0.125 in |
