SFW13R Series

Catalog

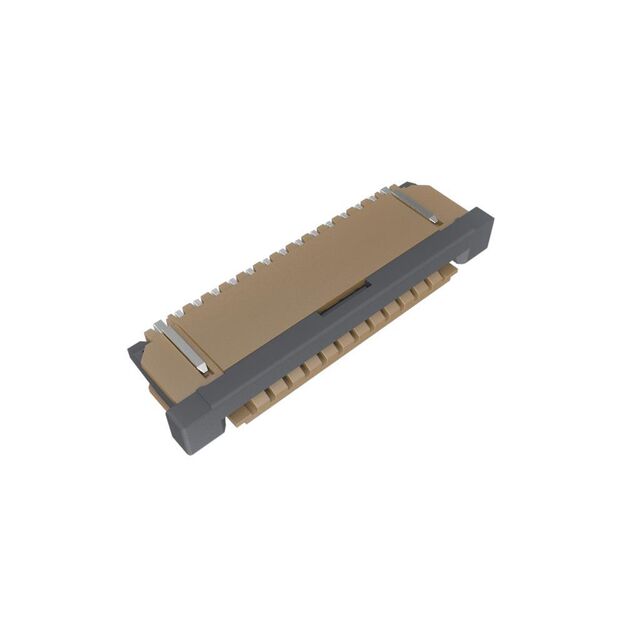

CONN FFC FPC TOP 13POS 1MM R/A

Part	Mating Cycles	Housing Color	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating	Cable End Type	Features	Termination	Housing Material	Contact Finish	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector/Contact Type	Actuator Material	Flat Flex Type	Mounting Type	Pitch	Pitch	Contact Material	Number of Positions	FFC, FCB Thickness	Actuator Color	Locking Feature	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) SFW13R-2STE1LF	20	Brown	0.106 in	2.7 mm	UL94 V-0	Straight	Solder Retention Zero Insertion Force (ZIF)	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Tin	100 V	-55 C	105 ░C	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC	Right Angle Surface Mount	1 mm	0.039 in	Phosphor Bronze	13	0.3 mm
Amphenol ICC (FCI) SFW13R-4STE1LF	20	Black	0.106 in	2.7 mm	UL94 V-0	Notched Tapered	Solder Retention Zero Insertion Force (ZIF)	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Tin	100 V	-55 C	105 ░C	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC	Right Angle Surface Mount	1 mm	0.039 in	Phosphor Bronze	13		Brown	Slide Lock	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW13R-3STE1LF	20	Black	0.106 in	2.7 mm	UL94 V-0	Straight	Solder Retention Zero Insertion Force (ZIF)	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Tin	100 V	-55 C	105 ░C	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC	Right Angle Surface Mount	1 mm	0.039 in	Phosphor Bronze	13	0.3 mm
Amphenol ICC (FCI) SFW13R-3STAE1LF	20	Black	0.106 in	2.7 mm	UL94 V-0	Tapered	Solder Retention Zero Insertion Force (ZIF)	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Gold	100 V	-55 C	105 ░C	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	FPC	Right Angle Surface Mount	1 mm	0.039 in	Phosphor Bronze	13	0.3 mm	Black	Slide Lock
Amphenol ICC (FCI) SFW13R-4STAE5LF		Black	0.106 in	2.7 mm	UL94 V-0	Tabbed		Solder	Polyphenylene Sulfide (PPS) Glass Filled	Gold				Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	FPC	Right Angle Surface Mount	1 mm	0.039 in	Phosphor Bronze	13	0.33 mm	Brown	Slide Lock
Amphenol ICC (FCI) SFW13R-2STAE1LF	20	Brown	0.106 in	2.7 mm	UL94 V-0	Straight		Solder	Polyphenylene Sulfide (PPS) Glass Filled	Gold	100 V	-55 C	105 ░C	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	FPC	Right Angle Surface Mount	1 mm	0.039 in	Phosphor Bronze	13	0.3 mm
Amphenol ICC (FCI) SFW13R-3STAE5LF		Black	0.106 in	2.7 mm	UL94 V-0	Tabbed		Solder	Polyphenylene Sulfide (PPS) Glass Filled	Gold				Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	FPC	Right Angle Surface Mount	1 mm	0.039 in	Phosphor Bronze	13	0.33 mm	Brown	Slide Lock
Amphenol ICC (FCI) SFW13R-2STGE1LF	20	Brown	0.106 in	2.7 mm	UL94 V-0	Tapered		Solder	Polyphenylene Sulfide (PPS) Glass Filled	Gold	100 V	-55 C	105 ░C	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	FPC	Right Angle Surface Mount	1 mm	0.039 in	Phosphor Bronze	13	0.33 mm	Black	Slide Lock
Amphenol ICC (FCI) SFW13R-4STAE1LF	20	Black	0.106 in	2.7 mm	UL94 V-0	Straight	Solder Retention Zero Insertion Force (ZIF)	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Gold	100 V	-55 C	105 ░C	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	FPC	Right Angle Surface Mount	1 mm	0.039 in	Phosphor Bronze	13	0.3 mm
Amphenol ICC (FCI) SFW13R-1STAE1LF	20	Brown	0.106 in	2.7 mm	UL94 V-0	Straight Tapered	Solder Retention Zero Insertion Force (ZIF)	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Gold	100 V	-55 C	105 ░C	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	FPC	Right Angle Surface Mount	1 mm	0.039 in	Phosphor Bronze	13		Black	Slide Lock	0.3 mm	0.33 mm
