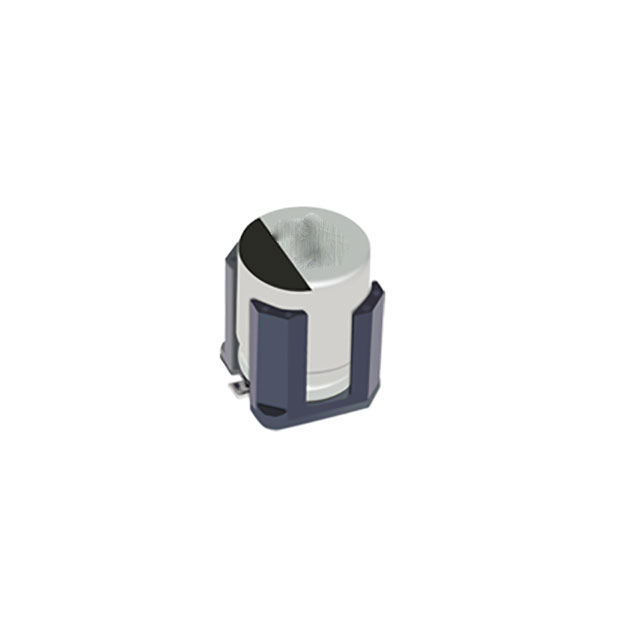

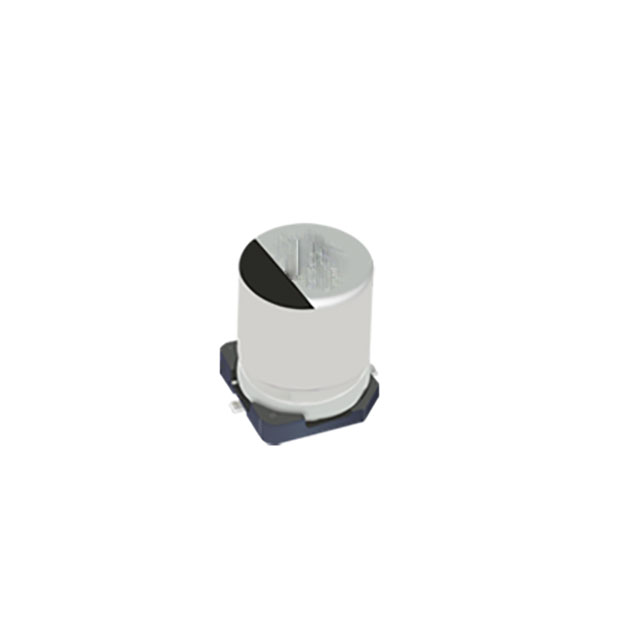

EEH-ZT Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM HYB 56UF 20% 63V SMD

Part	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Package / Case	ESR (Equivalent Series Resistance)	Applications	Ratings	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Type	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]
Panasonic Industrial Automation Sales EEH-ZT1J560V	420 mA	2.8 A	10.3 mm	0.406 in	10.3 mm	0.406 "	4000 Hrs	-55 °C	125 °C	56 µF	Radial Can - SMD	25 mOhm	Automotive	AEC-Q200	63 V	0.425 in	10.8 mm	20 %	Hybrid	Surface Mount	10 mm	0.394 in
Panasonic Industrial Automation Sales EEH-ZT1H680P	405 mA	2.7 A	8.3 mm	0.327 "	8.3 mm	0.327 in	4000 Hrs	-55 °C	125 °C	68 µF	Radial Can - SMD	25 mOhm	Automotive	AEC-Q200	50 VDC	0.413 in	10.5 mm	20 %	Hybrid	Surface Mount	8 mm	0.315 "
Panasonic Industrial Automation Sales EEH-ZT1J470V	360 mA	2.4 A	8.3 mm	0.327 "	8.3 mm	0.327 in	4000 Hrs	-55 °C	125 °C	47 µF	Radial Can - SMD	32 mOhms	Automotive	AEC-Q200	63 V	0.425 in	10.8 mm	20 %	Hybrid	Surface Mount	8 mm	0.315 "
Panasonic Industrial Automation Sales EEH-ZT1J560P	420 mA	2.8 A	10.3 mm	0.406 in	10.3 mm	0.406 "	4000 Hrs	-55 °C	125 °C	56 µF	Radial Can - SMD	25 mOhm	Automotive	AEC-Q200	63 V	0.413 in	10.5 mm	20 %	Hybrid	Surface Mount	10 mm	0.394 in
Panasonic Industrial Automation Sales EEH-ZT1H101P	435 mA	2.9 A	10.3 mm	0.406 in	10.3 mm	0.406 "	4000 Hrs	-55 °C	125 °C	100 µF	Radial Can - SMD	23 mOhm	Automotive	AEC-Q200	50 VDC	0.413 in	10.5 mm	20 %	Hybrid	Surface Mount	10 mm	0.394 in
Panasonic Industrial Automation Sales EEH-ZT1J330V	240 mA	2.4 A	8.3 mm	0.327 "	8.3 mm	0.327 in	4000 Hrs	-55 °C	125 °C	33 ÁF	Radial Can - SMD	32 mOhms	Automotive	AEC-Q200	63 V	0.425 in	10.8 mm	20 %	Hybrid	Surface Mount	8 mm	0.315 "
Panasonic Industrial Automation Sales EEH-ZT1V271V	525 mA	3.5 A	10.3 mm	0.406 in	10.3 mm	0.406 "	4000 Hrs	-55 °C	125 °C	270 µF	Radial Can - SMD	16 mOhm	Automotive	AEC-Q200	35 V	0.425 in	10.8 mm	20 %	Hybrid	Surface Mount	10 mm	0.394 in
Panasonic Industrial Automation Sales EEH-ZT1J680P	420 mA	2.8 A	10.3 mm	0.406 in	10.3 mm	0.406 "	4000 Hrs	-55 °C	125 °C	68 µF	Radial Can - SMD	25 mOhm	Automotive	AEC-Q200	63 V	0.413 in	10.5 mm	20 %	Hybrid	Surface Mount	10 mm	0.394 in
Panasonic Industrial Automation Sales EEH-ZT1E331P	525 mA	3.5 A	10.3 mm	0.406 in	10.3 mm	0.406 "	4000 Hrs	-55 °C	125 °C	330 µF	Radial Can - SMD	16 mOhm	Automotive	AEC-Q200	25 VDC	0.413 in	10.5 mm	20 %	Hybrid	Surface Mount	10 mm	0.394 in
