053290 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 13POS 2MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shrouding	Voltage Rating	Contact Shape	Current Rating (Amps)	Termination	Contact Material	Contact Type	Insulation Height	Insulation Height	Number of Positions Loaded	Mounting Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Contact Length - Post	Contact Length - Post [x]	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Connector Type

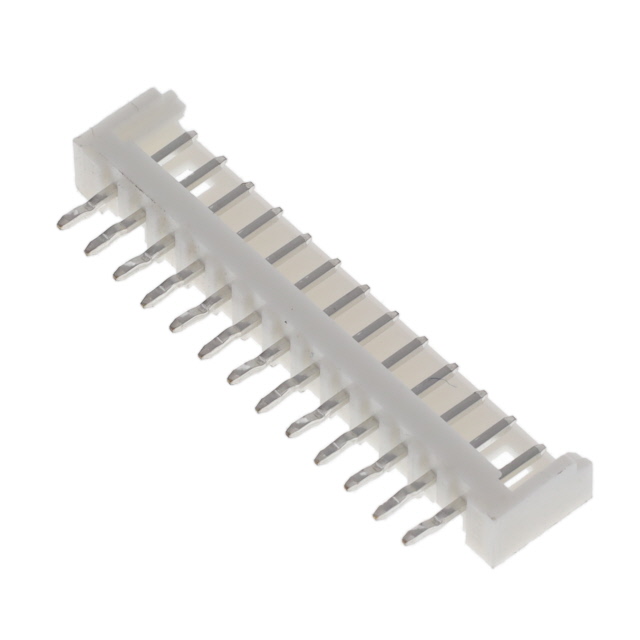

Molex 0532901380	-40 °C	105 ░C	13	Shrouded - 3 Wall	125 VDC	Square	1.5 A	Kinked Pin Solder	Brass	Male Pin	6 mm	0.236 in	All	Through Hole	Natural	0.13 in	3.3 mm	Detent Lock	Tin	8.51 mm	0.335 in	UL94 V-0	3.2 mm	0.126 in	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	1	Header
Molex 0532900310				Shrouded - 3 Wall		Square		Kinked Pin Solder	Brass	Male Pin	6 mm	0.236 in	All	Through Hole		0.13 in	3.3 mm	Detent Lock	Tin	8.51 mm	0.335 in	UL94 V-0	3.2 mm	0.126 in	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	1	Header
Molex 0532900710			7	Shrouded - 3 Wall		Square		Kinked Pin Solder	Brass	Male Pin	6 mm	0.236 in	All	Through Hole		0.13 in	3.3 mm	Detent Lock	Tin	8.51 mm	0.335 in	UL94 V-0	3.2 mm	0.126 in	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	1	Header
Molex 0532901180			11	Shrouded - 3 Wall		Square		Kinked Pin Solder	Brass	Male Pin	6 mm	0.236 in	All	Through Hole	Natural	0.13 in	3.3 mm	Detent Lock	Tin	8.51 mm	0.335 in	UL94 V-0	3.2 mm	0.126 in	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	1	Header
Molex 0532900780			7	Shrouded - 3 Wall		Square		Kinked Pin Solder	Brass	Male Pin	6 mm	0.236 in	All	Through Hole	Natural	0.13 in	3.3 mm	Detent Lock	Tin	8.51 mm	0.335 in	UL94 V-0	3.2 mm	0.126 in	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	1	Header
Molex 0532900510				Shrouded - 3 Wall		Square		Kinked Pin Solder	Brass	Male Pin	6 mm	0.236 in	All	Through Hole		0.13 in	3.3 mm	Detent Lock	Tin	8.51 mm	0.335 in	UL94 V-0	3.2 mm	0.126 in	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	1	Header
Molex 0532901210			12	Shrouded - 3 Wall		Square		Kinked Pin Solder	Brass	Male Pin	6 mm	0.236 in	All	Through Hole		0.13 in	3.3 mm	Detent Lock	Tin	8.51 mm	0.335 in	UL94 V-0	3.2 mm	0.126 in	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	1	Header

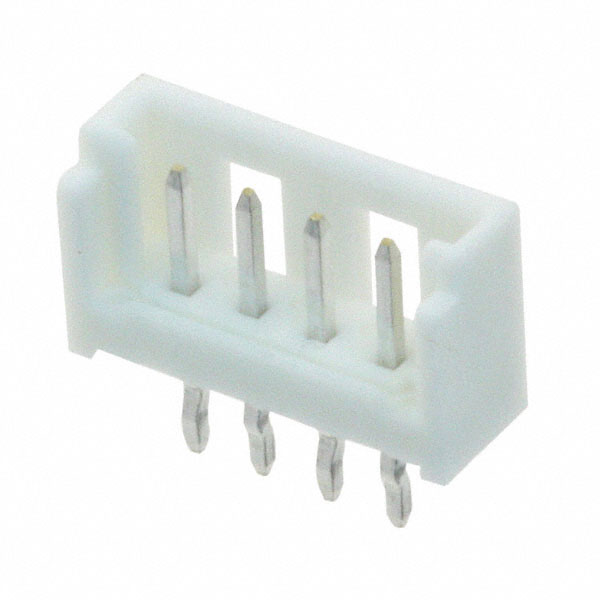

Molex 0532900480			4	Shrouded - 3 Wall		Square		Kinked Pin Solder	Brass	Male Pin	6 mm	0.236 in	All	Through Hole	Natural	0.13 in	3.3 mm	Detent Lock	Tin	8.51 mm	0.335 in	UL94 V-0	3.2 mm	0.126 in	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	1	Header
Molex 0532900410			4	Shrouded - 3 Wall		Square		Kinked Pin Solder	Brass	Male Pin	6 mm	0.236 in	All	Through Hole		0.13 in	3.3 mm	Detent Lock	Tin	8.51 mm	0.335 in	UL94 V-0	3.2 mm	0.126 in	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	1	Header
Molex 0532901410			14	Shrouded - 3 Wall		Square		Kinked Pin Solder	Brass	Male Pin	6 mm	0.236 in	All	Through Hole		0.13 in	3.3 mm	Detent Lock	Tin	8.51 mm	0.335 in	UL94 V-0	3.2 mm	0.126 in	Polybutylene Terephthalate (PBT) Glass Filled	0.079 in	2 mm	1	Header
