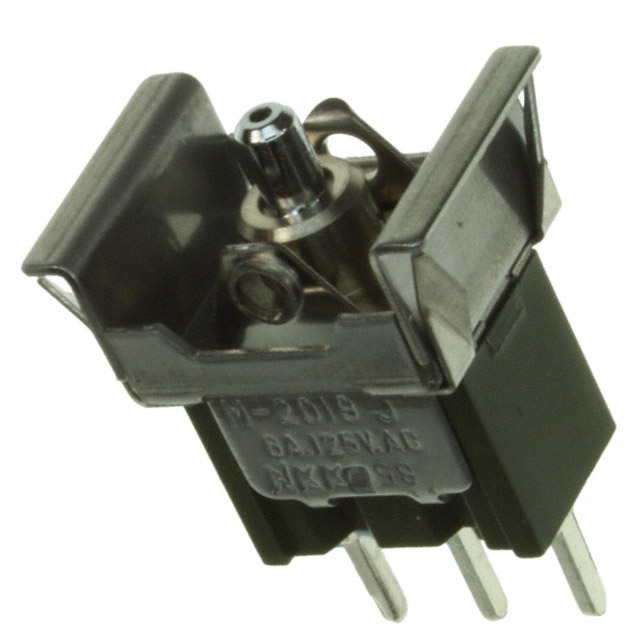

M2019TJ Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPDT 6A 125V
| Part | Mechanical Life | Electrical Life | Voltage Rating - DC | Approval Agency | Features | Switch Function | Termination Style | Mounting Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Actuator Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Voltage Rating - AC | Actuator Marking | Illumination Voltage (Nominal) | Color - Actuator/Cap | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 25000 Steps | 30 V | CSA UL | Epoxy Sealed Terminals | On-Off-Mom | PC Pin | Panel Mount Snap-In | SPDT | 85 °C | -30 ░C | 3 A 6 A | Actuator Arm Cap Required | 15.9 mm | 12.5 mm | 125 V | Varies by Cap | |||
 NKK Switches | 50000 Cycles | 25000 Steps | 30 V | CSA UL | Epoxy Sealed Terminals | On-Off-Mom | PC Pin | Panel Mount Snap-In | SPDT | 85 °C | -30 ░C | 3 A 6 A | Concave (Standard V) - Illuminated | 15.9 mm | 12.5 mm | 125 V | No Marking | 2.1 VDC | Black | Green LED |
NKK Switches | 50000 Cycles | 25000 Steps | 30 V | CSA UL | Epoxy Sealed Terminals | On-Off-Mom | Solder Lug | Panel Mount Snap-In | SPDT | 85 °C | -30 ░C | 3 A 6 A | Paddle | 15.9 mm | 12.5 mm | 125 V | No Marking | Black | ||
NKK Switches | 50000 Cycles | 25000 Steps | 30 V | CSA UL | Epoxy Sealed Terminals | On-Off-Mom | PC Pin | Panel Mount Snap-In | SPDT | 85 °C | -30 ░C | 3 A 6 A | Concave | 15.9 mm | 12.5 mm | 125 V | No Marking | Black | ||
NKK Switches | 50000 Cycles | 25000 Steps | 30 V | CSA UL | Epoxy Sealed Terminals | On-Off-Mom | Solder Lug | Panel Mount Snap-In | SPDT | 85 °C | -30 ░C | 3 A 6 A | Concave | 15.9 mm | 12.5 mm | 125 V | No Marking | Red | ||
NKK Switches | 50000 Cycles | 25000 Steps | 30 V | CSA UL | Epoxy Sealed Terminals | On-Off-Mom | Solder Lug | Panel Mount Snap-In | SPDT | 85 °C | -30 ░C | 3 A 6 A | Concave | 15.9 mm | 12.5 mm | 125 V | No Marking | Blue | ||
NKK Switches | 50000 Cycles | 25000 Steps | 30 V | CSA UL | Epoxy Sealed Terminals | On-Off-Mom | Solder Lug | Panel Mount Snap-In | SPDT | 85 °C | -30 ░C | 3 A 6 A | Concave | 15.9 mm | 12.5 mm | 125 V | No Marking | White | ||
 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | CSA UL | Epoxy Sealed Terminals | On-Off-Mom | Solder Lug | Panel Mount Snap-In | SPDT | 85 °C | -30 ░C | 0.4 VA | Concave (Standard V) - Illuminated | 15.9 mm | 12.5 mm | 28 V | No Marking | 2.1 VDC | Red | Green LED |
NKK Switches | 50000 Cycles | 25000 Steps | 30 V | CSA UL | Epoxy Sealed Terminals | On-Off-Mom | Solder Lug | Panel Mount Snap-In | SPDT | 85 °C | -30 ░C | 3 A 6 A | Concave | 15.9 mm | 12.5 mm | 125 V | No Marking | Green | ||
NKK Switches | 50000 Cycles | 25000 Steps | 30 V | CSA UL | Epoxy Sealed Terminals | On-Off-Mom | Solder Lug | Panel Mount Snap-In | SPDT | 85 °C | -30 ░C | 3 A 6 A | Paddle | 15.9 mm | 12.5 mm | 125 V | No Marking | White |
