R1G280 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

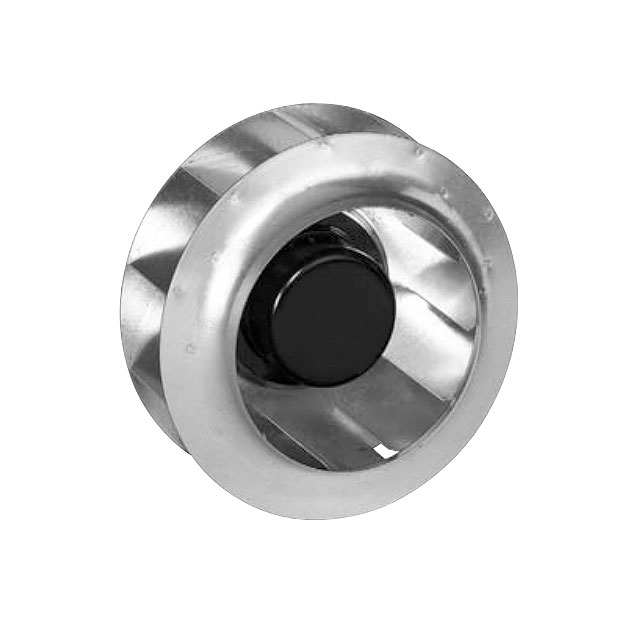

FAN BLOWER, IP42, MOTORIZED IMPELLER, 24 VDC, DC, 281 MM, 125 MM, 1030.01 CFM
| Part | Material - Blade | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Power (Watts) | Features | Size / Dimension [diameter] | Size / Dimension | Voltage - Rated | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Bearing Type | Termination | Approval Agency | Width [y] | RPM | Fan Type | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Steel | Aluminum | 16 VDC | 28 V | 4.6 A | 95 W | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 281 mm | Round | 24 VDC | IP42 | -25 °C | 60 °C | Ball | 4 Wire Leads with Splice Terminals | CSA EAC UL | 125 mm | 1710 RPM | Motorized Impellers | 71 dB(A) |
