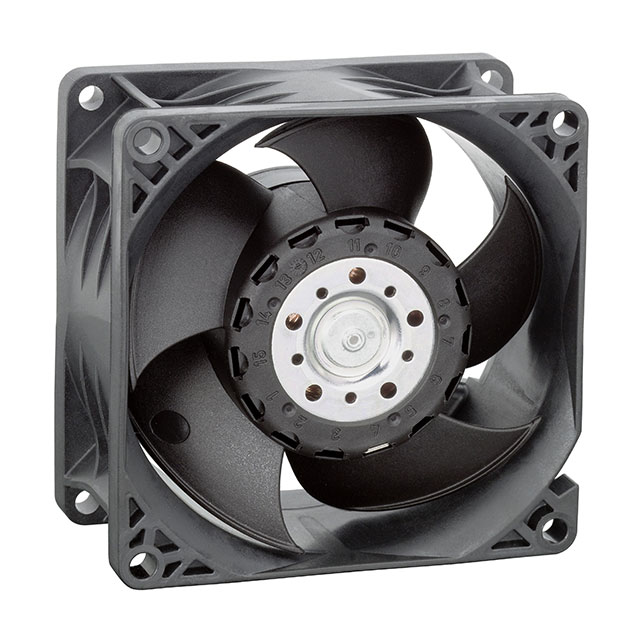

8212J Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

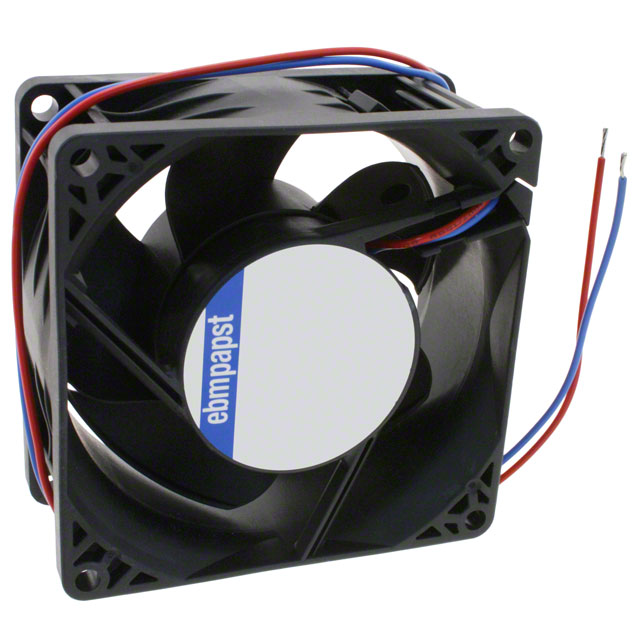

FAN AXIAL 80X38MM 12VDC WIRE
| Part | Lifetime @ Temp. | Material - Blade | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | Fan Type | RPM | Power (Watts) | Termination | Bearing Type | Width [y] | Voltage - Rated | Size / Dimension [z] | Size / Dimension [x] | Noise | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 55000 Hrs | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 13.8 VDC | 6 VDC | 3.14 mł/min | 112 CFM | -20 ░C | 70 °C | 0.441 lb | 200.03 g | Tubeaxial | 12000 RPM | 25 W | 2 Wire Leads | Ball | 38 mm | 12 VDC | 80 mm | 80 mm | ||
 ebm-papst Inc. | 40 °C 50000 Hrs | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 13.8 VDC | 6 VDC | 3.66 m³/min | 130.7 CFM | -20 ░C | 70 °C | Tubeaxial | 14000 RPM | 39 W | 3 Wire Leads | Ball | 38 mm | 12 VDC | 80 mm | 80 mm | 71 dB(A) | Speed Sensor (Tach) | ||
ebm-papst Inc. | 55000 Hrs | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 13.8 VDC | 6 VDC | 3.13 m³/min | 111.8 CFM | -20 ░C | 70 °C | Tubeaxial | 12000 RPM | 26 W | 3 Wire Leads | Ball | 38 mm | 12 VDC | 80 mm | 80 mm | Speed Sensor (Tach) |
