MT9V024 Series

CMOS Image Sensor, Digital, Global Shutter,VGA, 1/3"

Catalog

CMOS Image Sensor, Digital, Global Shutter,VGA, 1/3"

Part	Active Pixel Array [y]	Active Pixel Array [x]	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Frames per Second	Type	Grade	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Pixel Size [x]	Pixel Size [y]

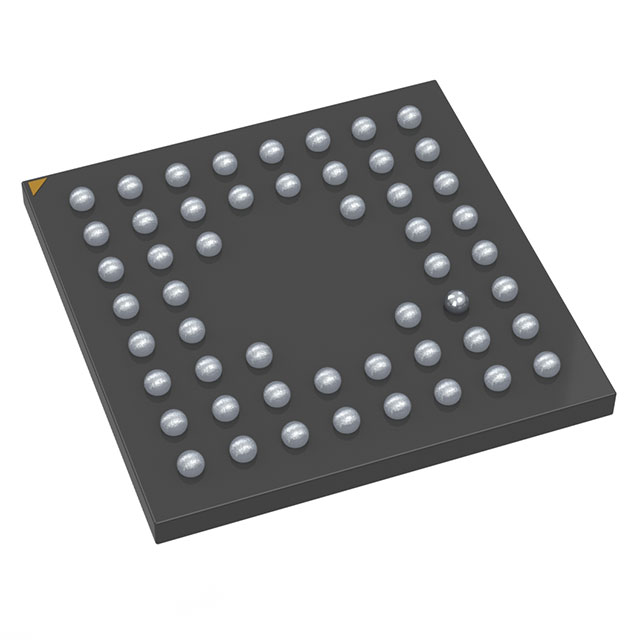

ON Semiconductor MT9V024IA7XTM-TR	480	752	52-IBGA (9x9)	3.6 V	3 V	52-LBGA	60	CMOS with Processor	Automotive	AEC-Q100	-40 °C	105 ░C	6 µm	6 µm
ON Semiconductor MT9V024IA7XTC-DP	480	752	52-IBGA (9x9)	3.6 V	3 V	52-LBGA	60	CMOS with Processor	Automotive	AEC-Q100	-40 °C	105 ░C	6 µm	6 µm
ON Semiconductor MT9V024IA7XTC-DR1	480	752	52-IBGA (9x9)	3.6 V	3 V	52-LBGA Module	60	CMOS			-40 °C	105 C	6 µm	6 µm
ON Semiconductor MT9V024IA7XTM-DP1	480	752		3.6 V	3 V		60	CMOS			-40 °C	105 C	6 µm	6 µm

Catalog

CMOS Image Sensor, Digital, Global Shutter,VGA, 1/3"

Key Features

• High Dynamic Range

Description

The MT9V024 6um global shutter HDR pixel technology uniquely allows automotive cameras to "freeze" fast moving objects, and capture all scene detail under extreme lighting conditions. The MT9V024 enhanced NIR pixel process provides excellent image quality in very low-light night conditions.
