56S107 Series
Manufacturer: Rosenberger
Beta
⌘K

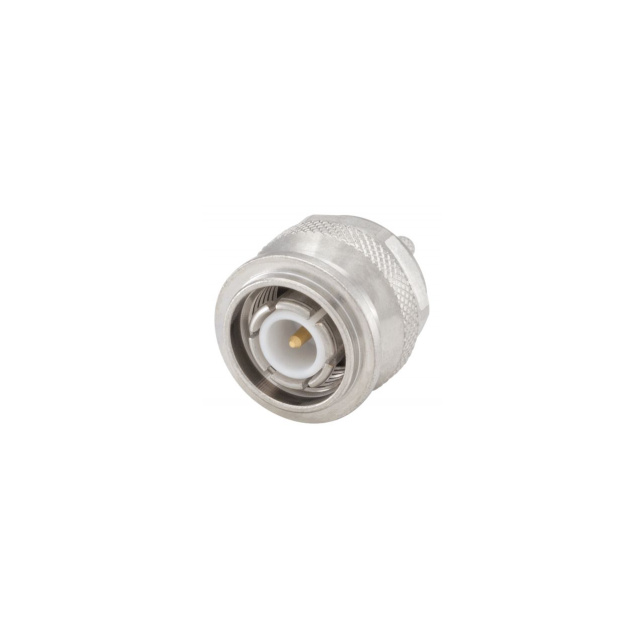

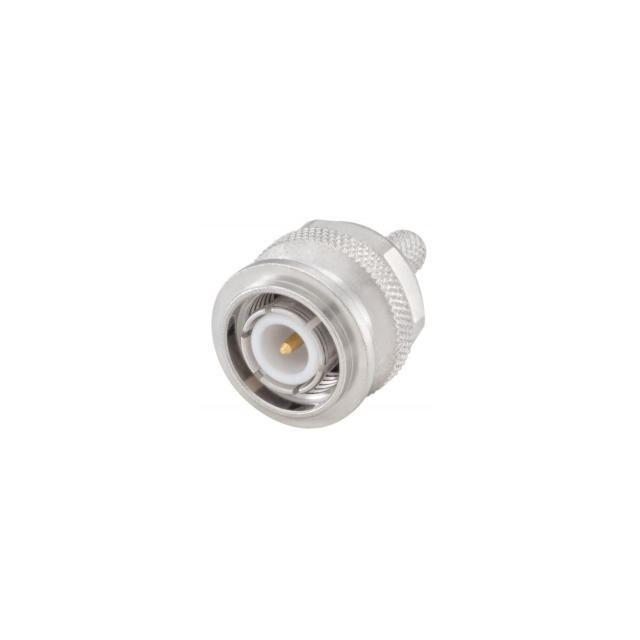

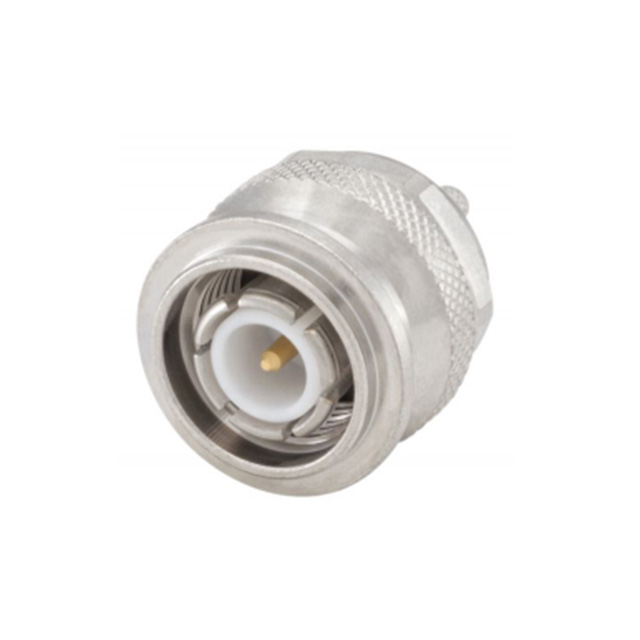

TNC STRAIGHT PLUG
| Part | Dielectric Material | Voltage Rating | Center Contact Plating | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Housing Color | Cable Group | Frequency - Max [Max] | Contact Termination | Connector Type | Impedance | Fastening Type | Number of Ports | Mounting Type | Center Contact Material | Connector Style | Shield Termination | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | 500 V | Gold | 500 | 85 °C | -45 °C | Brass | White Bronze | Silver | RG-316 | 10 GHz | Crimp | Plug Male Pin | 50 Ohms | Threaded | 1 | Free Hanging (In-Line) | Bronze | TNC | Crimp | |
 Rosenberger | Polytetrafluoroethylene (PTFE) | 500 V | Gold | 500 | 165 °C | -65 ░C | Brass | White Bronze | Silver | 141 RG-58C | 10 GHz | Crimp | Plug Male Pin | 50 Ohms | Threaded | 1 | Free Hanging (In-Line) | Brass | TNC | Crimp | 1 Connector 1 Contact 1 Ferrule |
 Rosenberger | Polytetrafluoroethylene (PTFE) | 500 V | Gold | 500 | 85 °C | -45 °C | Brass | White Bronze | Silver | 188A 316 RG-174A | 10 GHz | Crimp | Plug Male Pin | 50 Ohms | Threaded | 1 | Free Hanging (In-Line) | Bronze | TNC | Crimp | 1 Connector 1 Contact 1 Ferrule |
