738W-C Series
Manufacturer: Qualtek
Beta
⌘K

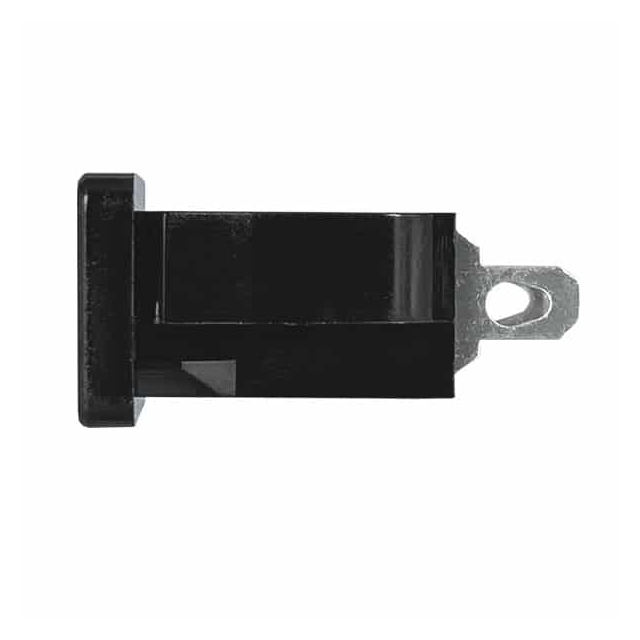

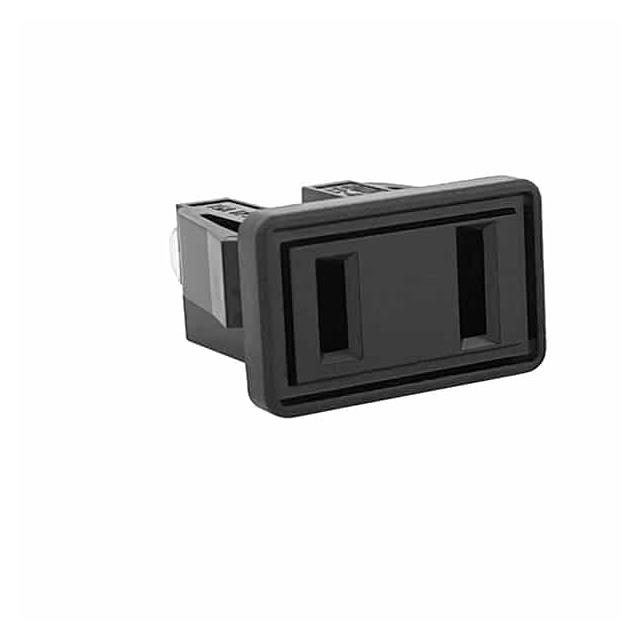

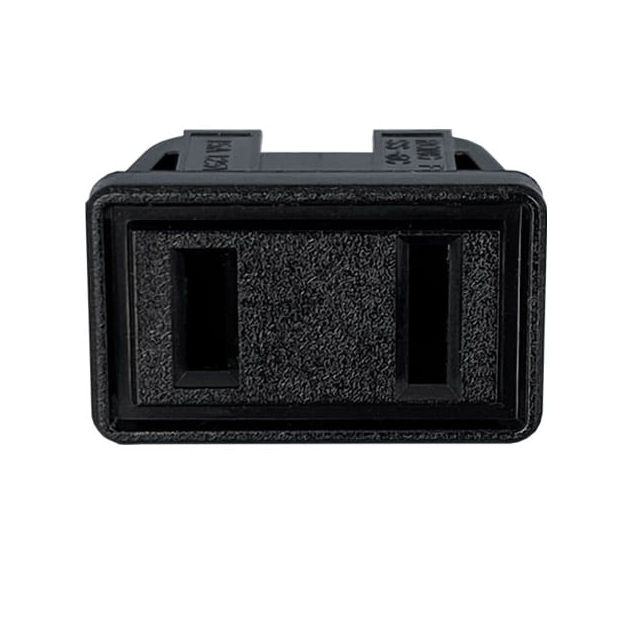

PWR ENT RCPT NEMA1-15 PANEL QC
| Part | Voltage Rating | Connector Style | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Approval Agency | Termination | Termination | Termination | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 125 VAC | NEMA 1-15R | 0.039 in | 1.8 mm | 0.071 " | 1 mm | CSA UL | 0.189 " | 4.8 mm | Quick Connect | 15 A | 12.2 mm | 22.2 mm | Panel Mount Snap-In | 2 | Receptacle Female Sockets |
 Qualtek | 125 VAC | NEMA 1-15R | 0.031 " | 2 mm | 0.079 " | 0.79 mm | CSA UL | 0.189 " | 4.8 mm | Quick Connect | 15 A | 12.1 mm | 22.1 mm | Panel Mount Snap-In | 2 | Receptacle Female Sockets |
